Module Communications Network System

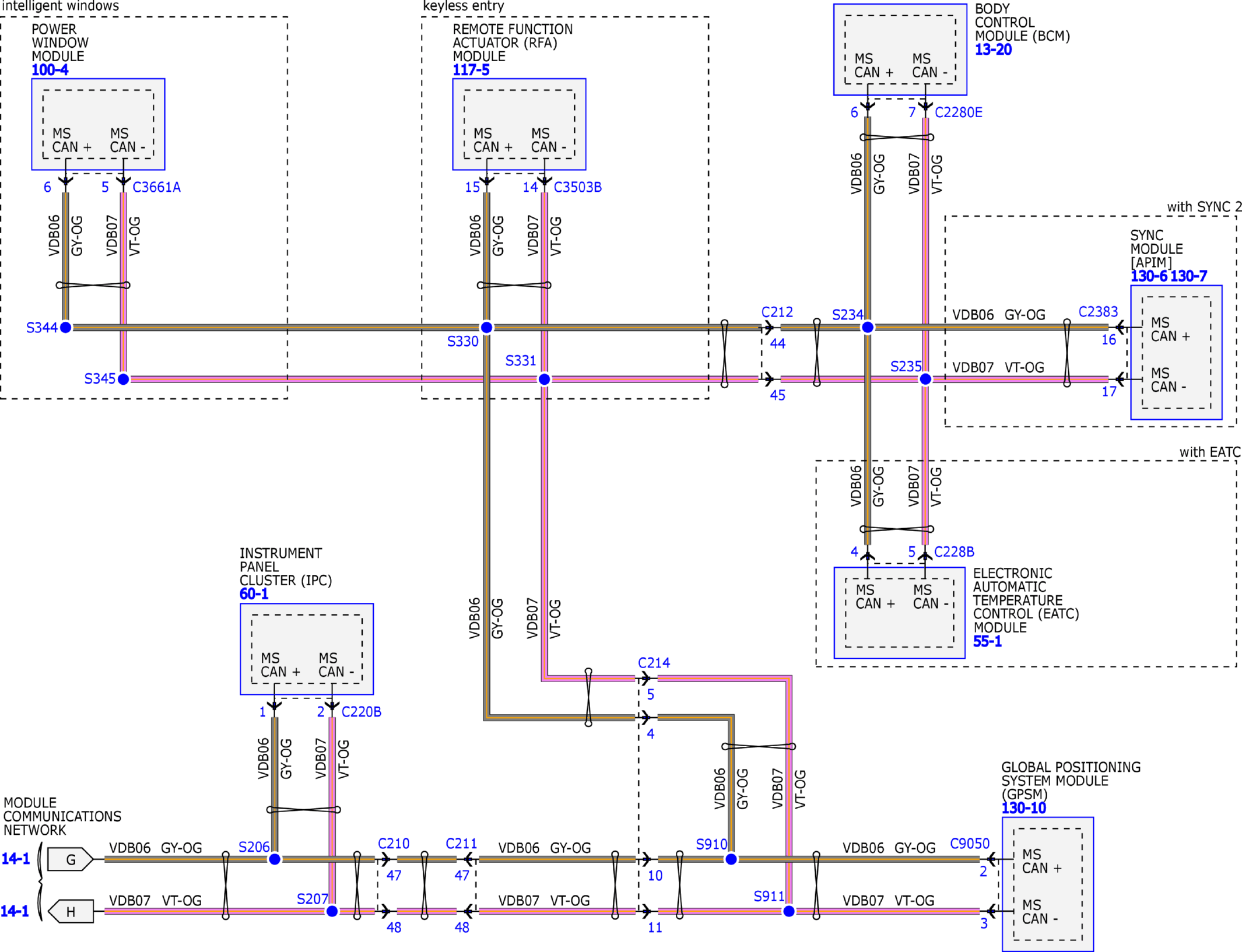

Fig 1: Module Communications Network System Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR COMPANY

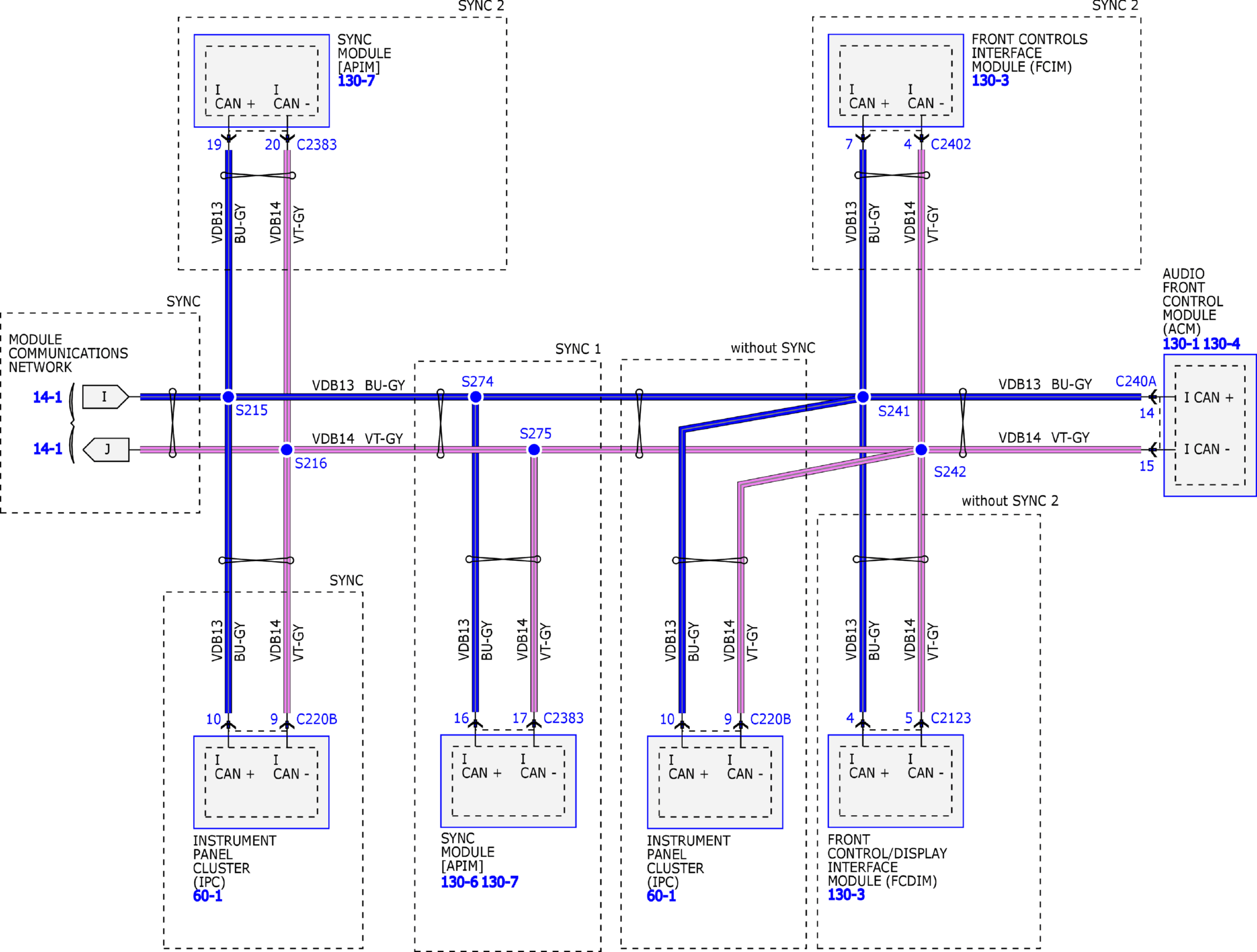

Fig 2: Module Communications Network System Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR COMPANY

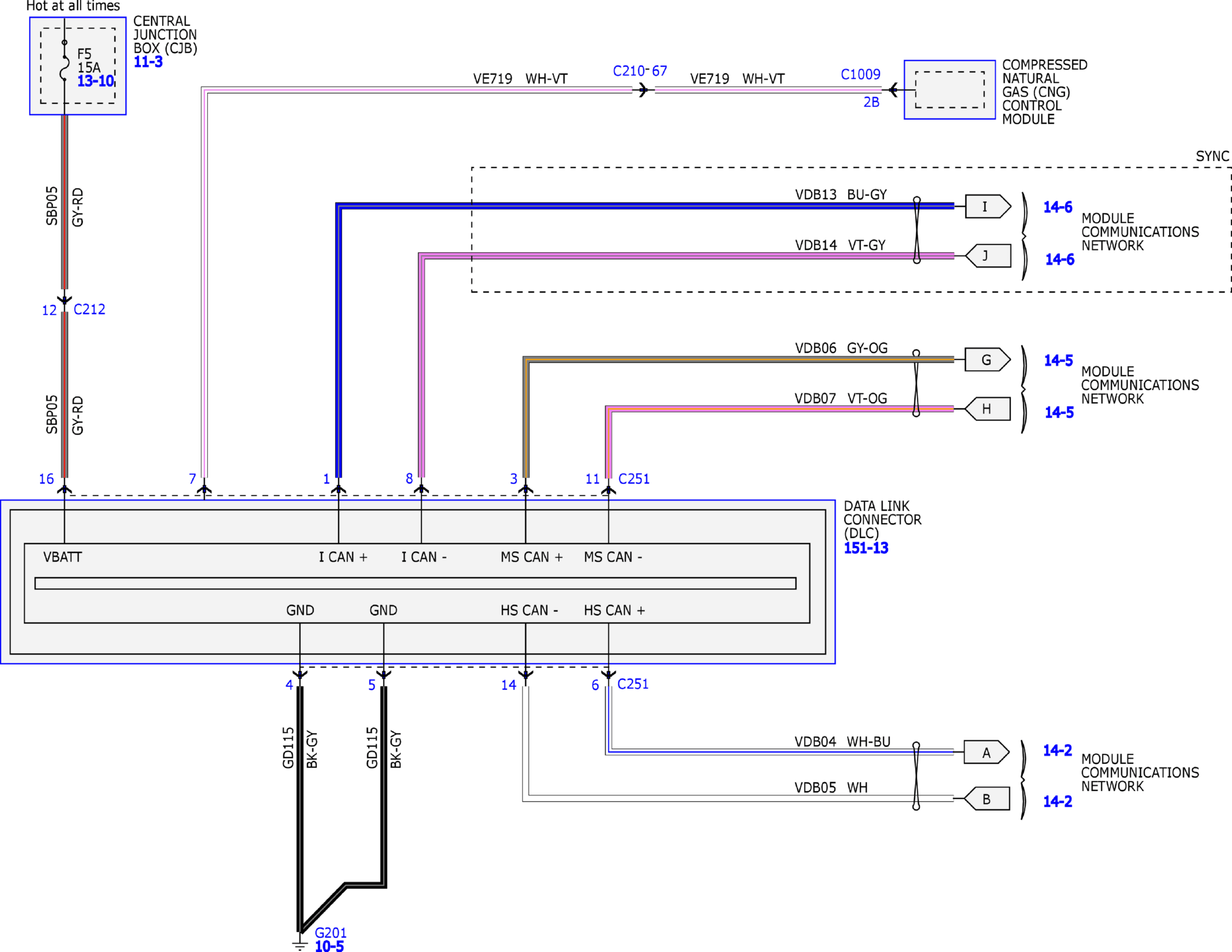

Fig 3: Module Communications Network System Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR COMPANY

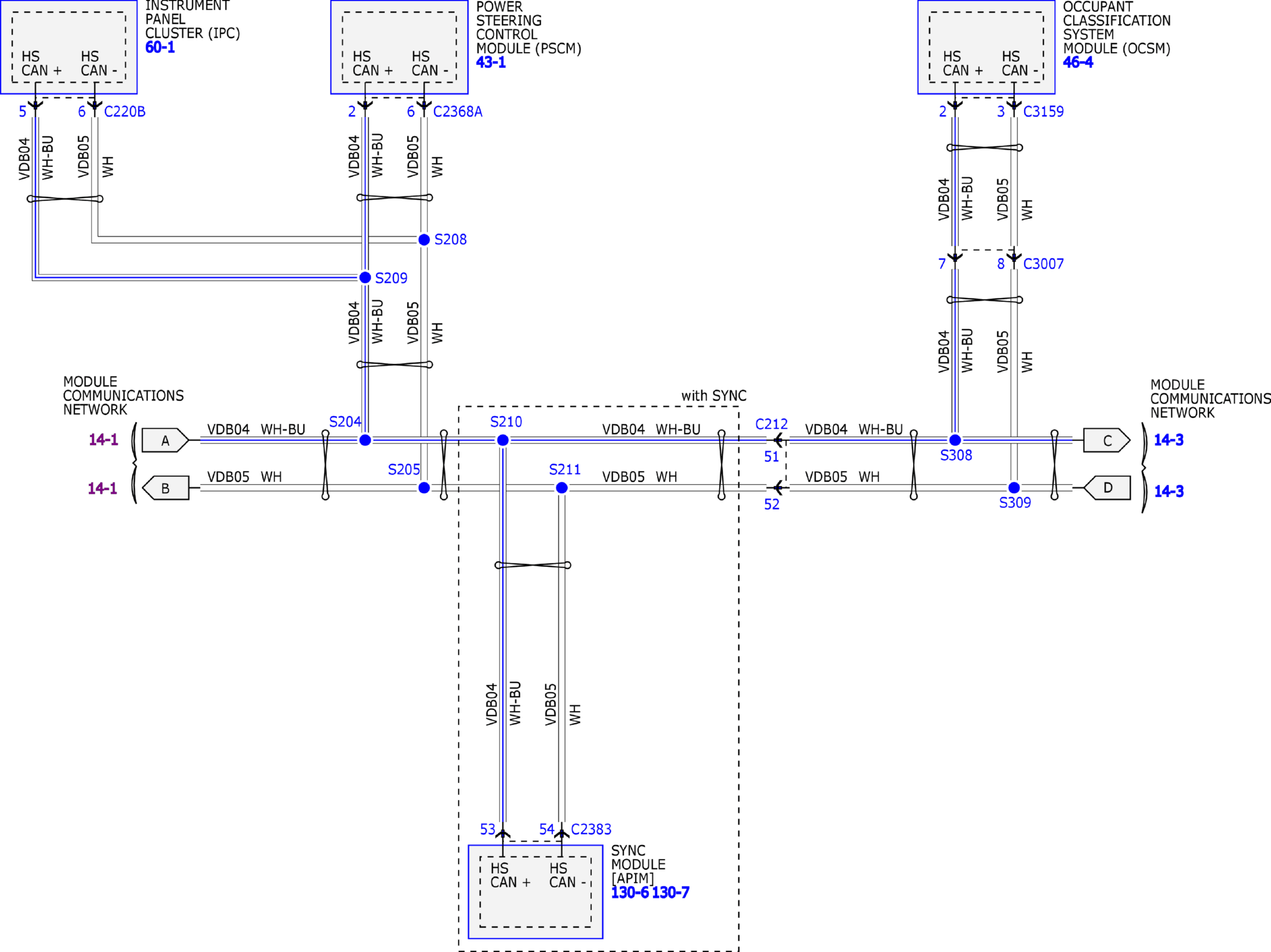

Fig 4: Module Communications Network System Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR COMPANY

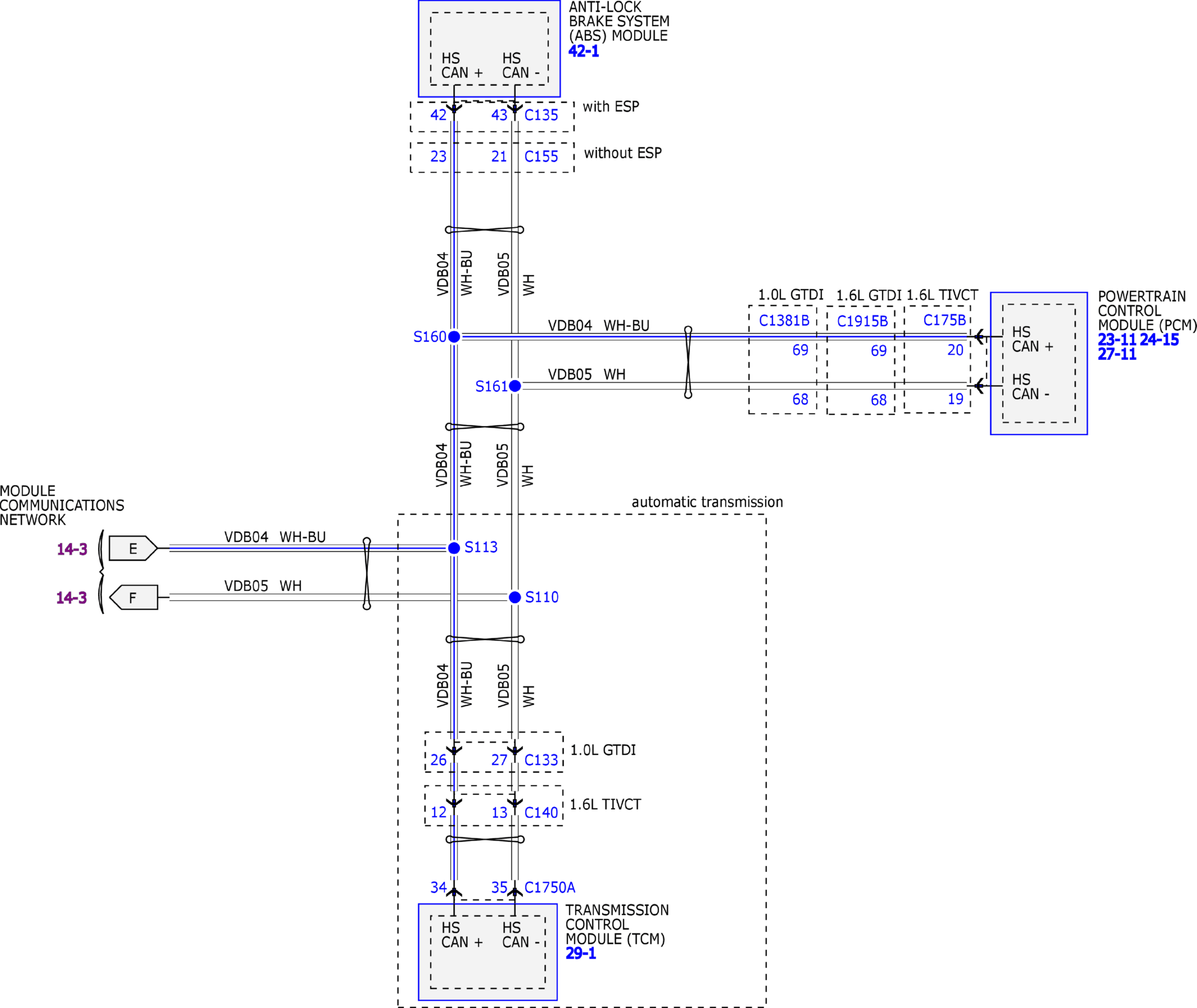

Fig 5: Module Communications Network System Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR COMPANY

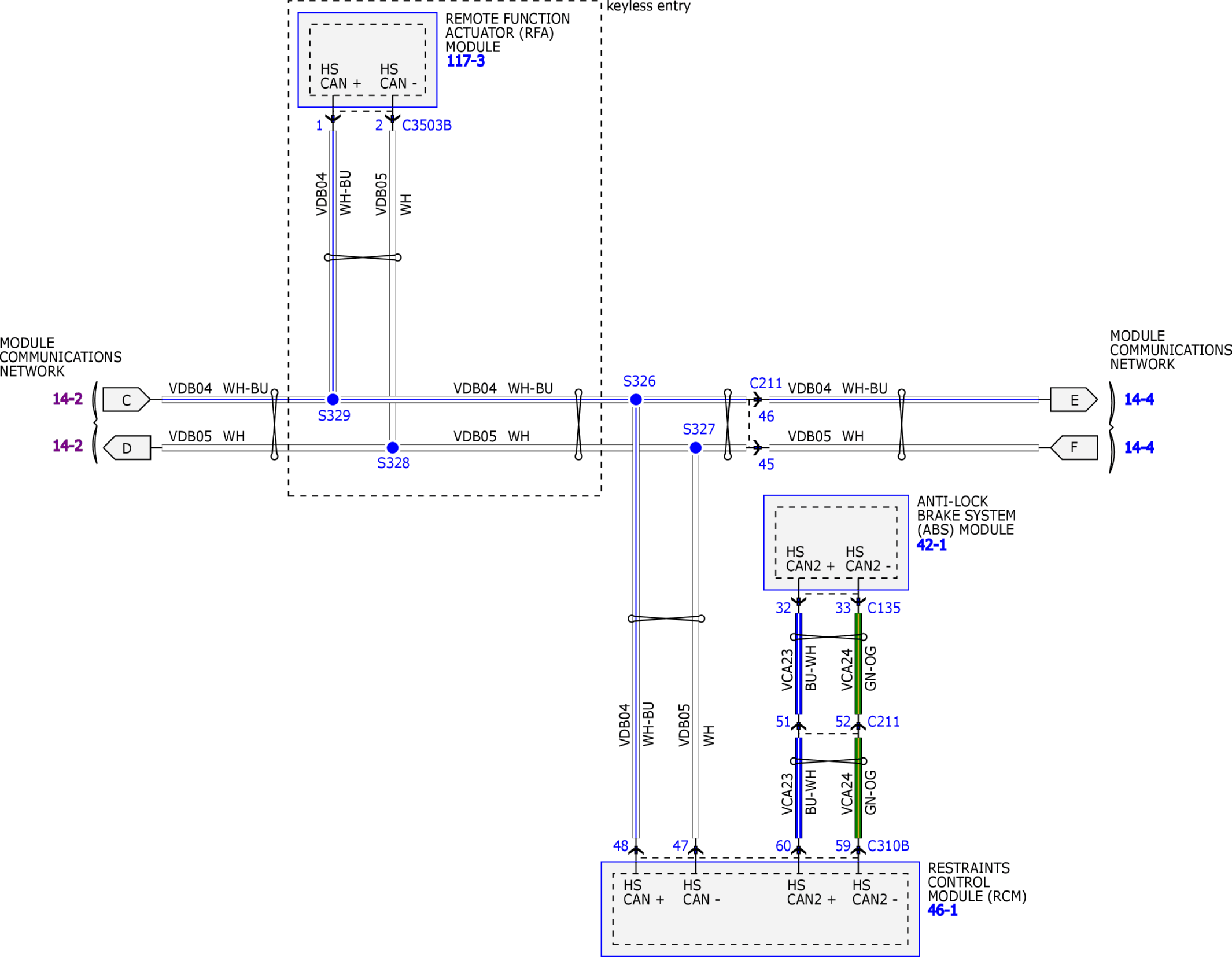

Fig 6: Module Communications Network System Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR COMPANY
