Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Installation of a new receiver/drier desiccant bag is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier desiccant bag. Damage to the receiver/drier desiccant bag includes physical damage to the receiver/drier desiccant bag or moisture contamination. Moisture contamination results only from a complete loss of refrigerant and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the system before repairs are carried out, the receiver/drier desiccant bag should not be replaced.

1.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting .

2.

Recover the refrigerant. For additional information, refer to Climate Control System General Information and Diagnostics .

3.

Release the 4 underbody shield retainers and remove the underbody shield (if equipped).

GFD87602

Courtesy of FORD MOTOR COMPANY

4.

Remove the lower radiator splash shield.

GFD89265

Courtesy of FORD MOTOR COMPANY

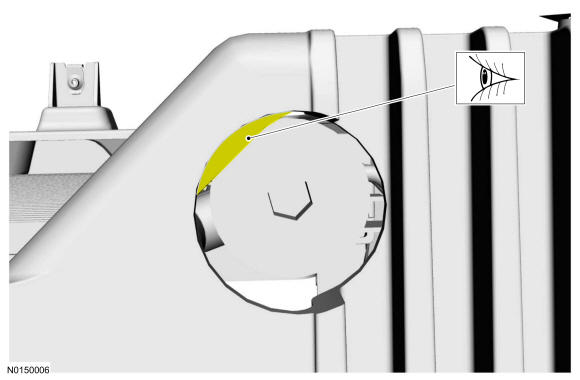

5.

Visually inspect the access hole. If the inner bolster flash covers any portion of the receiver drier plug and/or is not aligned with the 40 mm (1.574 in) access hole proceed to step 6. If there are no clearance issues proceed to step 7.

GFD89288

Courtesy of FORD MOTOR COMPANY

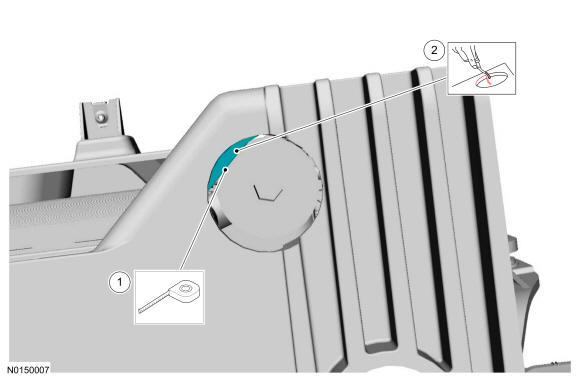

6.

Remove 3.0 mm (0.118 in) of material from the inner bolster flash.

GFD89289

Courtesy of FORD MOTOR COMPANY

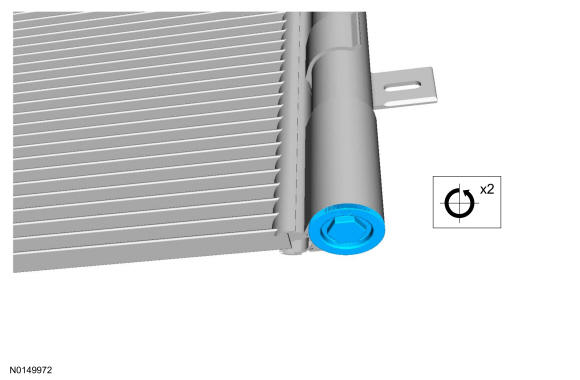

7.

Unscrew and remove the plastic receiver/drier cap.

GFD89290

Courtesy of FORD MOTOR COMPANY

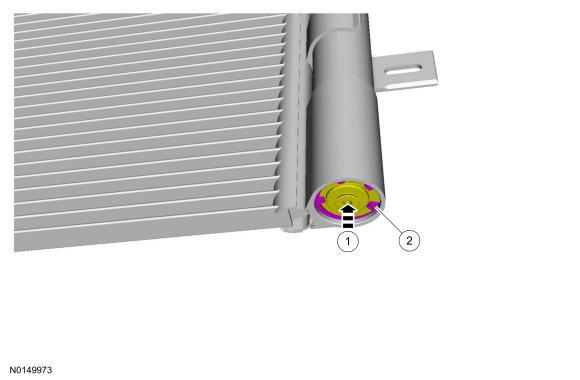

8.

Remove the receiver/drier plug snap ring.
- 1.

  Push the receiver/drier plug upwards.
- 2.

  Remove the receiver/drier plug snap ring.

GFD89291

Courtesy of FORD MOTOR COMPANY

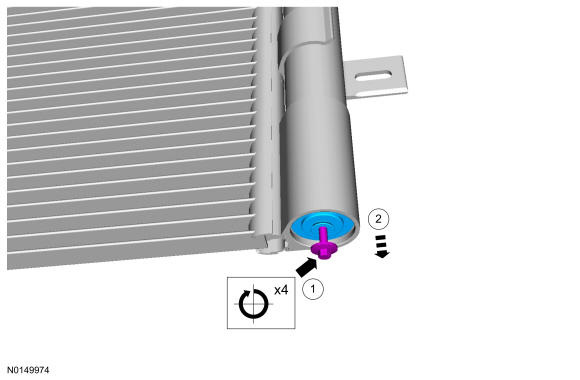

9.

Remove the receiver/drier plug.
- 1.

  Install an M5 bolt in the center of the receiver drier plug.
- 2.

  Remove the receiver/drier plug.

GFD89292

Courtesy of FORD MOTOR COMPANY

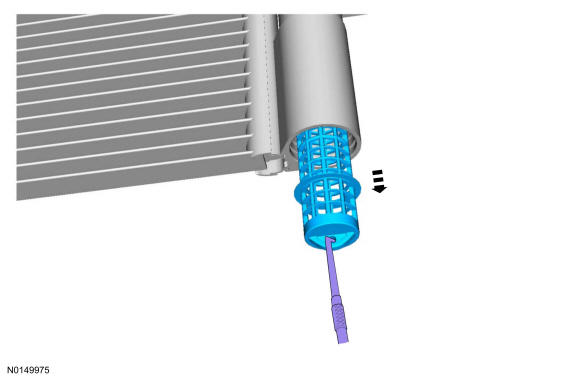

10.

Grasp the receiver/drier cartridge grab handle and remove the receiver/drier cartridge.

GFD89293

Courtesy of FORD MOTOR COMPANY

11.

To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.
- Add the correct amount of clean PAG oil to the refrigerant system. For additional information, refer to the Refrigerant Oil Adding procedure in Climate Control System General Information and Diagnostics .

12.

Evacuate, leak test and charge the refrigerant system. For additional information, refer to Climate Control System General Information and Diagnostics .
