All-Wheel Drive (AWD) Module: Removal

  1. 1.

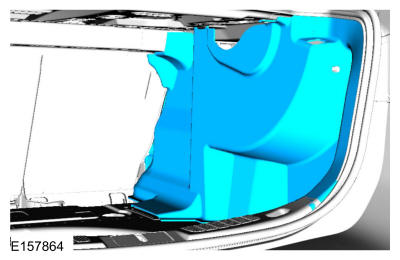

    Release the clips and remove the loadspace trim panel.
GFD68932Courtesy of FORD MOTOR COMPANY

  1. 2.

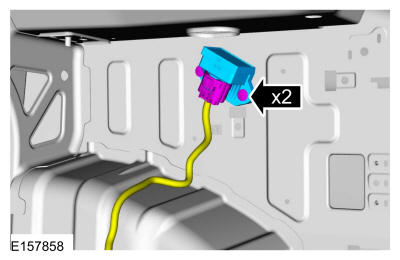

    • Disconnect the AWD module electrical connector.
    • Remove the AWD module push pin fasteners and the AWD module.
GFD68933Courtesy of FORD MOTOR COMPANY
