Selector Lever Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Disconnect the selector lever cable from the selector lever and remove the selector lever cable retainer bolt.

    Torque

    : 62 lb.in (7 Nm)

GFD12078Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the selector lever cable from the selector lever assembly.
GFD12079Courtesy of FORD MOTOR COMPANY

  1. 4.

    Starting from the front corners, carefully pry up the bezel and position it out of the way.

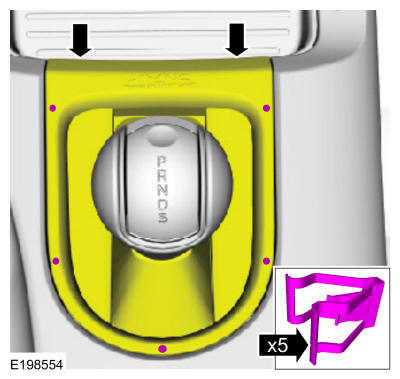

GFD12080Courtesy of FORD MOTOR COMPANY

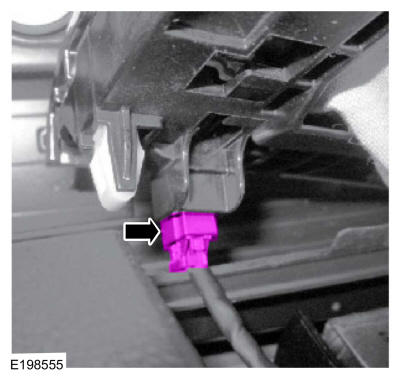

  1. 5.

    Disconnect the electrical connector.
GFD12081Courtesy of FORD MOTOR COMPANY

  1. 6.

    Open the floor console lid.

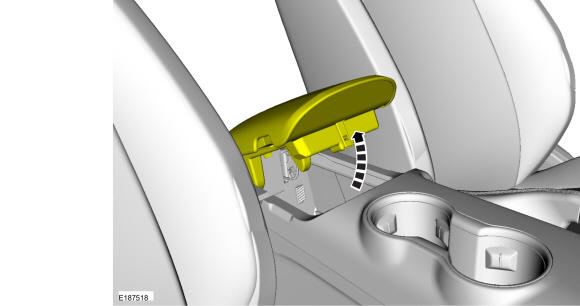

GFD8171Courtesy of FORD MOTOR COMPANY
    NOTE: If necessary, position the seat rearward.

  1. 7.
    Release the clips and remove the floor console RH side trim panel.

    Use the General Equipment: Interior Trim Remover

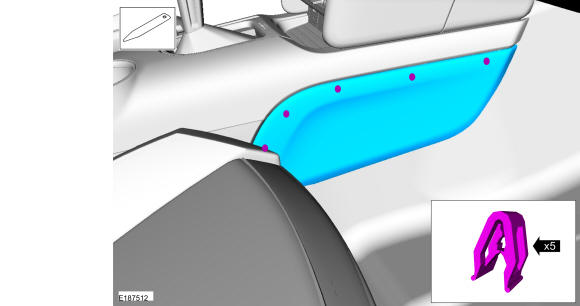

GFD8165Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the RH side front screws.

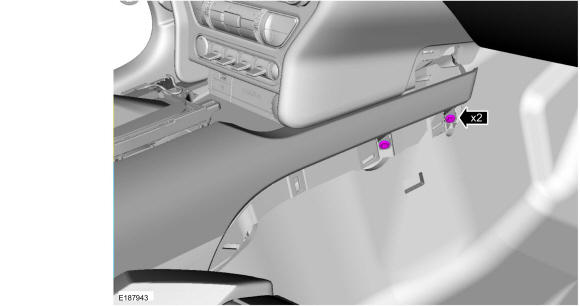

GFD8172Courtesy of FORD MOTOR COMPANY
    NOTE: If necessary, position the seat rearward.

  1. 9.
    Release the clips and remove the LH side trim panel.

    Use the General Equipment: Interior Trim Remover

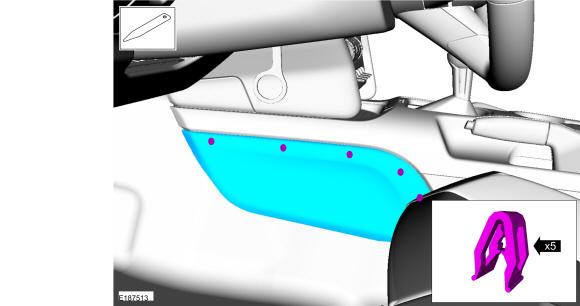

GFD8166Courtesy of FORD MOTOR COMPANY

  1. 10.

    Remove the LH side front screws.

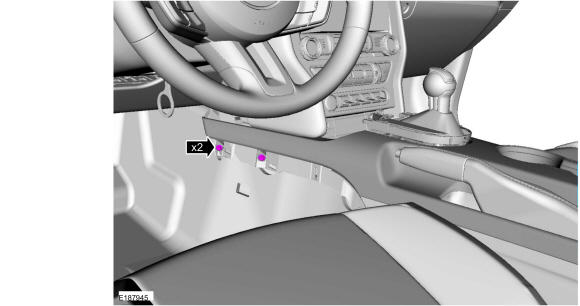

GFD8173Courtesy of FORD MOTOR COMPANY

  1. 11.

    Release the clips, position the selector lever bezel and boot aside and remove the floor console upper trim panel.
    • Disconnect the electrical connectors.

      Use the General Equipment: Interior Trim Remover

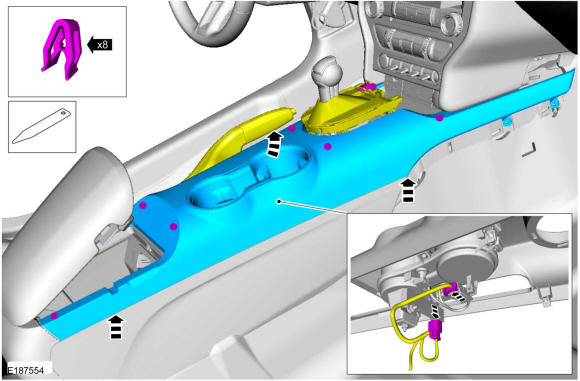

GFD8174Courtesy of FORD MOTOR COMPANY

  1. 12.

    Disconnect the selector lever assembly electrical connector.

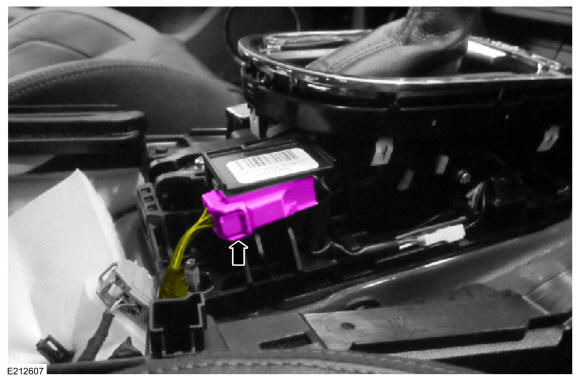

GFD12082Courtesy of FORD MOTOR COMPANY

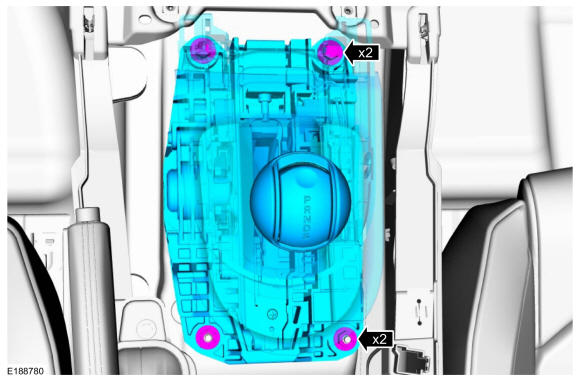

  1. 13.

    Remove the bolts, the nuts and the selector lever assembly.

    Torque

    : 80 lb.in (9 Nm)

GFD12083Courtesy of FORD MOTOR COMPANY
