Selector Lever Cable: Installation

1.

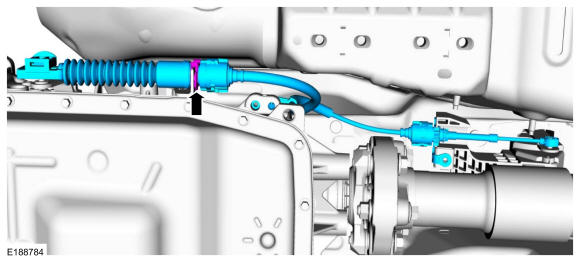

Position the selector lever cable and connect the selector lever cable retainer.

GFD12089

Courtesy of FORD MOTOR COMPANY

2.

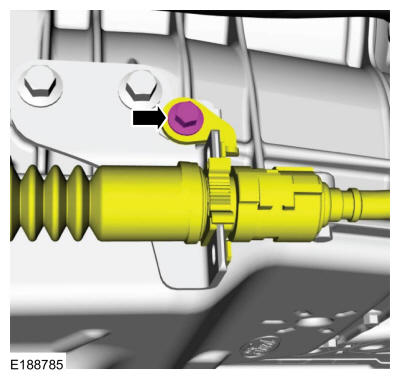

Install the selector lever cable retainer bolt.
Torque

: 62 lb.in (7 Nm)

GFD12090

Courtesy of FORD MOTOR COMPANY

3.

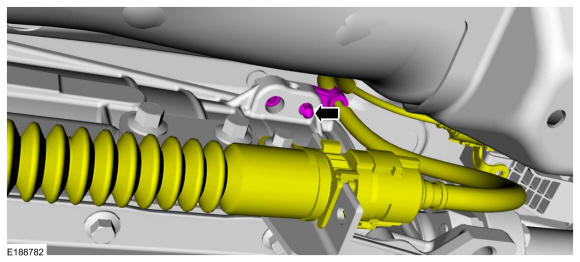

Connect the selector lever cable retainer to the transmission.

GFD12087

Courtesy of FORD MOTOR COMPANY

4.

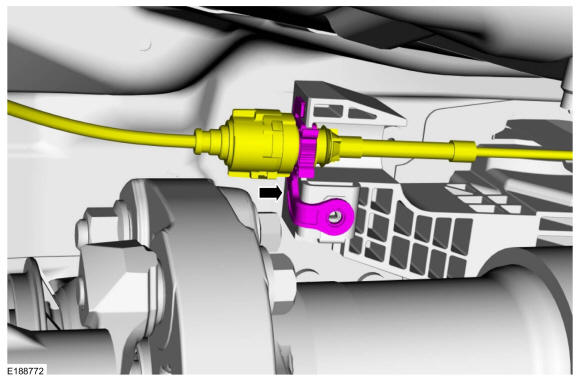

Connect the selector lever cable to the selector lever assembly.

GFD12079

Courtesy of FORD MOTOR COMPANY

5.

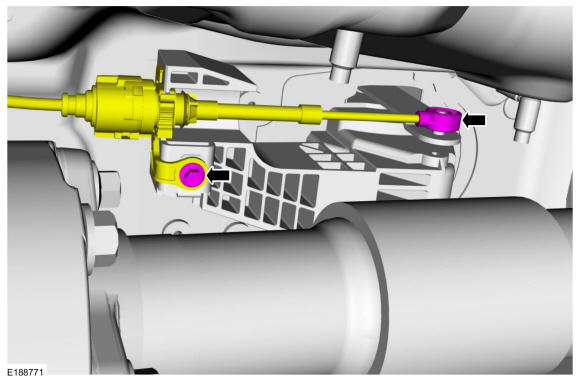

With the selector lever in DRIVE, install the selector lever cable retainer bolt and connect the selector lever cable to the selector lever.
Torque

: 62 lb.in (7 Nm)

GFD12078

Courtesy of FORD MOTOR COMPANY

6.

Position the manual lever in DRIVE.
1. 1.

  Rotate the manual lever clockwise until it stops.
1. 2.

  Rotate the manual lever counterclockwise 3 detents.

GFD12071

Courtesy of FORD MOTOR COMPANY

7.

Unlock the adjuster.
1. 1.

  Gently pry the latch up.
1. 2.

  Push the lock tab to slide it down.
1. 3.

  Lock tab shown open in illustration.

GFD12072

Courtesy of FORD MOTOR COMPANY

NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

8.
Connect and lock the adjuster.
1. 1.

  With the adjuster lock tab released, connect the selector lever cable end to the manual control lever.
1. 2.

  Push the lock tab upward to lock the transmission selector lever cable adjustment lock.

GFD12073

Courtesy of FORD MOTOR COMPANY

9.

Verify the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
