Upshift Paddle Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the driver air bag. Refer to: Driver Airbag
.
- 2.

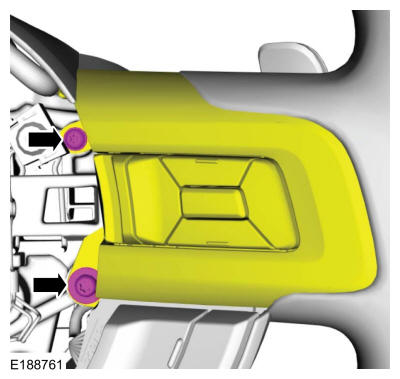

Remove the screws and position the RH speed control switch to access the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Disconnect the RH speed control switch electrical connector and remove the switch.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

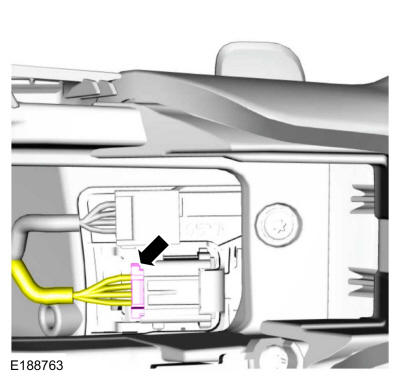

Disconnect the upshift paddle switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

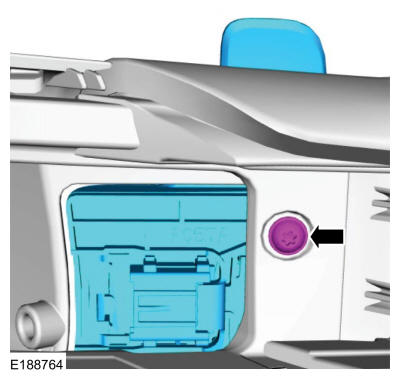

Remove the screw and the upshift paddle switch.
 Courtesy of FORD MOTOR COMPANY
|
