Powertrain Control Module (PCM): Installation

1.
1. 1.

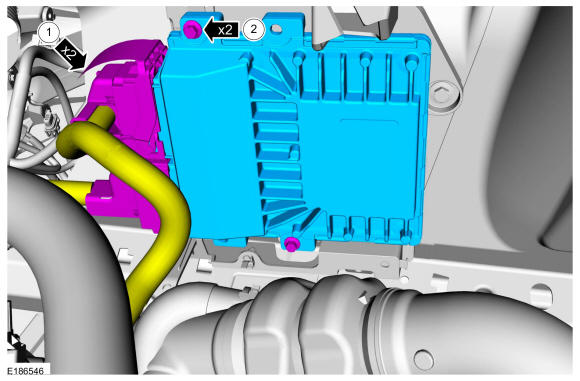

  Connect the PCM electrical connectors.
1. 2.

  Install the PCM and the retainers.
  Torque

  : 62 lb.in (7 Nm)

GFD7843

Courtesy of FORD MOTOR COMPANY

2.

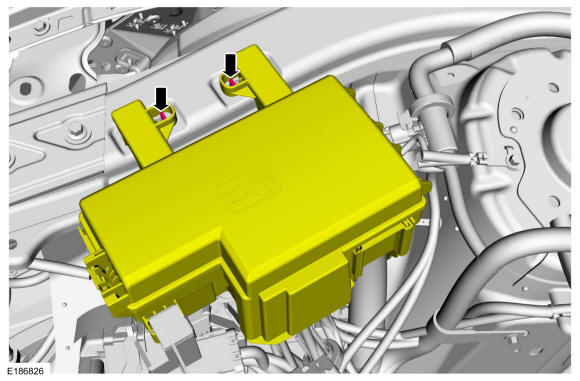

Position back the BJB.

GFD7844

Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

3.
Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: MODULE CONFIGURATION .

4.

Carry out the Parameter Reset procedure. Refer to: Anti-Theft Security Access .

5.

Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
