Camera Windshield Defrost Heater: Installation

  1. 1.

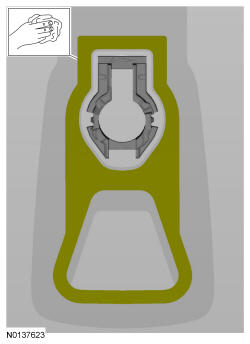

    NOTE: Use an alcohol pad to remove the residual adhesive. If required a plastic scraper may be used..
GFD85719Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the protective covering from the new camera windshield defrost heater.

  1. 3.

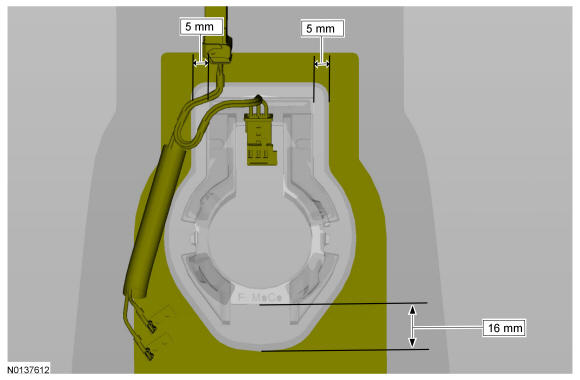

    Align the camera windshield defrost heater.
GFD85720Courtesy of FORD MOTOR COMPANY

  1. 4.

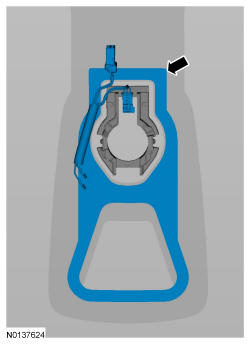

    NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.
GFD85718Courtesy of FORD MOTOR COMPANY

  1. 5.

    Install the rain sensor. For additional information, refer to Wipers and Washers .
