Seat Backrest Front: Assembly

1.

NOTE: Wire harness may differ due to option content.

If equipped, position the backrest wire harness and attach the retainers.

GFD85908

Courtesy of FORD MOTOR COMPANY

2.

If equipped, install the recliner motor in the following sequence.
1. 1.

  Slide the long recliner shaft into the recliner motor and recliner.
1. 2.

  Connect the recliner motor.
1. 3.

  Slide the short recliner shaft onto the long recliner shaft.
1. 4.

  Slide the recliner shaft assembly into the recliner on the other side.
1. 5.

  Position the recliner motor and install the bolt.
  - Tighten to 5 Nm (44 lb-in).
1. 6.

  Install the E-clip on the recliner shaft recession, near the recliner motor.

3.

If equipped, engage both power lumbar with massage wires and rotate the assembly down.

GFD85909

Courtesy of FORD MOTOR COMPANY

4.

If equipped, install the multi-contour seats module, connect the electrical connector and hoses. Attach the module hooks to the lumbar assembly and position the module on to the retainer.

5.

If equipped, position the static lumbar and install the retainers at the bottom.

6.

Position the static lumbar in front of the backrest frame wire and install 2 new retainers.
- After installation, make sure the retainers are holding the static lumbar tightly against the backrest frame wire or squeaks can occur.

GFD85910

Courtesy of FORD MOTOR COMPANY

7.

If equipped, attach the manual lumbar retaining clips and cable retainer.

8.

If equipped, attach the power lumbar retaining clips and connect the electrical connector.

9.

NOTE: Passenger side shown, driver side similar.

Position the side airbag module into the deployment chute.
- Route the side airbag module wire harness through the deployment chute.
- Position the 2 side airbag module studs and locator pin through the deployment chute holes.

GFD85911

Courtesy of FORD MOTOR COMPANY

10.

NOTE: The side airbag modules are keyed left and right. If the side airbag module locator pin does not align to the backrest frame hole, the wrong side airbag module is being installed.

Position the 2 side airbag module studs and locator pin through the backrest frame and install the 2 nuts.
- Tighten to 10 Nm (89 lb-in).

GFD85912

Courtesy of FORD MOTOR COMPANY

11.

Route and attach the side airbag module wire harness to the backrest frame.

GFD85905

Courtesy of FORD MOTOR COMPANY

12.

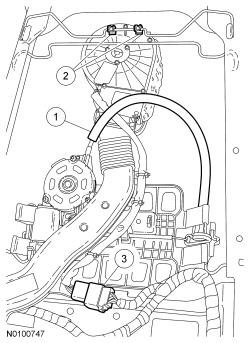

If equipped, install the backrest TED.
1. 1.

  Position the TED between the power lumbar and cable.
1. 2.

  Attach the TED upper retainers to the backrest frame wire.
1. 3.

  Connect the electrical connector and attach the pin-type retainer.

GFD85913

Courtesy of FORD MOTOR COMPANY

13.

WARNING: Inspect the seat side air bag module cavity in the seat backrest foam pad for any foreign material. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

Position the backrest frame assembly into the backrest foam pad. Install 2 pin-type retainers.

14.

If equipped, connect the backrest heater mat electrical connector and attach the pin-type retainer.

15.

If equipped, attach the backrest TED to the backrest foam pad wire.

16.

WARNING: If the seat side air bag module deployment chute is not correctly positioned, the seat side air bag may not deploy correctly. Failure to follow this instruction may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

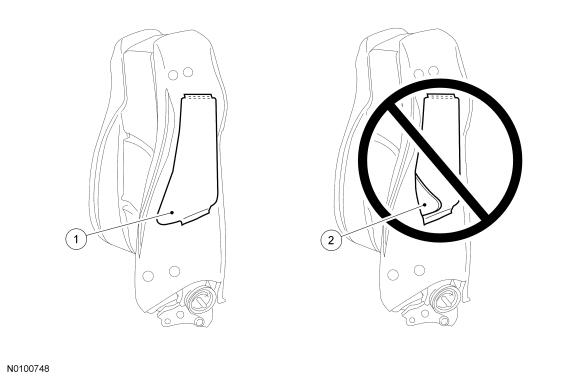

NOTE: The seat side airbag module must have a clear exit path from the front of the deployment chute. Both deployment chute front edges must be positioned to lay flat when positioned between the backrest foam pad and backrest frame.

NOTE: Illustration shown looking through the side of the backrest foam pad and at the side airbag module deployment chute.

Check the position of the deployment chute.
1. 1.

  Position both deployment chute front edges to lay flat, from top to bottom, between the backrest foam pad and backrest frame.
1. 2.

  Do not allow the deployment chute front edges to fold over, at any point, between the backrest foam pad and backrest frame.

GFD85798

Courtesy of FORD MOTOR COMPANY

17.

With the backrest cover inside out, position it to the backrest foam pad and frame assembly.
- Align the head restraint holes in the backrest cover to the holes in the backrest foam pad and frame.

18.

Roll the backrest cover down, attach the hook-and-loop strips and the J-clip at the rear to the backrest frame wire.

19.

Roll the backrest cover down, attach the hook-and-loop strips and install the 3 second row hog rings.

20.

Roll the backrest cover down, attach the hook-and-loop strips and install the 3 first row hog rings.

21.

Roll the backrest cover down and attach the hook-and-loop strips.

22.

Route the wire harness(es) and air hoses (if equipped) through the hole(s) in the backrest cover and attach the lower J-clips.
- Make sure the manual lumbar cable is routed out from the outboard side of the backrest before engaging the lower J-clips (if equipped).

23.

On each side, wrap the backrest cover around the recliner and attach the hook-and-loop strips and clip.

24.

Install the 2 head restraint guides sleeves. Refer to Head Restraint Guide Sleeve - Front .

25.

Install the seat backrest. Refer to Seat Backrest - Front .
