Seat Backrest Heater Mat Front: Installation
- 1.
Install a new backrest heater mat onto a new backrest foam pad.- 1.
Position the heater mat wire harness through the backrest foam pad.
- 2.

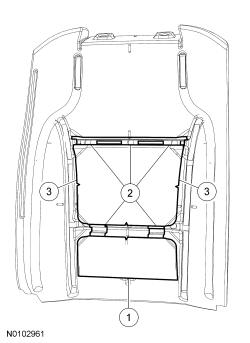

Position the backrest heater mat onto the backrest foam pad and tuck the heater mat into the foam pad trenches.- Make sure the openings in the backrest heater mat align to the wires in the backrest foam pad.
- 3.
Make sure the backrest heater mat stays in place, remove the paper strips from under the backrest heater mat and adhere to the backrest foam pad, laying it flat with no wrinkles.
- 1.
- 2.WARNING: Inspect the seat side air bag module cavity in the seat backrest foam pad for any foreign material. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.
Position the backrest frame assembly into the backrest foam pad. Install the 2 pin-type retainers.
- 4.
Install the seat backrest cover. For additional information, refer to Seat Backrest Cover - Front in this article.
