Seat Exploded View, Front
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Seat - Exploded View, Front

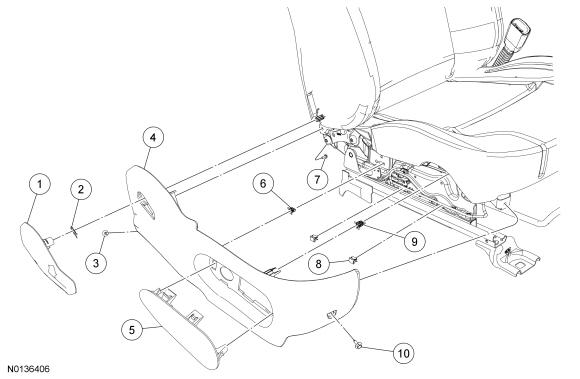

Cushion Side Shield - Manual Seat Track With Manual Recline
| Item | Part Number | Description |
|---|---|---|
| 1 | 61199 | Manual recliner handle |
| 2 | W790123 | Manual recliner handle clip |
| 3 | W710752 | Scrivet |
| 4 | 62186 | Cushion side shield |
| 5 | 61693 | Cushion side shield cover |
| 6 | W703895 | Cushion side shield cover screw |
| 7 | W506841 | Screw |
| 8 | W713010 | Cushion side shield retainers (2 required) |
| 9 | W714113 | Cushion side shield retainer |
| 10 | W505153 | Screw |

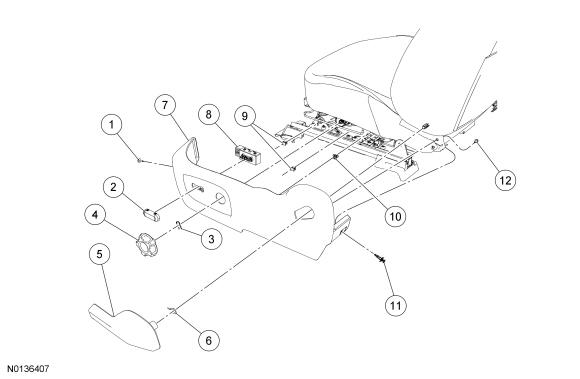

Cushion Side Shield - Power Seat Track With Manual Recline and Manual Lumbar
| Item | Part Number | Description |
|---|---|---|
| 1 | W505153 | Screw |
| 2 | 14711 | Seat track control knob |
| 3 | W790123 | Manual lumbar handle clip |
| 4 | 62622 | Manual lumbar handle |
| 5 | 61199 | Manual recliner handle |
| 6 | W790163 | Manual recliner handle clip |
| 7 | 62187 | Cushion side shield |
| 8 | 14A701 | Seat control switch |
| 9 | W713010 | Cushion side shield retainers (2 required) |
| 10 | W703895 | Cushion side shield retainer |
| 11 | W710752 | Scrivet |
| 12 | W506841 | Screw |

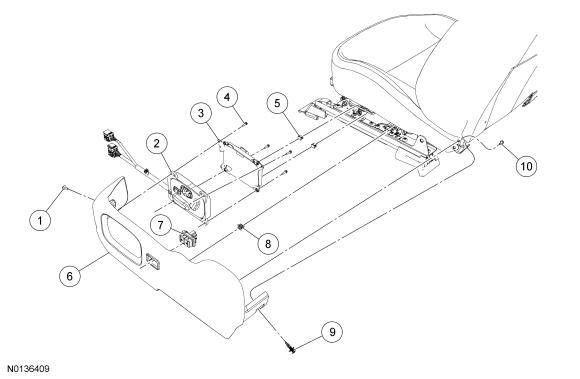

Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar and Memory
| Item | Part Number | Description |
|---|---|---|
| 1 | 63259 | Memory SET switch bezel (if equipped) |
| 2 | W712973 | Memory SET switch bezel retainers (if equipped) (2 required) |
| 3 | 14776 | Memory SET switch (if equipped) |
| 4 | W505153 | Screw |
| 5 | 62187 | Cushion side shield |
| 6 | 14711 | Seat track control knob |
| 7 | 14711 | Backrest control knob |
| 8 | W710752 | Scrivet |
| 9 | 14A701 | Seat control switch |
| 10 | W713010 | Cushion side shield retainers (2 required) |
| 11 | W703895 | Cushion side shield retainer |
| 12 | W506841 | Screw |
Cushion Side Shield - With Active Motion®
| Item | Part Number | Description |
|---|---|---|
| 1 | W505153 | Screw |
| 2 | 14A701 | Seat control switch |
| 3 | 62257 | Seat control switch cover |
| 4 | W506824 | Screw (4 required) |
| 5 | W713010 | Cushion side shield retainers (2 required) |
| 6 | 62187 | Cushion side shield |
| 7 | 14776 | Memory SET switch (if equipped) |
| 8 | W703895 | Cushion side shield retainer |
| 9 | W710752 | Scrivet |
| 10 | W506841 | Screw |

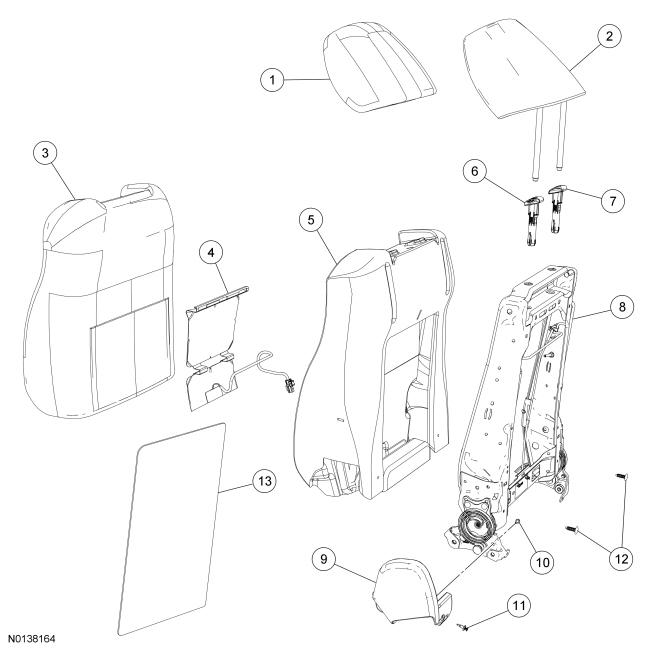

Seat Backrest - Trim Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 610A60 | Head restraint |
| 3 | 64416 | Backrest trim cover |
| 4 | 14D696 | Backrest heater mat (if equipped) |
| 5 | 64810 | Backrest foam pad |
| 6 | 610A16 | Head restraint guide sleeve, primary |
| 7 | 610A18 | Head restraint guide sleeve, secondary |
| 8 | 61018 | Backrest frame |
| 9 | 62186 | Recliner cover |
| 10 | W506841 | Screw |
| 11 | W710752 | Scrivet |
| 12 | W706676 | Pin-type retainers (2 required) |
| 13 | - | Stab shield (police package) |

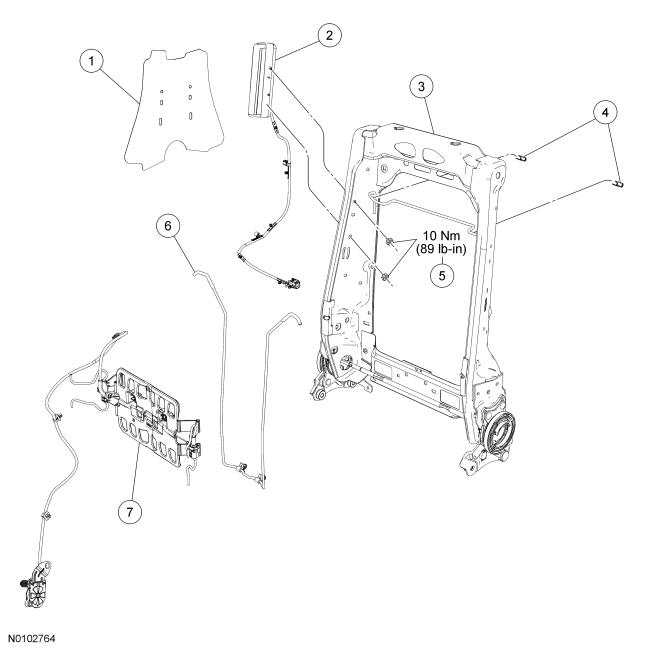

Seat Backrest - Frame Components With Manual Lumbar or Static Lumbar
| Item | Part Number | Description |
|---|---|---|
| 1 | 610E38 | Deployment chute |
| 2 | 611D10 | Side air bag module |
| 3 | 61018 | Backrest frame |
| 4 | W790133 | Clips (if equipped) (2 required) |
| 5 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 6 | 64842 | Static lumbar (if equipped) |
| 7 | 65500 | Manual lumbar adjust assembly (if equipped) |

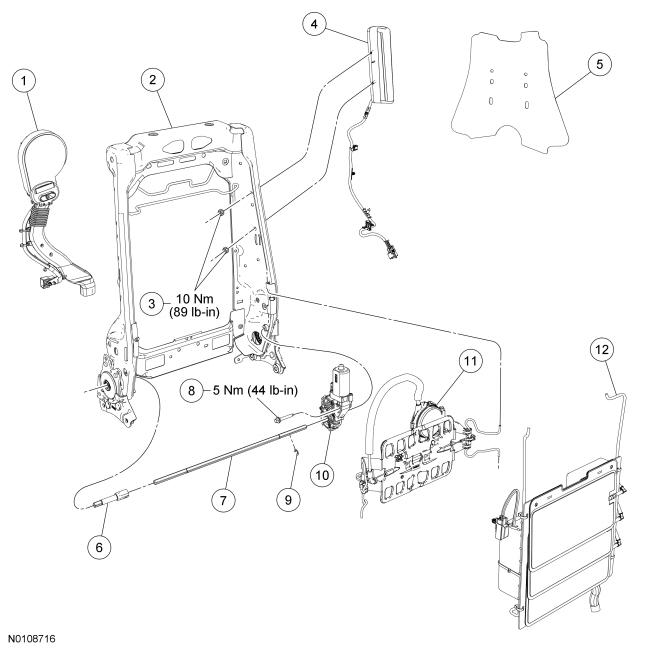

Seat Backrest - Frame Components With Power Lumbar
| Item | Part Number | Description |
|---|---|---|
| 1 | 19N550 | Backrest Thermo-Electric Device(TED) (if equipped) |
| 2 | 61019 | Backrest frame |
| 3 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 4 | 611D11 | Side air bag module |
| 5 | 610E38 | Deployment chute |
| 6 | 613A68 | Short recliner shaft (if equipped) |
| 7 | 613A68 | Long recliner shaft (if equipped) |
| 8 | W701242 | Power recline motor bolt (if equipped) |
| 9 | 61479 | Recliner shaft E-clip (if equipped) |
| 10 | 14547 | Power recline motor (if equipped) |
| 11 | 65501 | Power lumbar adjust assembly (if equipped) |
| 12 | 65500 | Power lumbar with Active Motion® adjuster assembly (if equipped) |

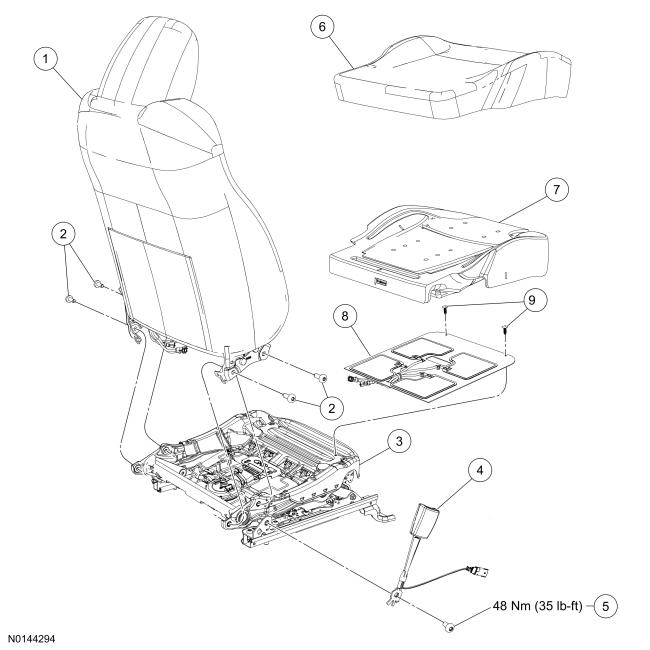

Seat Cushion - With Active Motion®
NOTE:
Refer to Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Backrest assembly |
| 2 | W707385 | Recliner-to-seat track bolts (4 required) |
| 3 | 61711 | Seat track |
| 4 | 61203 | Safety belt buckle and pretensioner |
| 5 | W712978 | Safety belt buckle and pretensioner bolt |
| 6 | 62901 | Cushion cover |
| 7 | 632A23 | Cushion foam pad |
| 8 | 603A99 | Seat cushion with Active Motion® massage (if equipped) |
| 9 | W706670 | Pin-type retainers (if equipped) (2 required) |

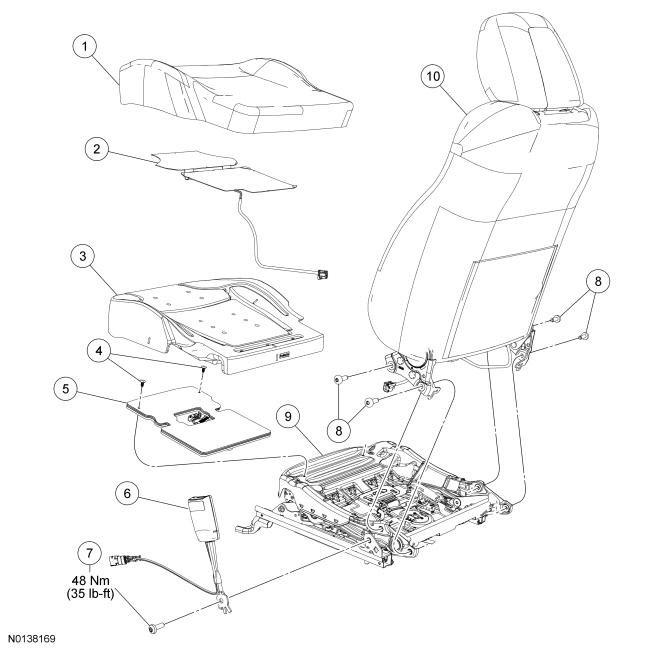

Seat Cushion - Without Active Motion®
NOTE:
Refer to Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | 14D696 | Cushion heater mat (if equipped) |
| 3 | 632A22 | Cushion foam pad |
| 4 | W706676 | Pin-type retainers (part of 603B16) (2 required) |
| 5 | 603B16 | OCS bladder (passenger side only) |
| 6 | 61202 | Safety belt buckle |
| 7 | W713813 | Safety belt buckle bolt |
| 8 | 611A08 | Recliner-to-seat track bolts (4 required) |
| 9 | 61710 | Seat track |
| 10 | - | Backrest assembly |

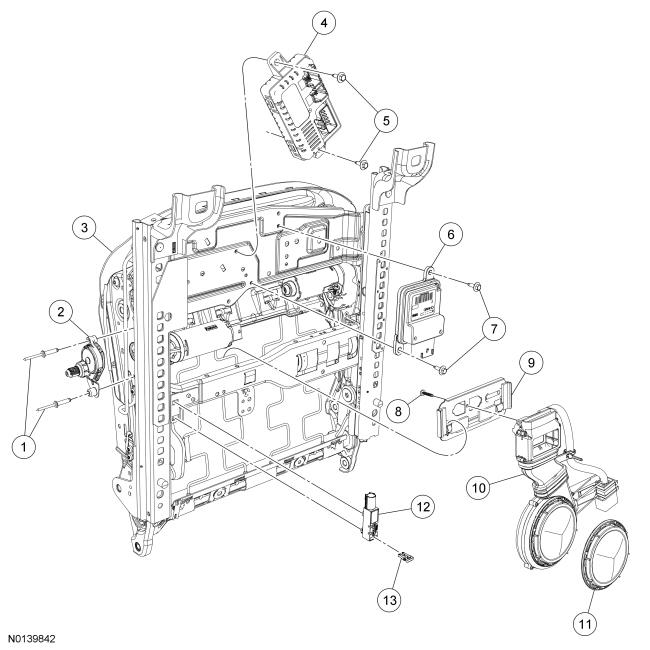

Passenger Power Seat Track
| Item | Part Number | Description |
|---|---|---|
| 1 | W713066 | Rivets (2 required) |
| 2 | 65500 | Manual lumbar adjuster (if equipped) |
| 3 | 61710 | Seat track |
| 4 | 14C724 | Dual Climate Controlled Seat Module(DCSM) (if equipped) |
| 5 | W505153 | Screws (2 required) (if equipped) |
| 6 | 19G275 | Occupant Classification System Module(OCSM) (if equipped) |
| 7 | W505153 | Screws (if equipped) |
| 8 | - | Cushion Thermo-Electric Device(TED) adapter plate screw (part of 19N550) (if equipped) |
| 9 | 19N550 | Cushion TED adapter plate (if equipped) |
| 10 | 19N550 | Cushion TED (if equipped) |
| 11 | 19E880 | Cushion TED filter (if equipped) |
| 12 | 14B416 | Seat track position sensor |
| 13 | - | Seat position sensor clip (part of 14B416) |
Driver Power Seat Track
| Item | Part Number | Description |
|---|---|---|
| 1 | 61711 | Seat track |
| 2 | W505153 | Screws (2 required) (if equipped) |
| 3 | 14C708 | Driver Seat Module(DSM) (if equipped) |
| 4 | 65500 | Manual lumbar adjuster (if equipped) |
| 5 | W713066 | Rivets (2 required) (if equipped) |
| 6 | 14B416 | Seat track position sensor |
| 7 | - | Seat position sensor clip (part of 14B416) |
| 8 | - | Cushion Thermo-Electric Device(TED) adapter plate screw (part of 19N550) (if equipped) |
| 9 | - | Cushion TED adapter plate (part of 19N550) (if equipped) |
| 10 | 19N550 | Cushion TED (if equipped) |
| 11 | 19E880 | Cushion TED filter (if equipped) |
