Seat Exploded View, Second Row
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

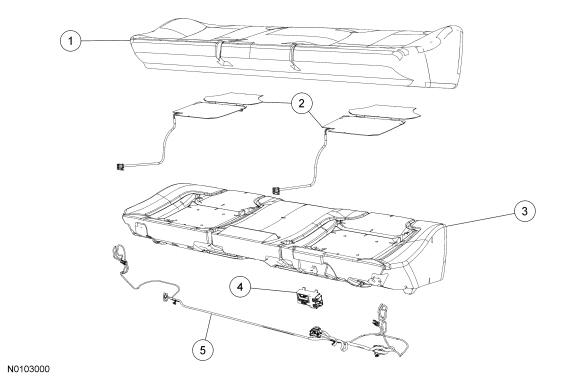

Seat - Exploded View, Second Row
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 | Cushion trim cover |
| 2 | 14D698 | Cushion heater mats (if equipped) (2 required) |
| 3 | 600A88 | Cushion foam pad |
| 4 | 14C724 | Heated seat module |
| 5 | 19K315 | Wire harness |

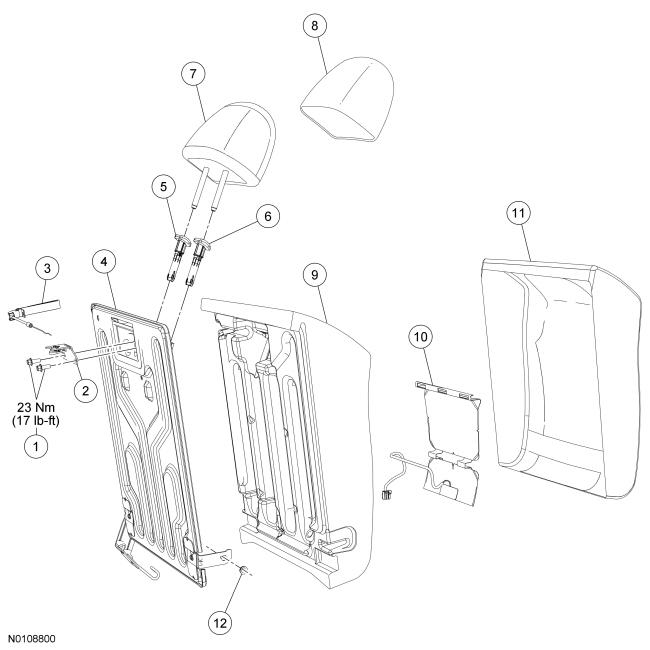

40 Percent Backrest
| Item | Part Number | Description |
|---|---|---|
| 1 | W505263 | Latch-to-backrest frame bolts (2 required) |
| 2 | 61383 | Backrest latch |
| 3 | 624A94 | Latch release cable |
| 4 | 613A39 | 40 percent backrest frame |
| 5 | 610A16 | LH head restraint guide sleeve |
| 6 | 610A18 | RH head restraint guide sleeve |
| 7 | 611A09 | Head restraint |
| 8 | 501A04 | Head restraint cover |
| 9 | 66801 | Backrest foam pad |
| 10 | 14D696 | Backrest heater mat |
| 11 | 66601 | Backrest cover |
| 12 | - | Grommet |

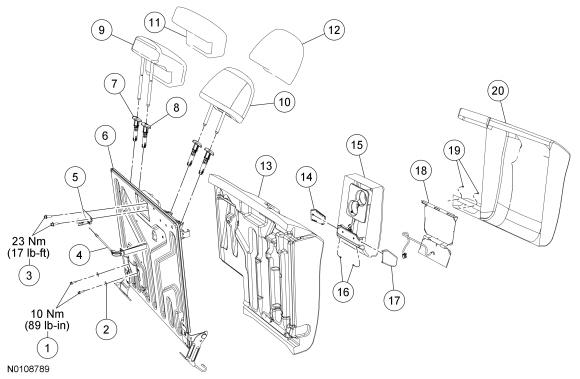

60 Percent Backrest
| Item | Part Number | Description |
|---|---|---|
| 1 | N605892 | Armrest bracket-to-backrest frame bolts (2 required) |
| 2 | W790164 | Washer (2 required) |
| 3 | W505263 | Latch-to-backrest frame bolts (2 required) |
| 4 | 624A94 | Latch release cable |
| 5 | 61383 | Backrest latch |
| 6 | 613A38 | 60 percent backrest frame |
| 7 | 610A16 | LH head restraint guide sleeve |
| 8 | 610A18 | RH head restraint guide sleeve |
| 9 | 611A08 | Center head restraint |
| 10 | 611A09 | Outboard head restraint |
| 11 | 501A04 | Center head restraint cover |
| 12 | 501A04 | Outboard head restraint cover |
| 13 | 66800 | Backrest foam pad |
| 14 | 67203 | LH armrest cover |
| 15 | 67112 | Armrest |
| 16 | - | Screws (2 required) |
| 17 | 67202 | RH armrest cover |
| 18 | 14D696 | Backrest heater mat |
| 19 | - | Pin-type retainers |
| 20 | 66600 | Backrest cover |
