Seat Front: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

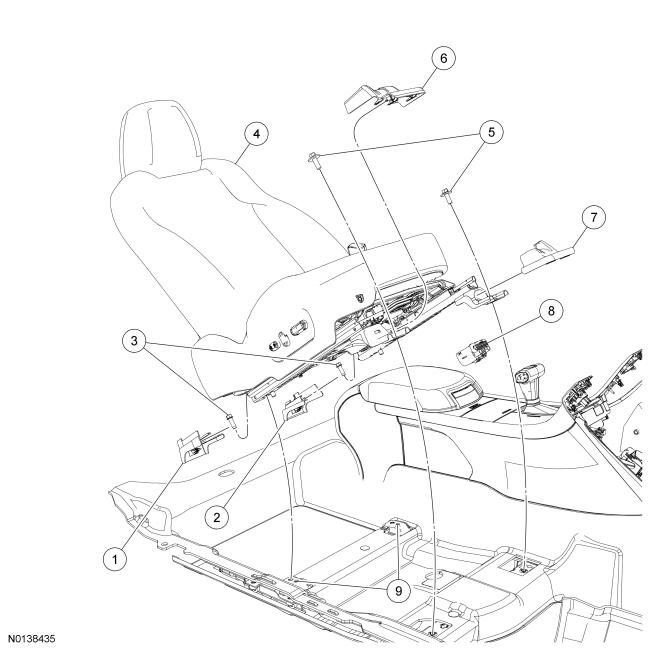

Seat - Front
NOTE:
Refer to the installation steps for tightening sequence and torque specification.
NOTE:
Passenger seat shown, driver seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61749 | Outboard rear cover |
| 2 | 61748 | Inboard rear cover |
| 3 | W714018 | Rear mounting bolts (2 required) |
| 4 | - | Passenger seat assembly |
| 5 | W709428 | Front mounting bolts (2 required) |
| 6 | 61748 | Front outboard cover |
| 7 | 61748 | Front inboard cover |
| 8 | - | Electrical connector(s) (part of 14A005) |
| 9 | 10672 | Side Protection and Cabin Enhancement(SPACE®) tube locator pin holes |
