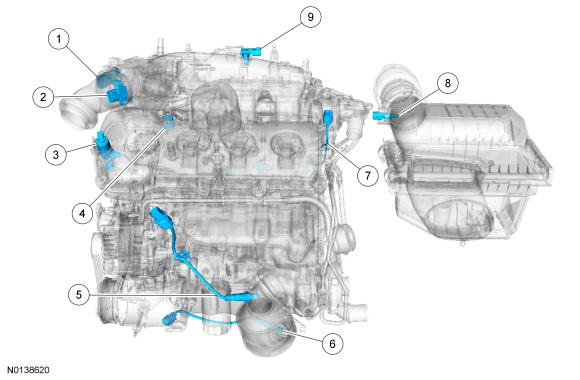

Front Engine Sensor Locations - 3.5L GTDI

GFD83403Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 TP sensor -
2 TCBP /CACT sensor -
3 LH VCT oil control solenoid -
4 FRP sensor -
5 LH HO2S -
6 LH CMS -
7 KS -
8 MAF sensor -
9 MAP /IAT2 sensor -
