Pinpoint Test B: Powertrain Control Module (PCM) Power Relay: Introduction: Notes
This pinpoint test is intended to diagnose the following:
- harness circuits: B+, INJPWRM, ISP-R, PCMRC, and VPWR
- PCM power relay (12A646)
- PCM (12A650)
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Fiesta | A | 1 | VPWR |
| All other vehicles | A | 2 | VPWR |

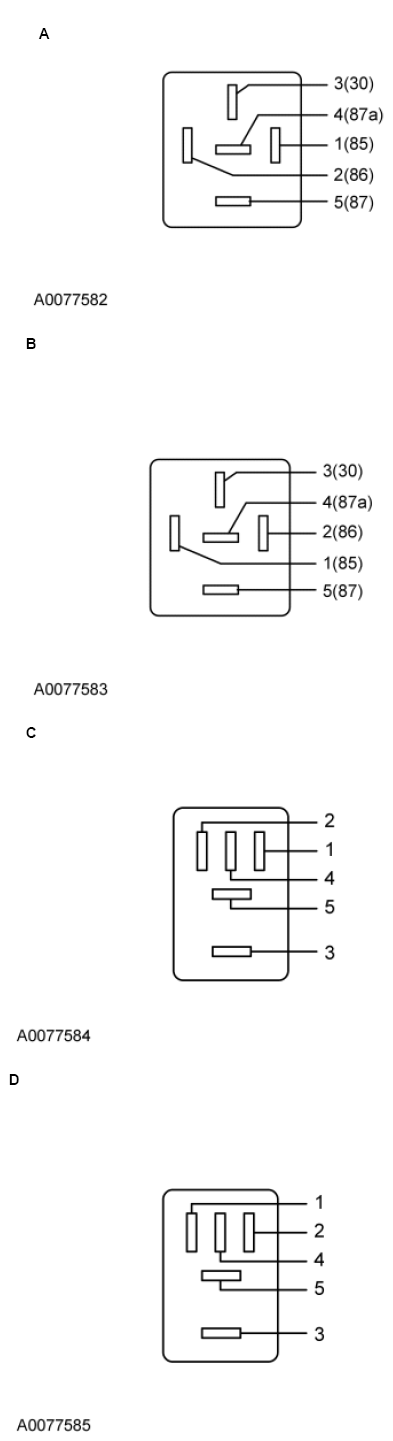

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Escape/Kuga | A | 5 2 1, 3 |
VPWR PCMRC B+ |
| Expedition, Focus, MKC, Navigator, Transit, Transit Connect |
B | 5 2 1, 3 |
VPWR PCMRC B+ |
| Explorer, Fusion, MKZ, Taurus 3.5L, Taurus 3.7L |
C | 5 1 2, 3 |
VPWR PCMRC B+ |
| F-650/F-750 | A | 87 85 30, 86 |
VPWR PCMRC B+ |
| F-Series Super Duty, Motorhome/Stripped Chassis/Step Van |
A | 5 1 2, 3 |
VPWR PCMRC B+ |
| Mustang | D | 3 2 1, 5 |
VPWR PCMRC B+ |
| All other vehicles | C | 5 2 1, 3 |
VPWR PCMRC B+ |
