Pinpoint Test KC: Fuel Pump Control Module: Introduction: Notes

This pinpoint test is intended to diagnose the following:

fuel pump (9H307)
fuel pump control module (9D370)
fuel pump control module relay
inertia fuel shutoff (IFS) switch (9341)
harness circuits: B+, GND, FPC, FPM, FPPWR, FPRTN, IES, VPWR, and VPWR Fuel
PCM (12A650)

Fig 1: Identifying Fuel Pump (FP) Connector
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, Expedition, F-150, Mustang, Navigator, Transit	A	3 4	FPRTN FPPWR
F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van	B	3 4	FPRTN FPPWR
All other vehicles	C	4 5	FPRTN FPPWR

Fig 2: Identifying Fuel Pump Control Module Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-150, F-650/F-750, Focus, Fusion, MKC, MKZ, Motorhome/Stripped Chassis/Step Van, Mustang	A	8 5 7 3 4 1	FPRTN FPPWR FPM FPC GND VPWR Fuel
All other vehicles	A	6 8 5 7 3 4 1	ENS FPRTN FPPWR FPM FPC GND VPWR Fuel

Fuel Pump Control Module Relay Connector

Refer to the Wiring Diagrams service information for schematic and connector information.

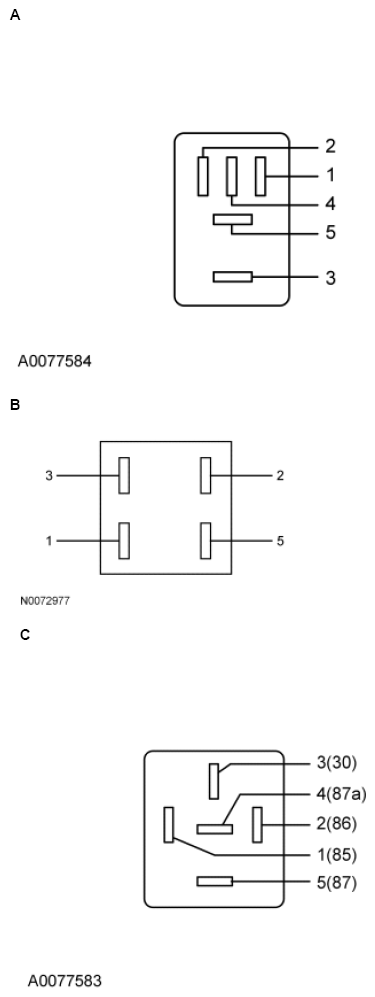

Fig 3: Identifying Fuel Pump Control Module Relay Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, Motorhome/Stripped Chassis/Step Van	A	2 1 3 5	GND VPWR B+ VPWR Fuel
Edge, F-150, F-Series Super Duty, Flex, MKT	B	2 1, 3 5	FP B+ VPWR Fuel
Expedition, MKC, Mustang, Navigator, Transit	A	2 1, 3 5	FP B+ VPWR Fuel
F-650/F-750	C	86 30, 85 87	GND B+ VPWR Fuel
Fiesta	B	2 1 3 5	GND VPWR B+ VPWR Fuel
All other vehicles	B	1 2, 3 5	FP B+ VPWR Fuel

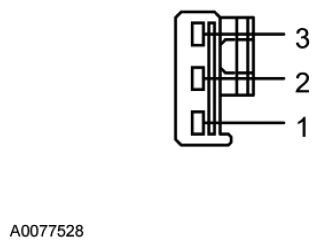

Fig 4: Identifying Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	VPWR Fuel - B
2	VPWR Fuel - A

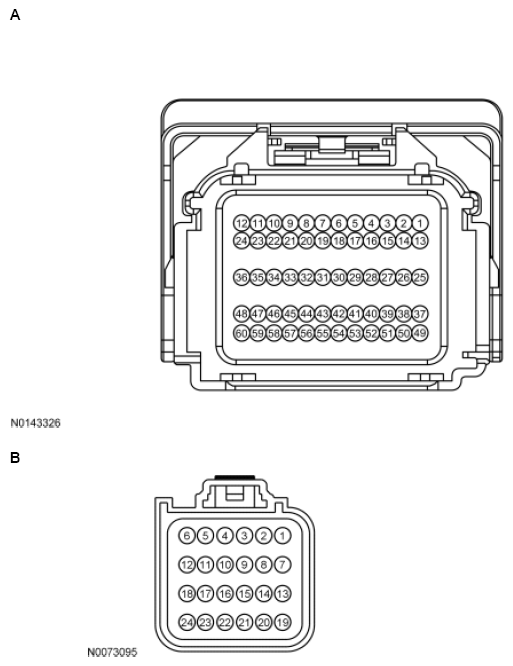

Fig 5: Identifying Body Control Module-C (BCM-C) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	12	FP
All other vehicles	B	29 26	IES FP

Fig 6: Identifying Body Control Module-E (BCM-E) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
E9	VPWR (Vehicle Power)

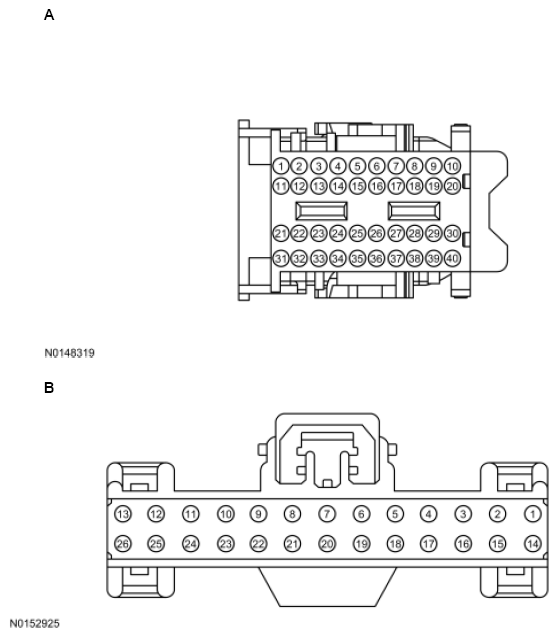

Fig 7: Identifying Body Control Module-F (BCM-F) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-150, Mustang	A	26	FP
All other vehicles	B	6	FP

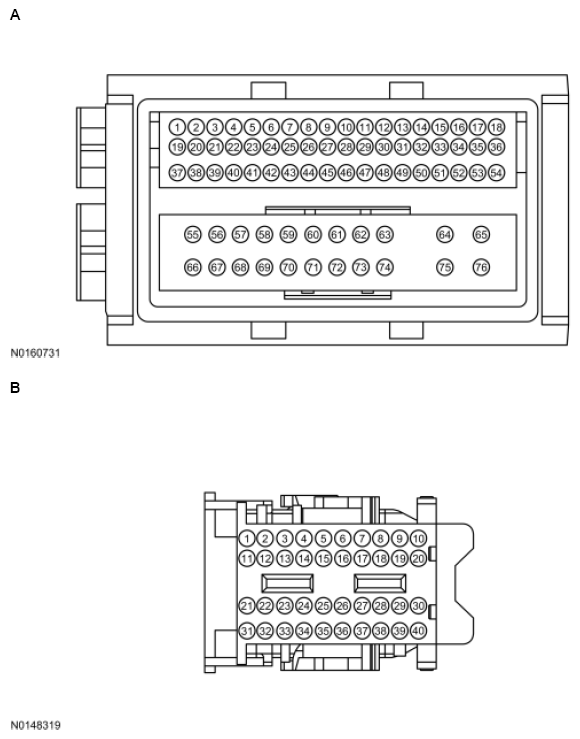

Fig 8: Identifying Restraints Control Module (RCM) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Expedition, Explorer, Fiesta, MKS, Navigator, Taurus, Transit	A	42	ENS
All other vehicles	B	19	ENS
