Powertrain Control Module (PCM)
The center of the engine control (EC) system is a microprocessor called the PCM. The PCM receives input from sensors and other electronic components (switches, relays). Based on the information received and programmed into its memory, the PCM generates output signals to control various relays, solenoids and actuators. There are several different types of PCMs in use for this model year. Refer to the VEHICLE PCM APPLICATION TABLE below for PCM types and their applications.
VEHICLE PCM APPLICATION LIST
| PCM Type | Applications |
|---|---|
| 128 Pin | Fiesta (1.6L TIVCT) |
| 154 Pin | Explorer (2.0L) |
| 190 Pin | E-Series, Escape (2.5L), Explorer (3.5L TIVCT, 3.7L), F-650/F-750, F-Series Super Duty, Flex (3.5L TIVCT), Fusion (2.5L), MKS (3.7L), MKT (3.7L), MKX, MKZ (3.7L), Taurus (3.5L TIVCT, 3.7L), Transit (3.7L TiVCT), Transit Connect (2.5L) |
| 198 Pin | Edge, Escape (1.6L, 2.0L), Expedition, Explorer (3.5L GTDI), F-150, Fiesta (1.0L, 1.6L GTDI), Flex (3.5L GTDI), Focus, Fusion (1.5L, 2.0L), MKC, MKS (3.5L), MKT (2.0L, 3.5L), MKZ (2.0L), Mustang, Navigator, Taurus (2.0L, 3.5L GTDI), Transit (3.5L GTDI), Transit Connect (1.6L) |
128 Pin PCM
| Item | Number | Description |
|---|---|---|
| 1 | - | E Connector |
| 2 | - | B Connector |
| 3 | - | T Connector |

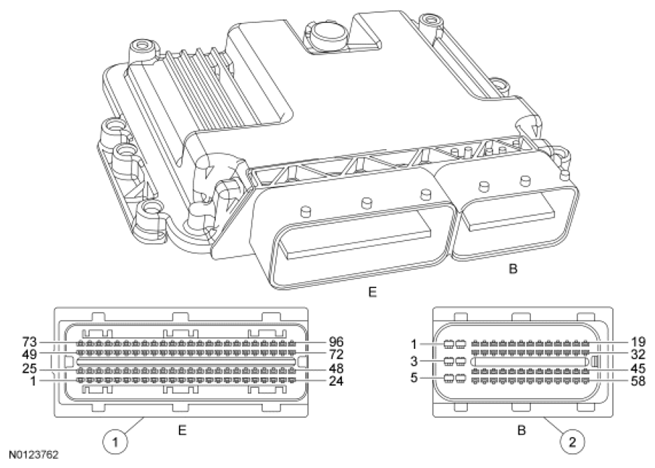

154 Pin PCM
| Item | Number | Description |
|---|---|---|
| 1 | - | E Connector |
| 2 | - | B Connector |
190 Pin PCM
| Item | Number | Description |
|---|---|---|
| 1 | - | B Connector |
| 2 | - | E Connector |
| 3 | - | T Connector |
198 Pin PCM
| Item | Number | Description |
|---|---|---|
| 1 | - | E Connector |
| 2 | - | B Connector |
PCM Locations
For PCM location, removal and installation procedures, refer to the service information , Electronic Engine Controls.
