Front Seat: Installation

1.

To install, reverse the removal procedure.

2.

Install the front seat bolts in the following sequence.
1. 1.

  Install the rear inboard bolt.
  Torque

  : 30 lb.ft (40 Nm)
1. 2.

  Install the rear outboard bolt.
  Torque

  : 30 lb.ft (40 Nm)
1. 3.

  Install the front inboard bolt.
  Torque

  : 30 lb.ft (40 Nm)
1. 4.

  Install the front outboard bolt.
  Torque

  : 30 lb.ft (40 Nm)

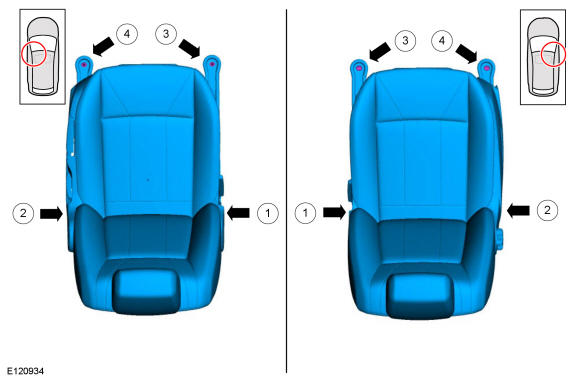

GFD47085

Courtesy of FORD MOTOR COMPANY

3.

Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering
