Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. REFER to: WHEEL AND TIRE

2.

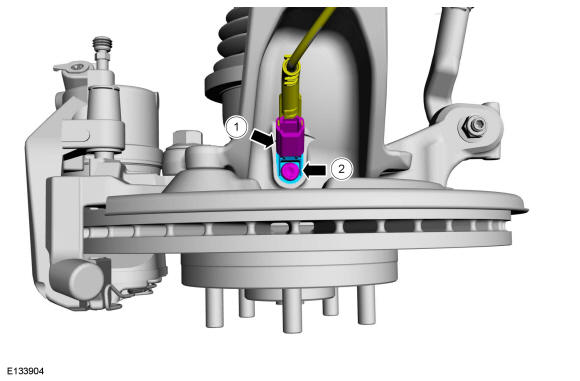

1. 1.

  Disconnect the front wheel speed sensor electrical connector.
1. 2.

  Remove the bolt and the front wheel speed sensor.
  Torque

  : 44 lb.in (5 Nm)

GFD44662

Courtesy of FORD MOTOR COMPANY
