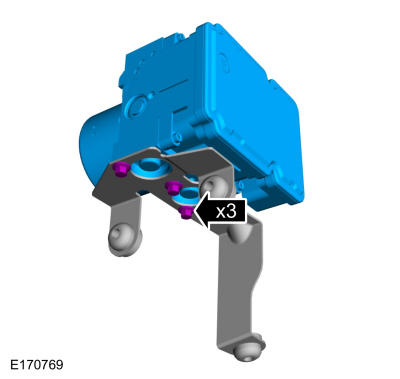

Hydraulic Control Unit (HCU): Installation
- 2.
If a new HCU/ ABS module was installed, download the ABS module configuration to the scan tool. REFER to: Module Configuration - System Operation and Component Description
- 3.NOTE: The following steps are necessary if a new HCU or ABS module was installed.
- Using a diagnostic scan tool, complete the PMI process for the ABS module following the on-screen instructions.
- Carry out the IVD initialization using the scan tool and following the diagnostic scan tool on-screen instructions.
- 4.
Bleed the brake system. REFER to: BRAKE SYSTEM PRESSURE BLEEDING
