Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

  1. 2.

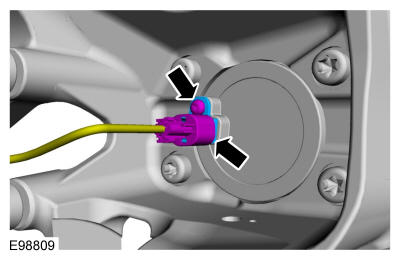

    • Disconnect the rear wheel speed sensor electrical connector.
    • Remove the bolt and the rear wheel speed sensor.

      Torque

      : 44 lb.in (5 Nm)

GFD44663Courtesy of FORD MOTOR COMPANY

  1. 3.

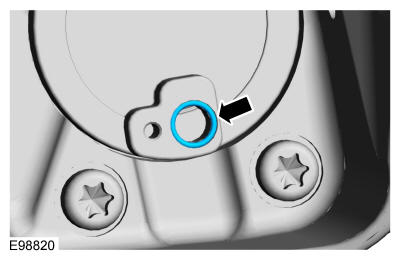

    NOTE: The O-ring seal is to be reused unless damaged.

    Remove the O-ring seal.

GFD44664Courtesy of FORD MOTOR COMPANY
