Piston Ring End Gap

Special Tool(s) / General Equipment

Check

• 1.


  NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.
  NOTE: Piston rings should not be transferred from one piston to another.
  NOTE: The cylinder bore must be within specification for taper and out-of-round.

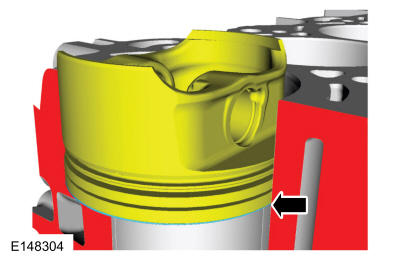

  Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

Courtesy of FORD MOTOR COMPANY

• 2.

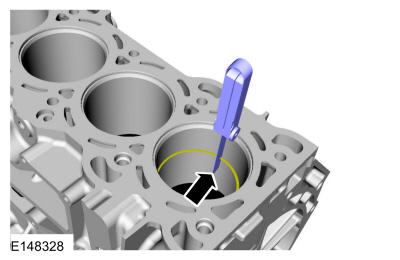

  Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gap.

  Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY
