Connector Repair Procedures

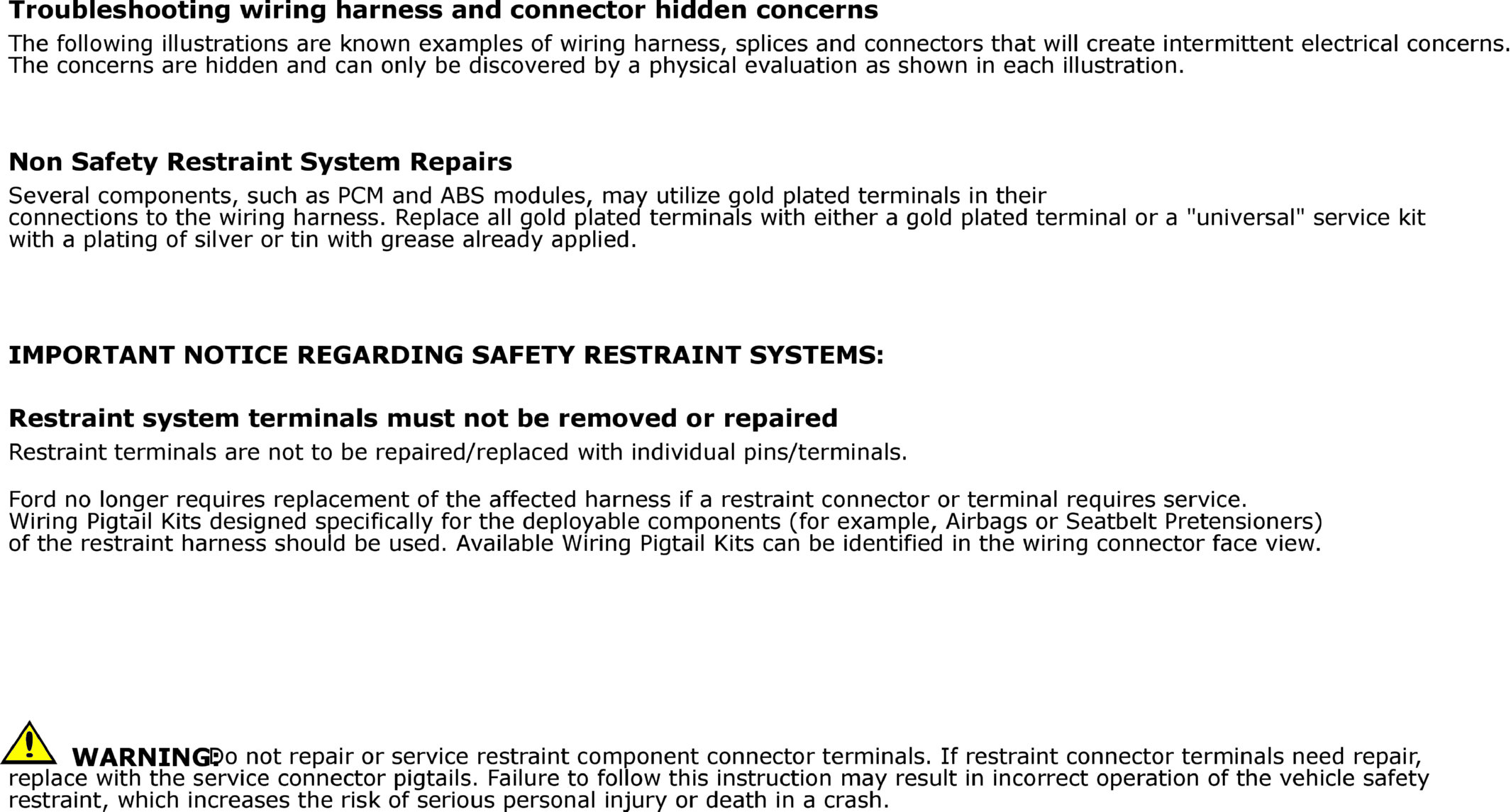

GFDW16947Courtesy of FORD MOTOR COMPANY
GFDW16948Courtesy of FORD MOTOR COMPANY

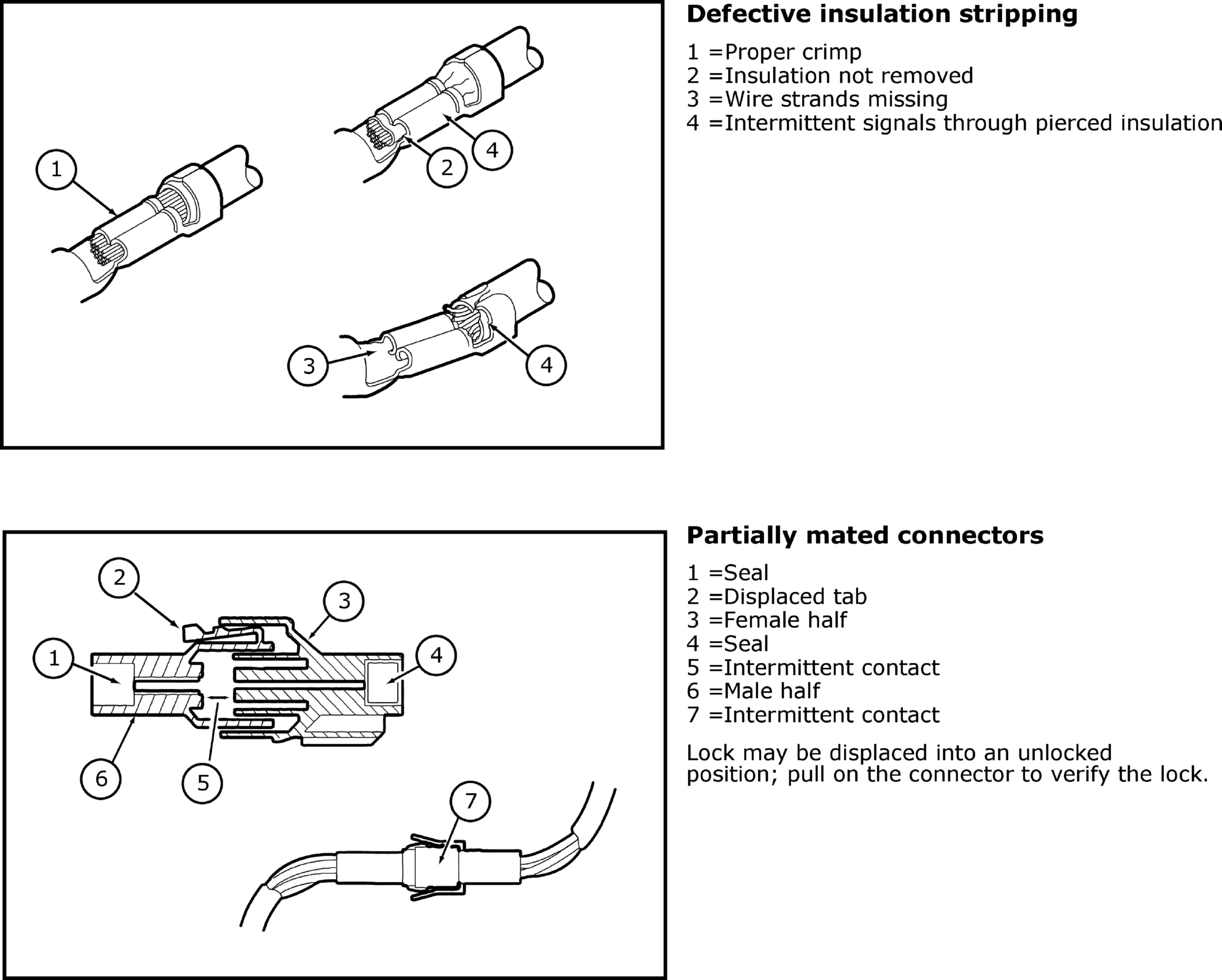

GFDW16949Courtesy of FORD MOTOR COMPANY

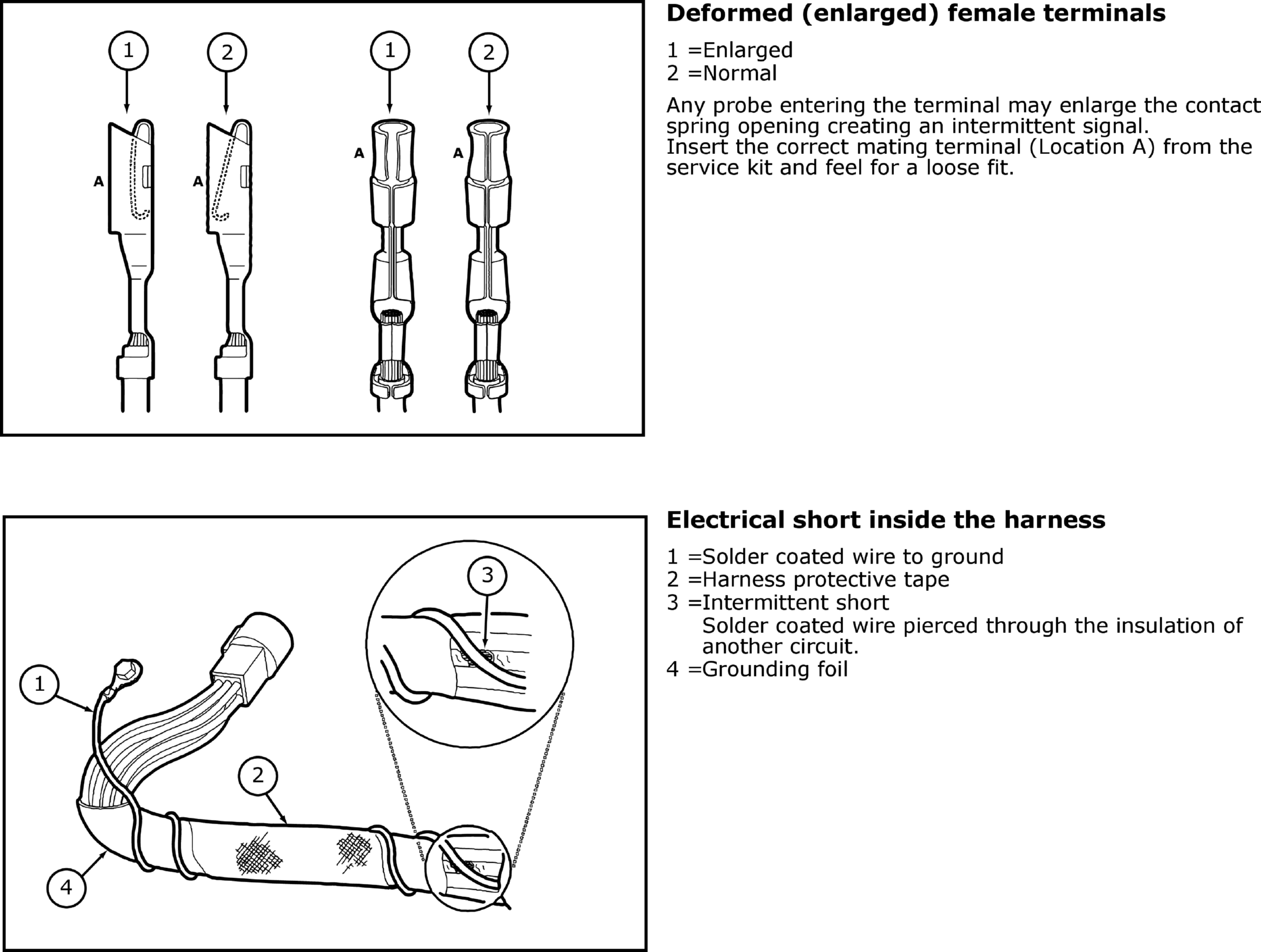

GFDW16950Courtesy of FORD MOTOR COMPANY

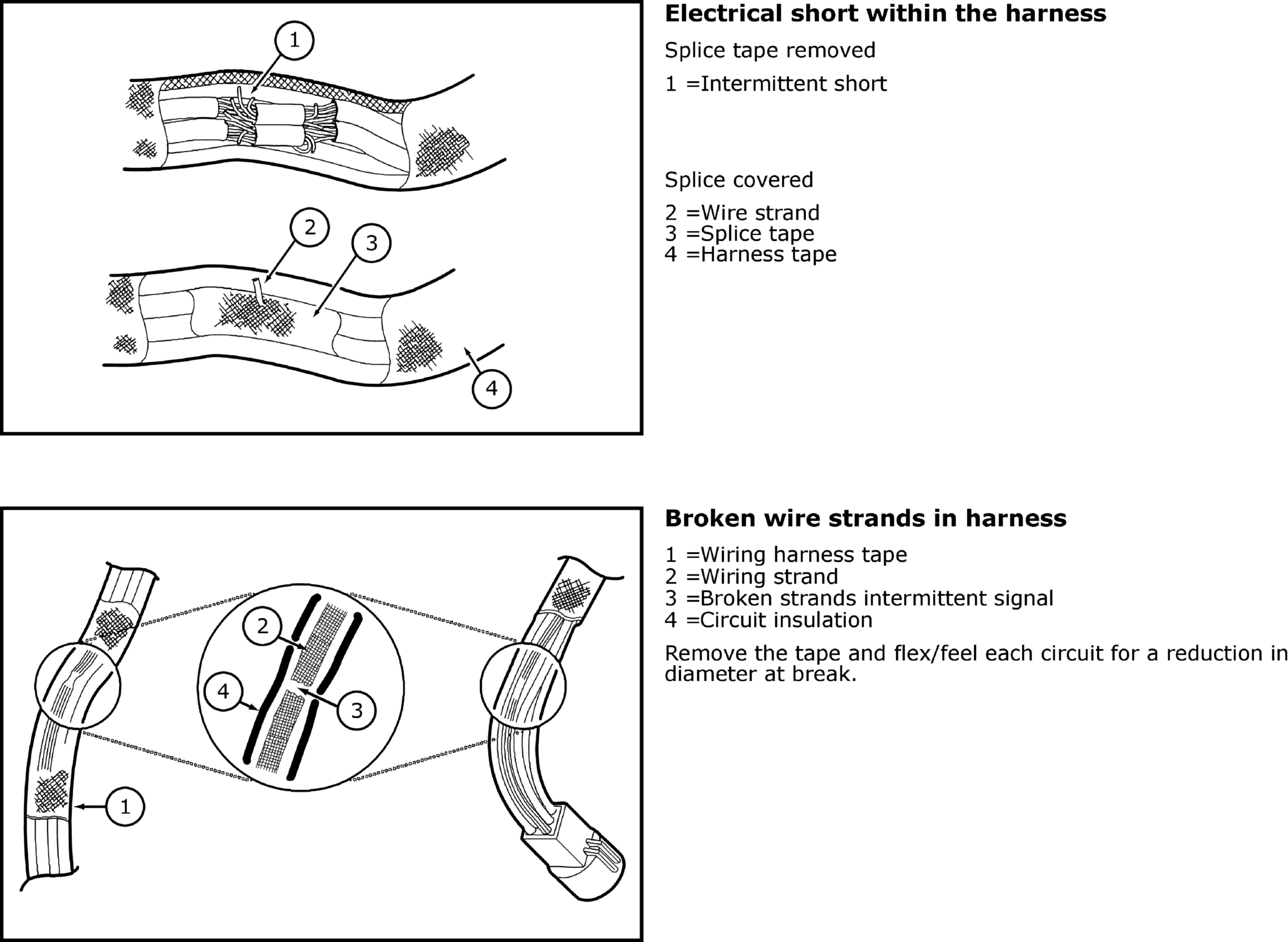

GFDW16951Courtesy of FORD MOTOR COMPANY

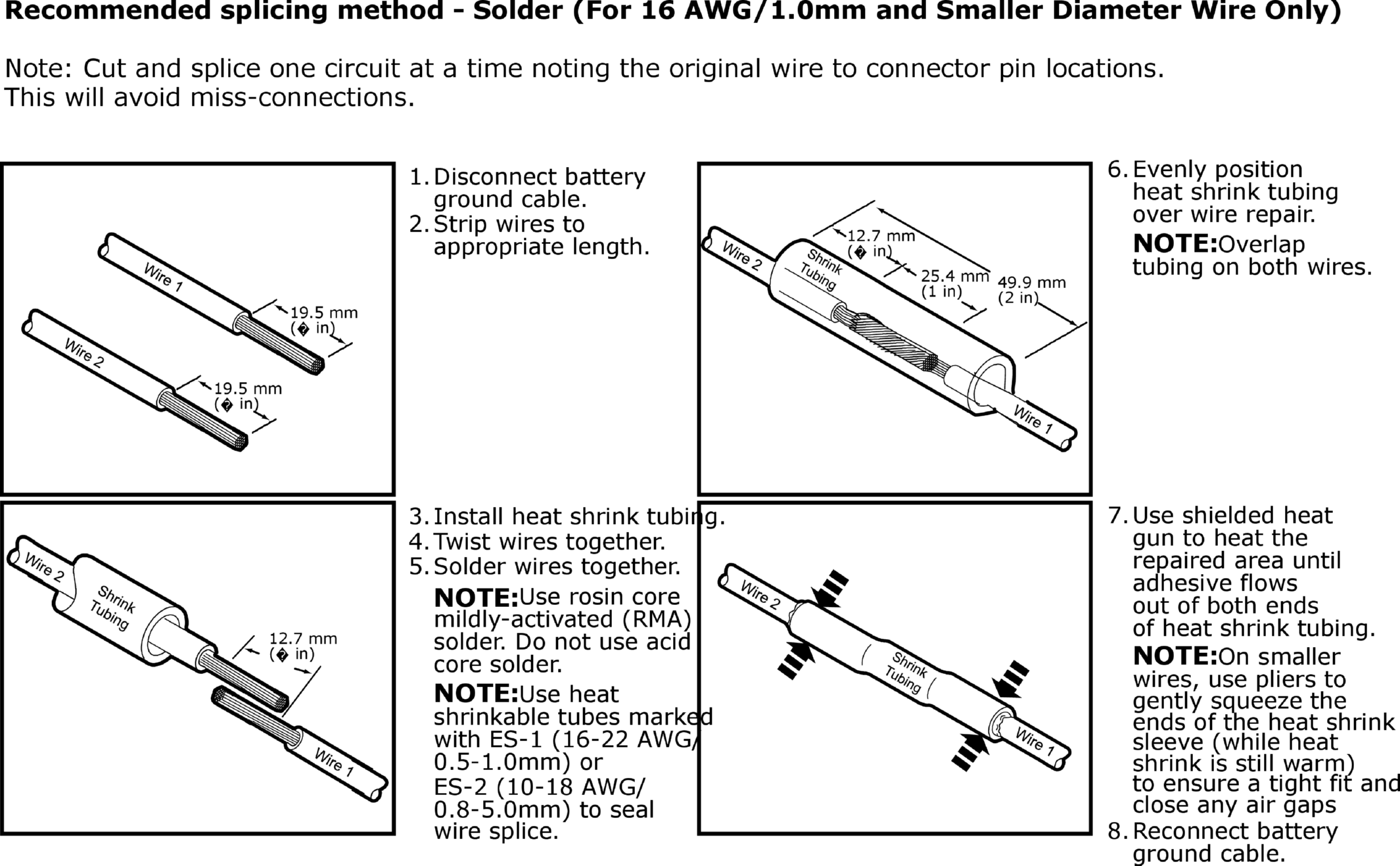

GFDW16952Courtesy of FORD MOTOR COMPANY

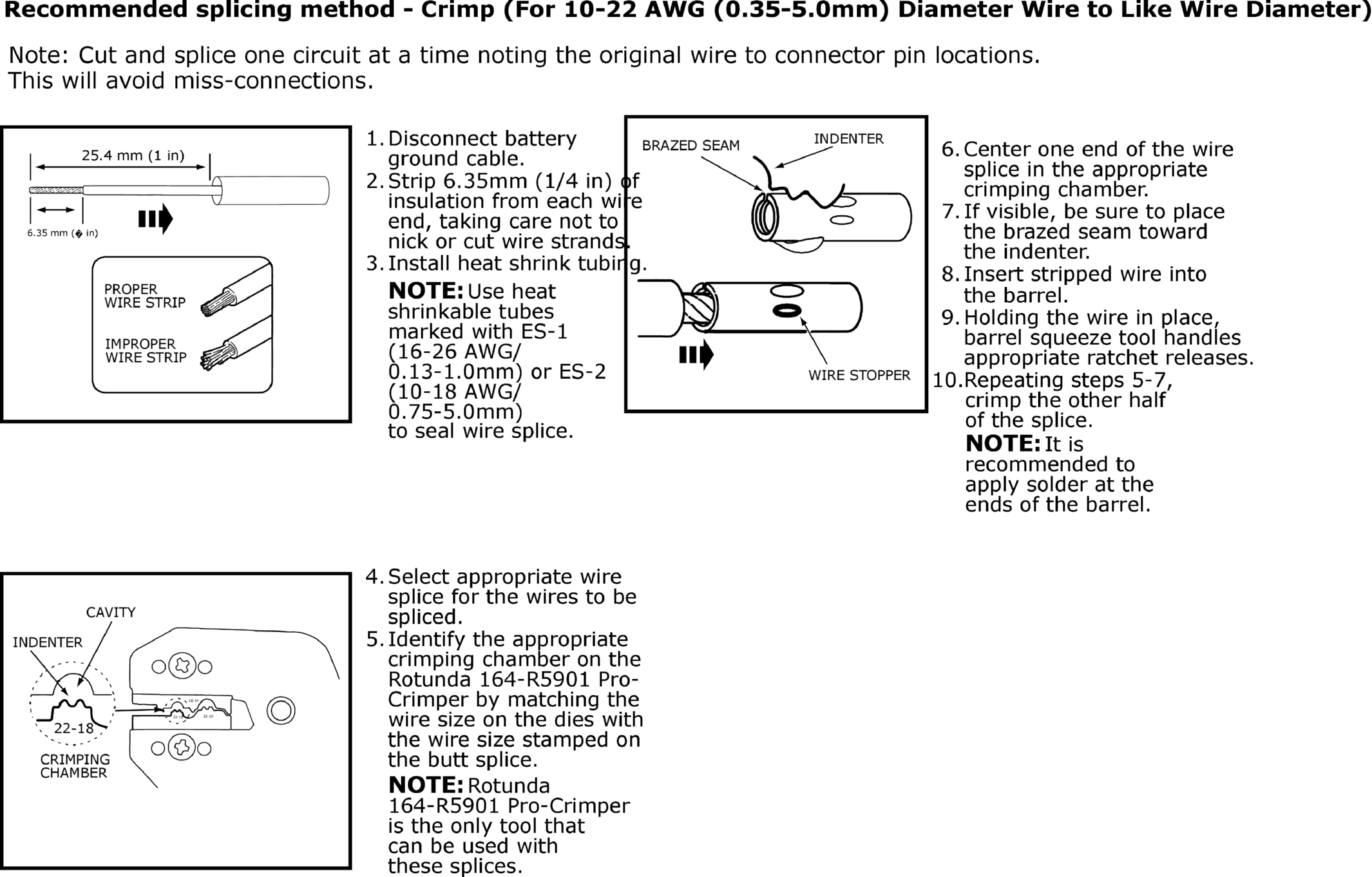

GFDW16953Courtesy of FORD MOTOR COMPANY

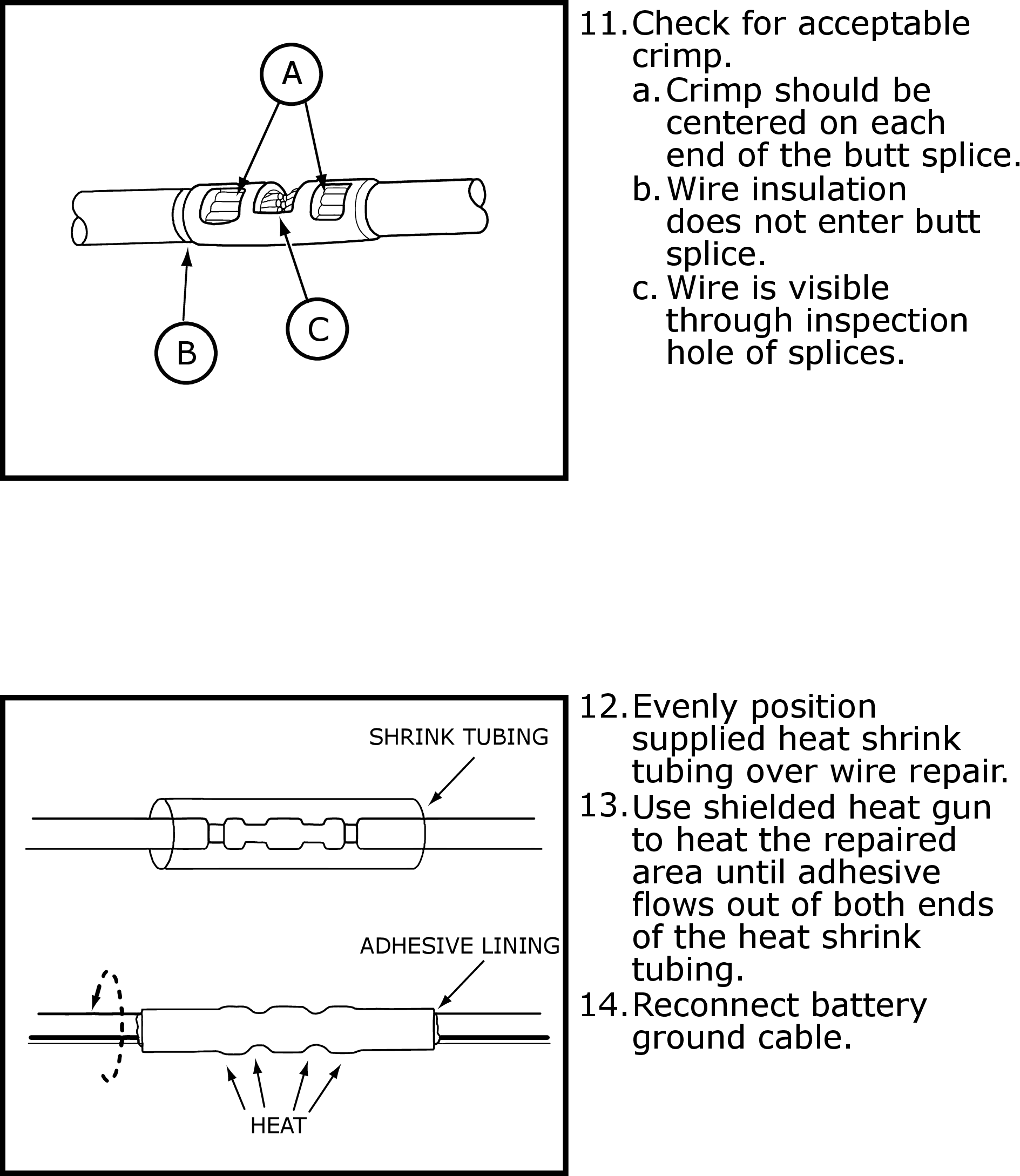

GFDW16954Courtesy of FORD MOTOR COMPANY

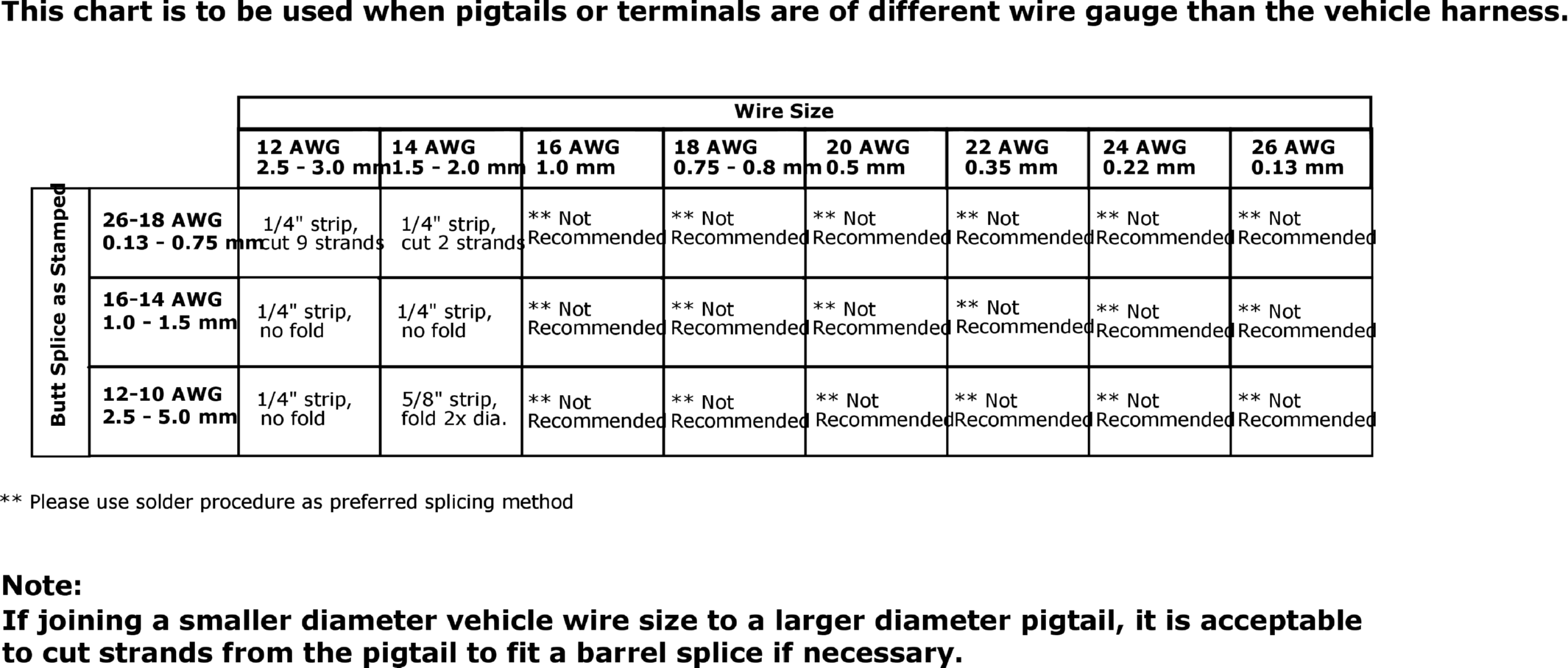

GFDW16955Courtesy of FORD MOTOR COMPANY
