OEM Ground Distribution: Grounds

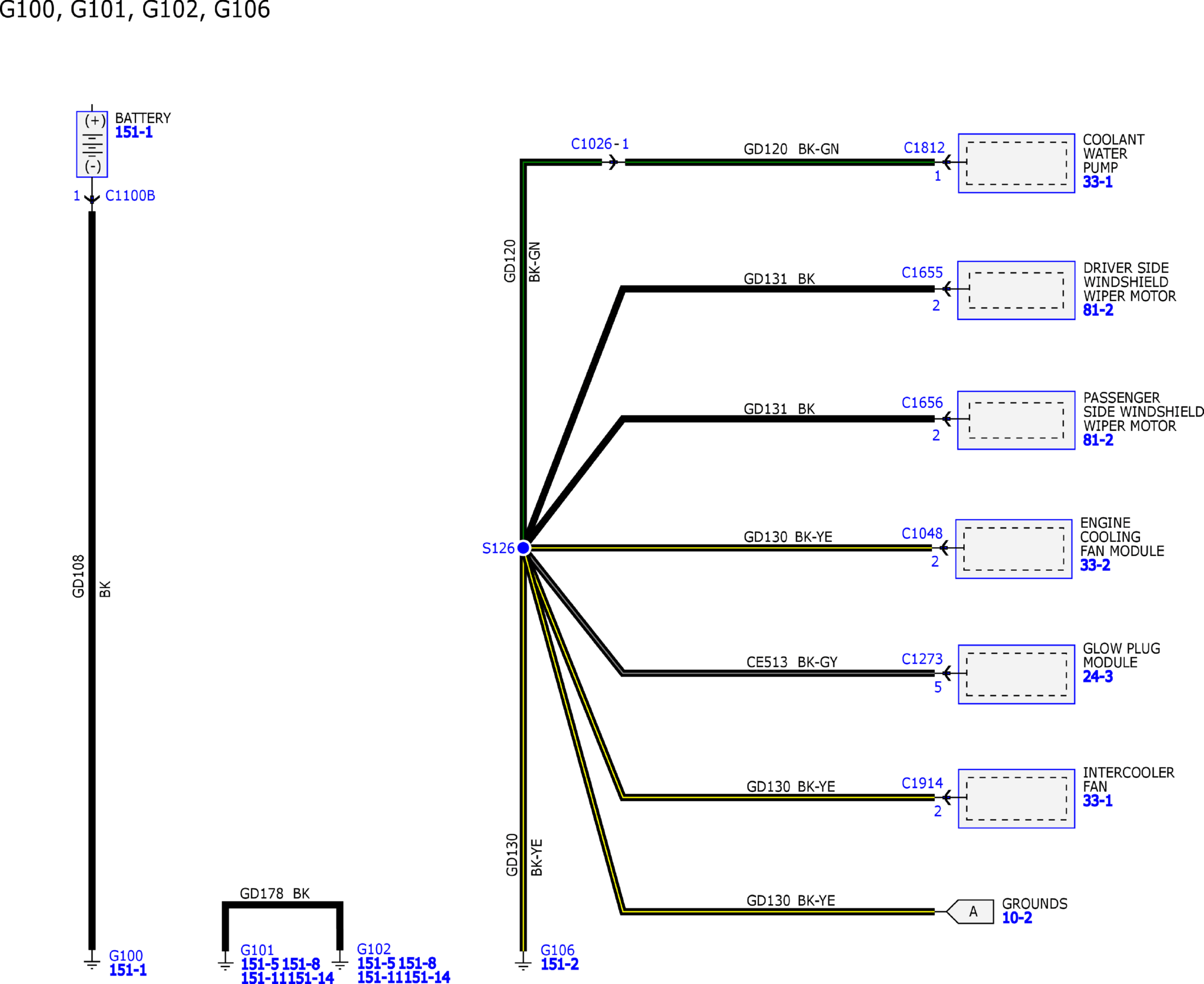

GFDW16970Courtesy of FORD MOTOR COMPANY

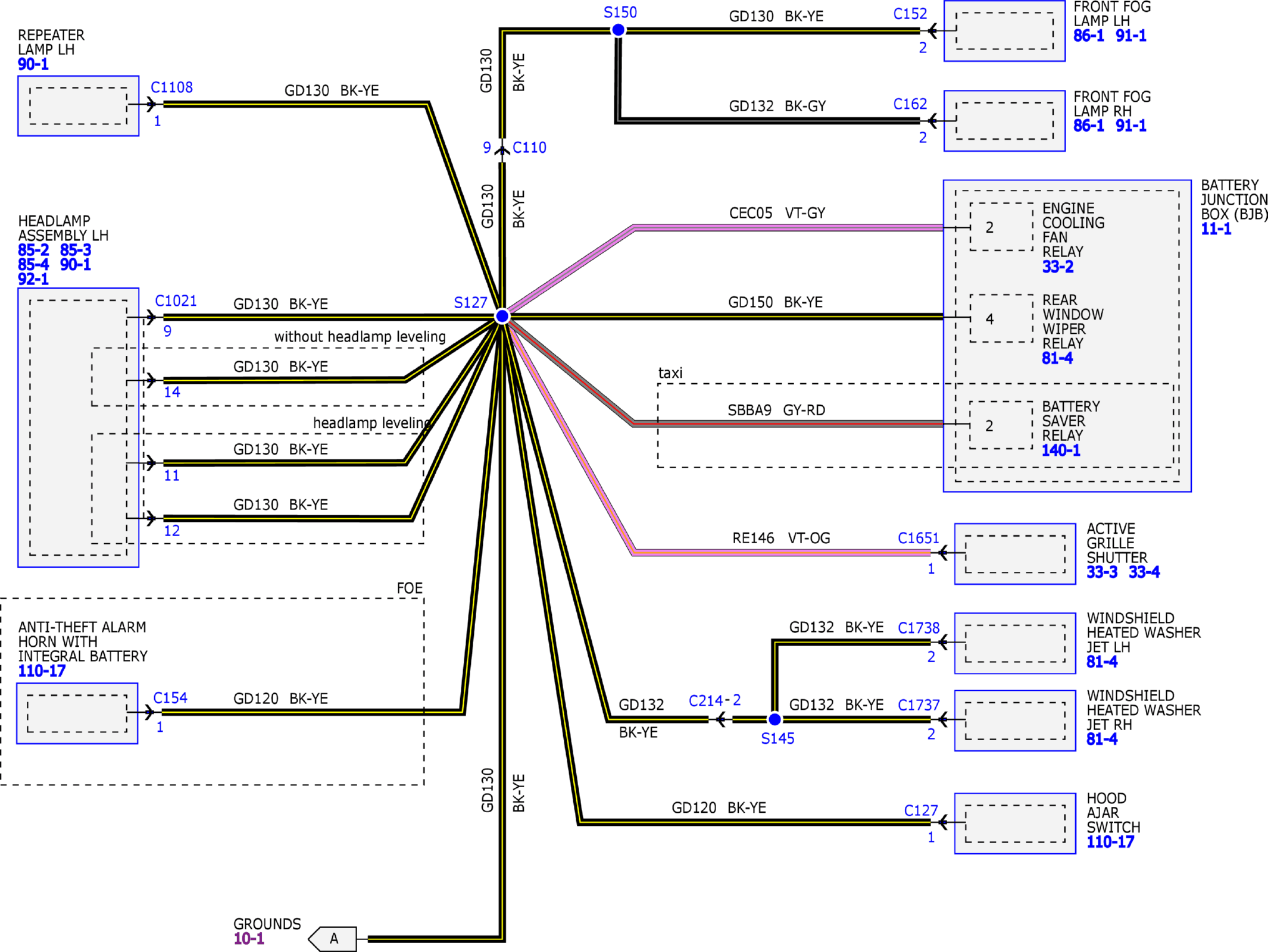

GFDW16971Courtesy of FORD MOTOR COMPANY

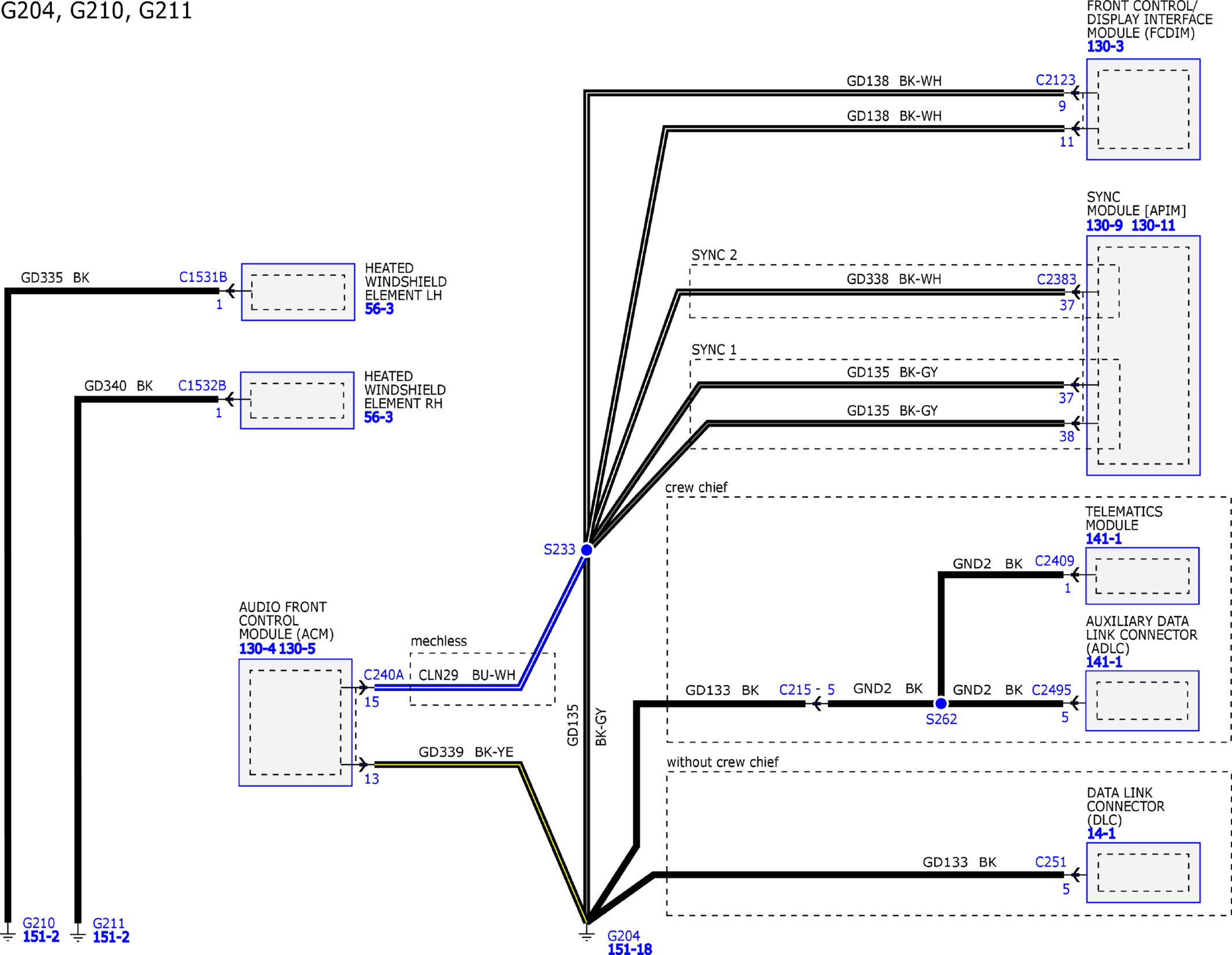

GFDW16972Courtesy of FORD MOTOR COMPANY

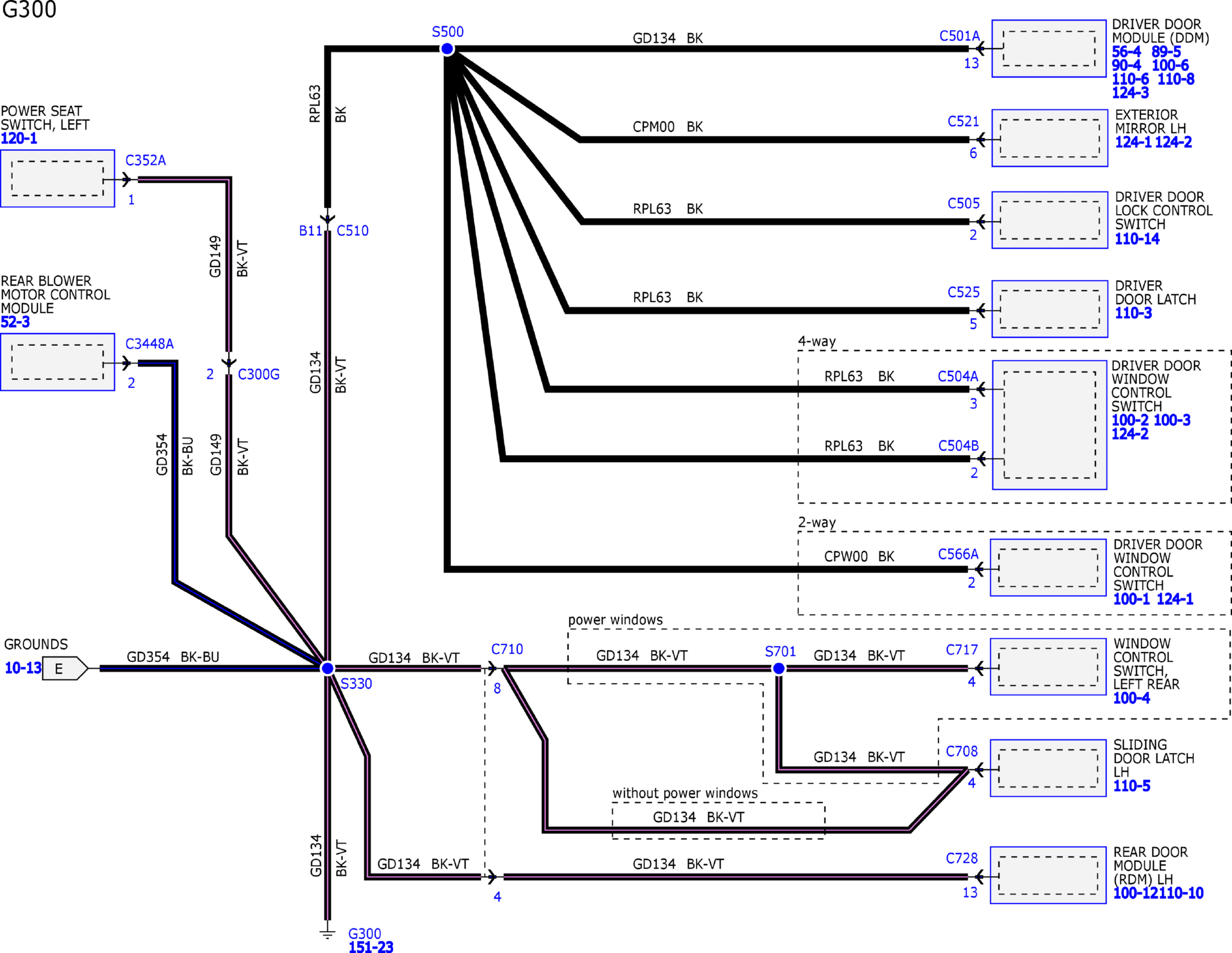

GFDW16973Courtesy of FORD MOTOR COMPANY

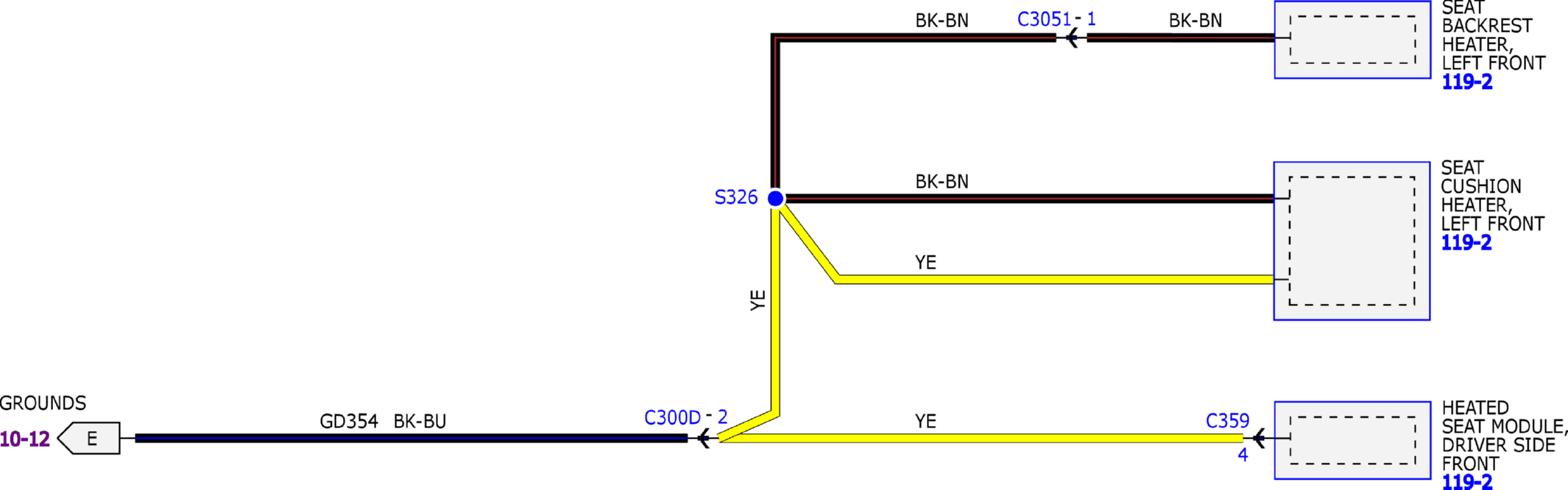

GFDW16974Courtesy of FORD MOTOR COMPANY

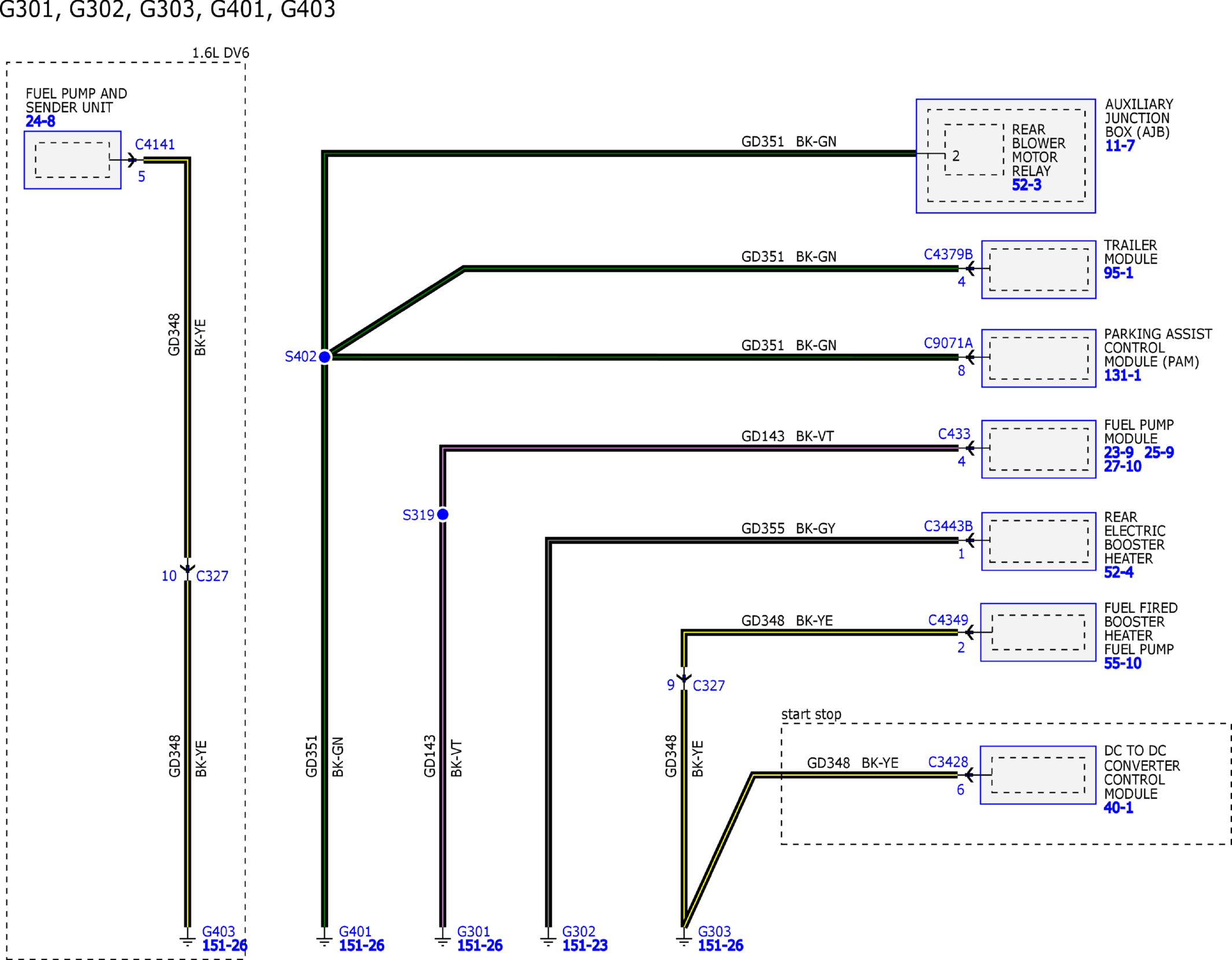

GFDW16975Courtesy of FORD MOTOR COMPANY

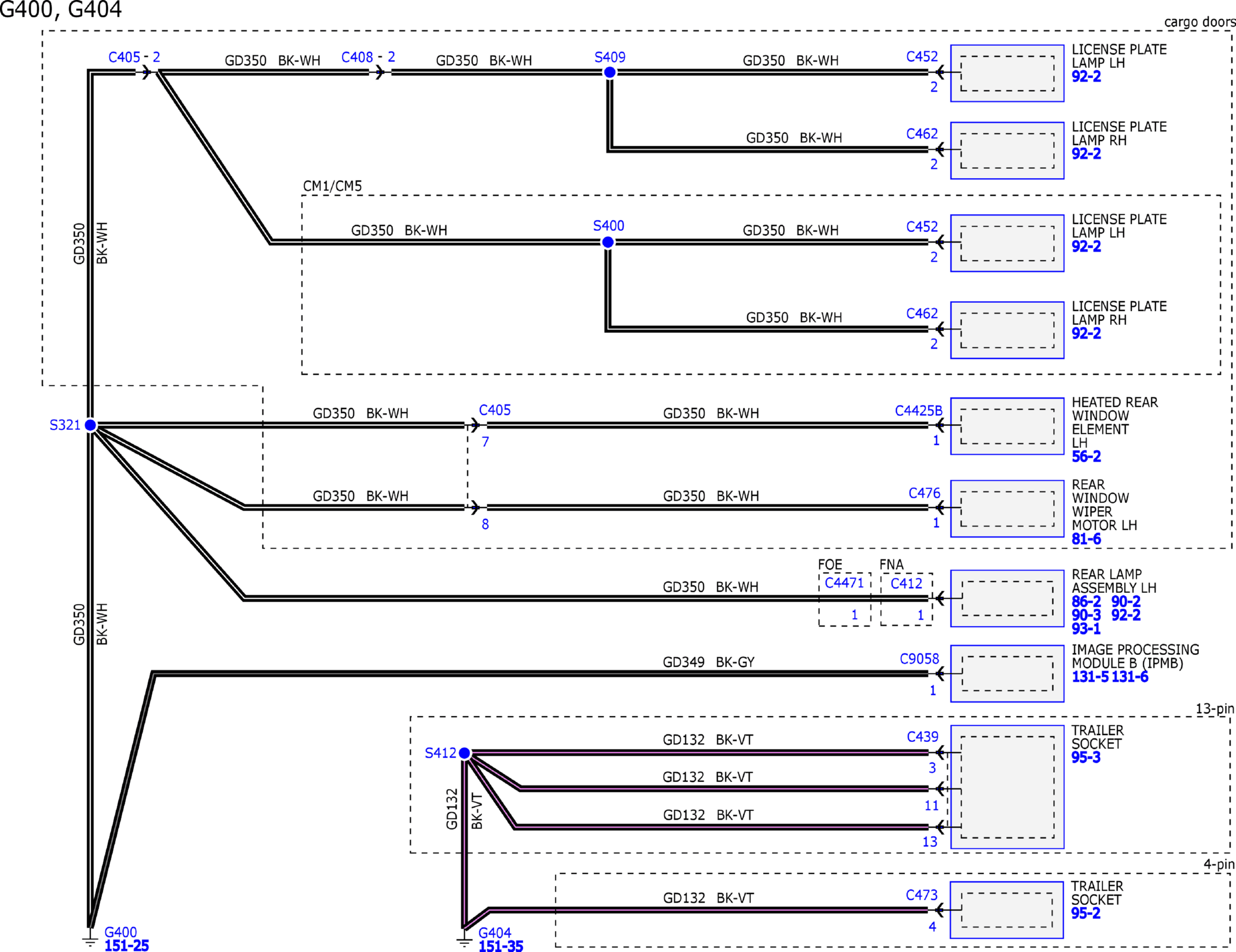

GFDW16976Courtesy of FORD MOTOR COMPANY

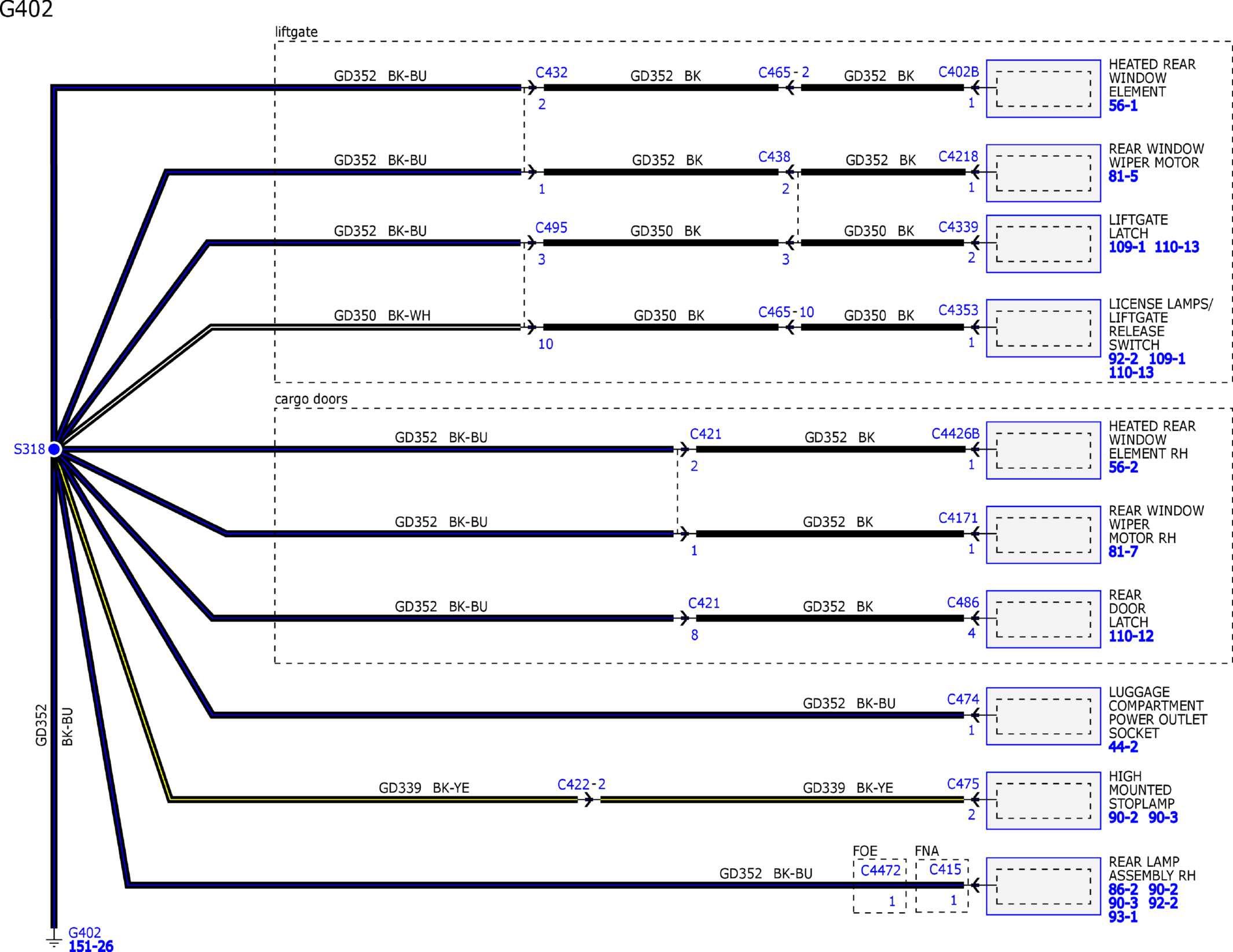

GFDW16977Courtesy of FORD MOTOR COMPANY

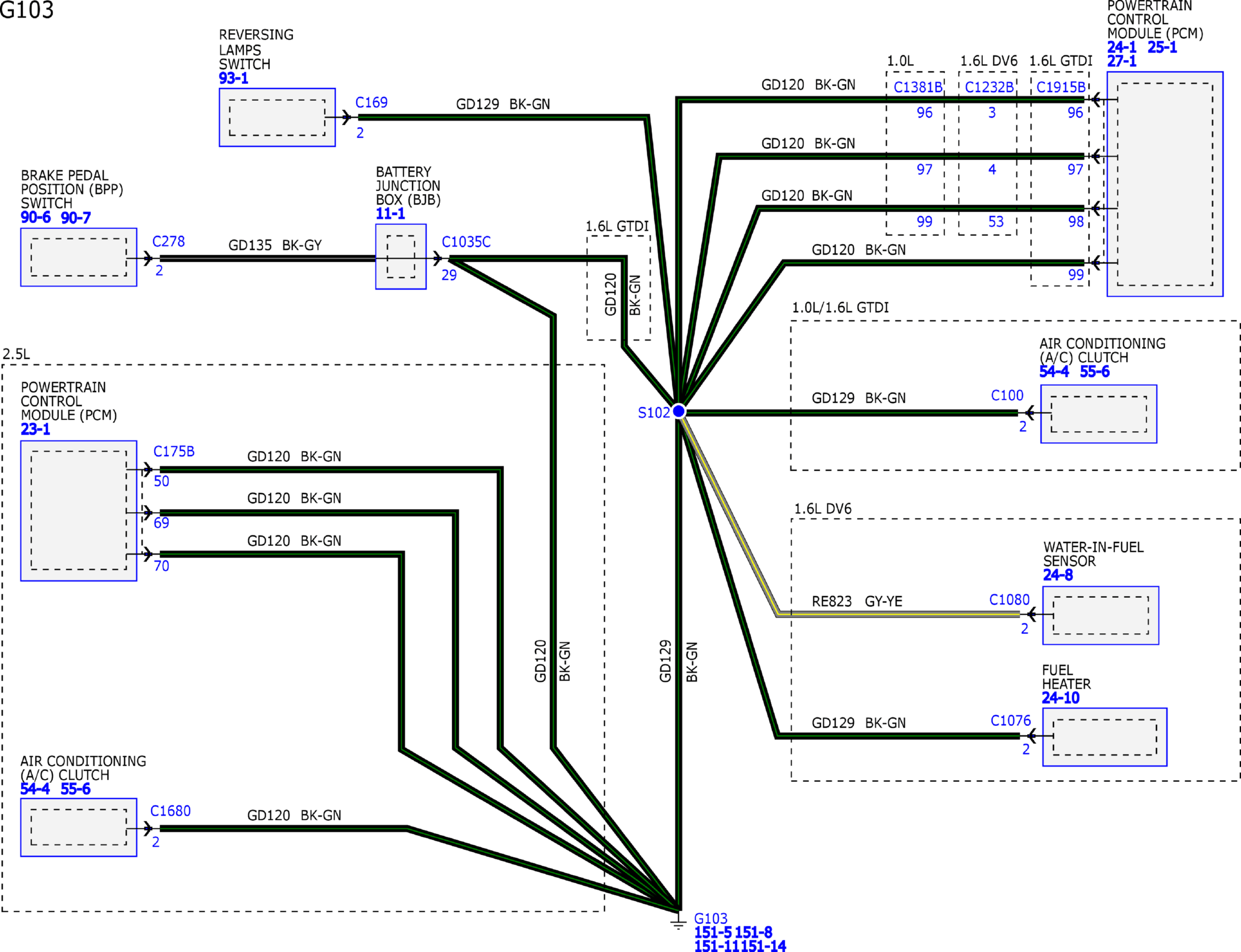

GFDW16978Courtesy of FORD MOTOR COMPANY

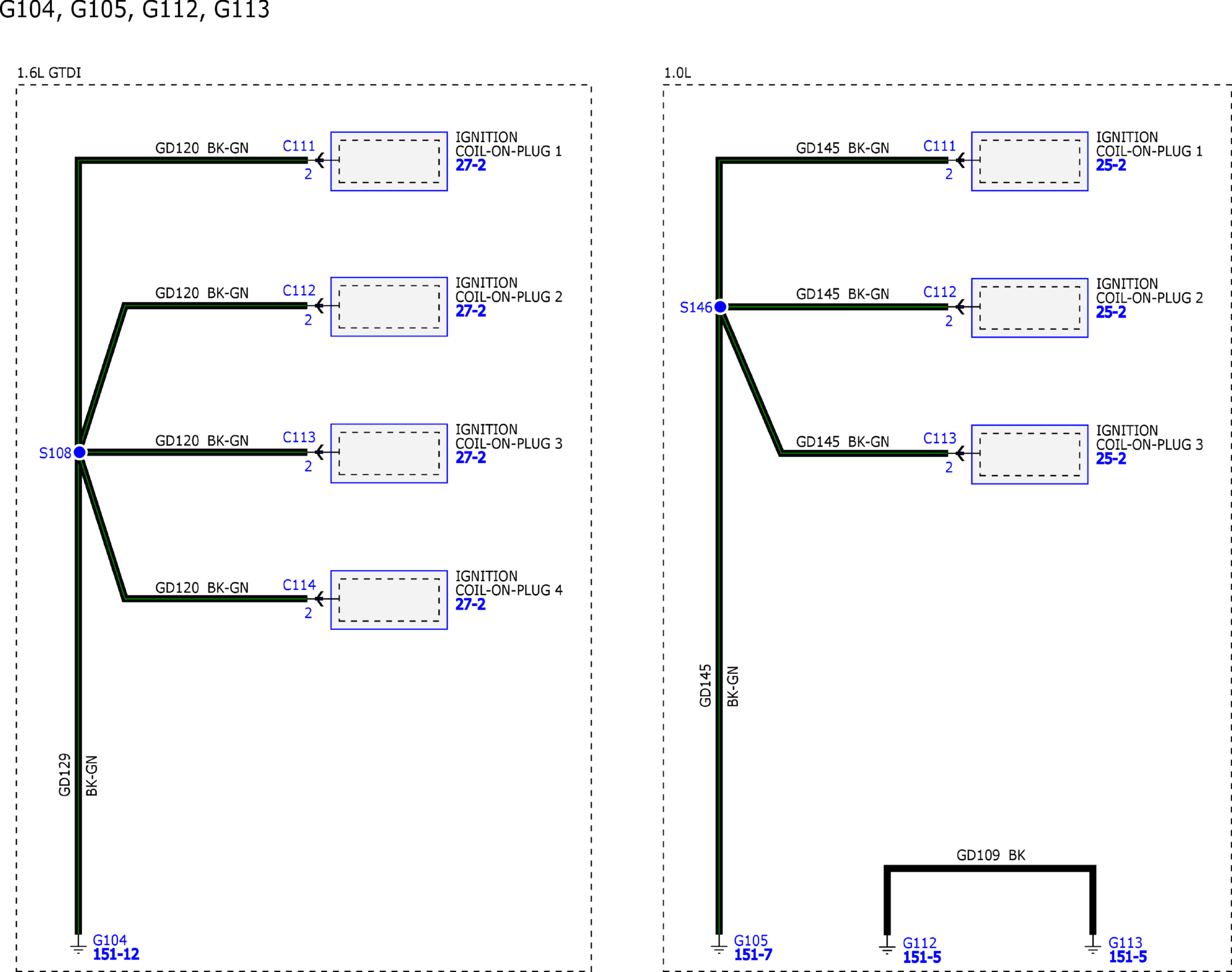

GFDW16979Courtesy of FORD MOTOR COMPANY
GFDW16980Courtesy of FORD MOTOR COMPANY

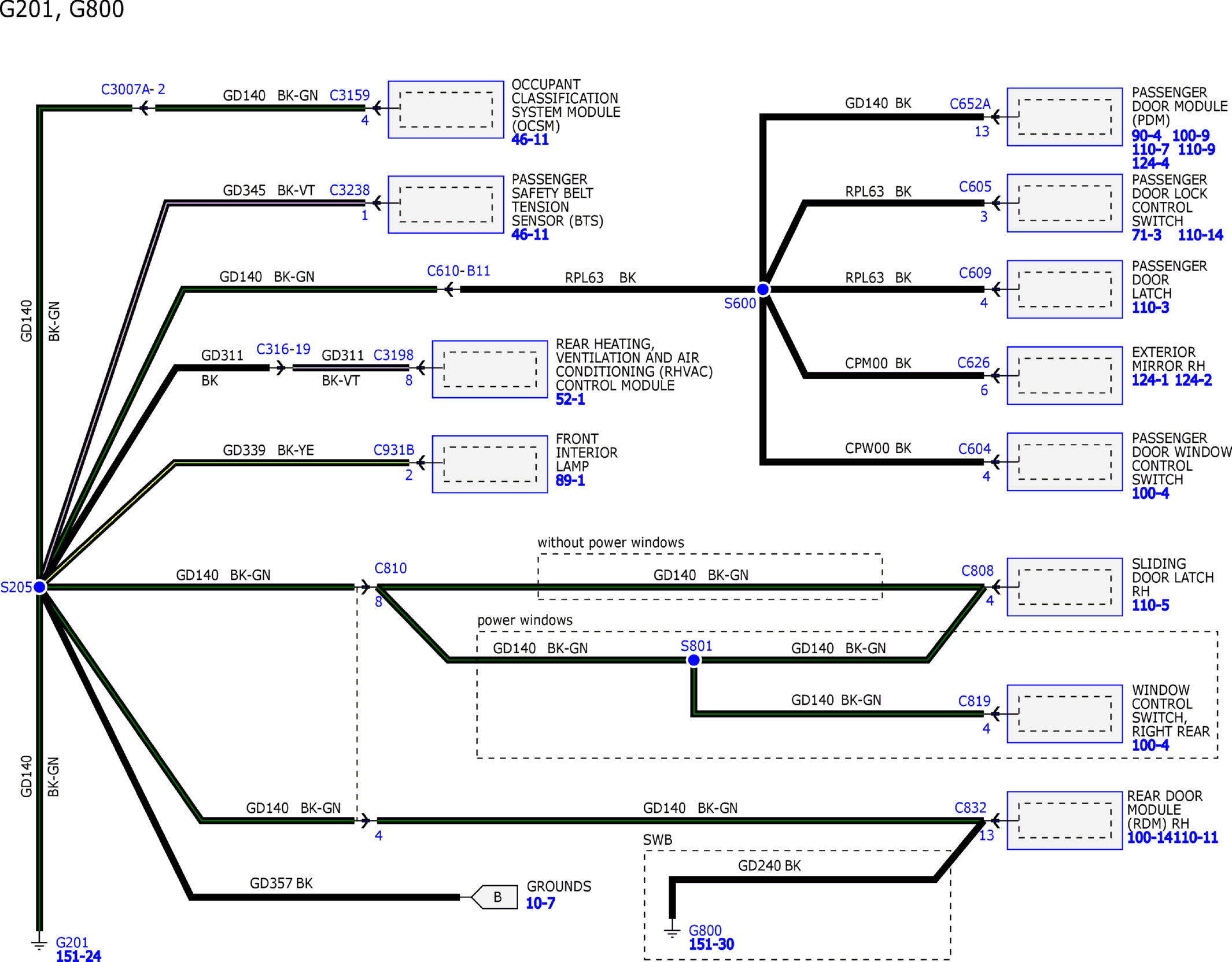

GFDW16981Courtesy of FORD MOTOR COMPANY

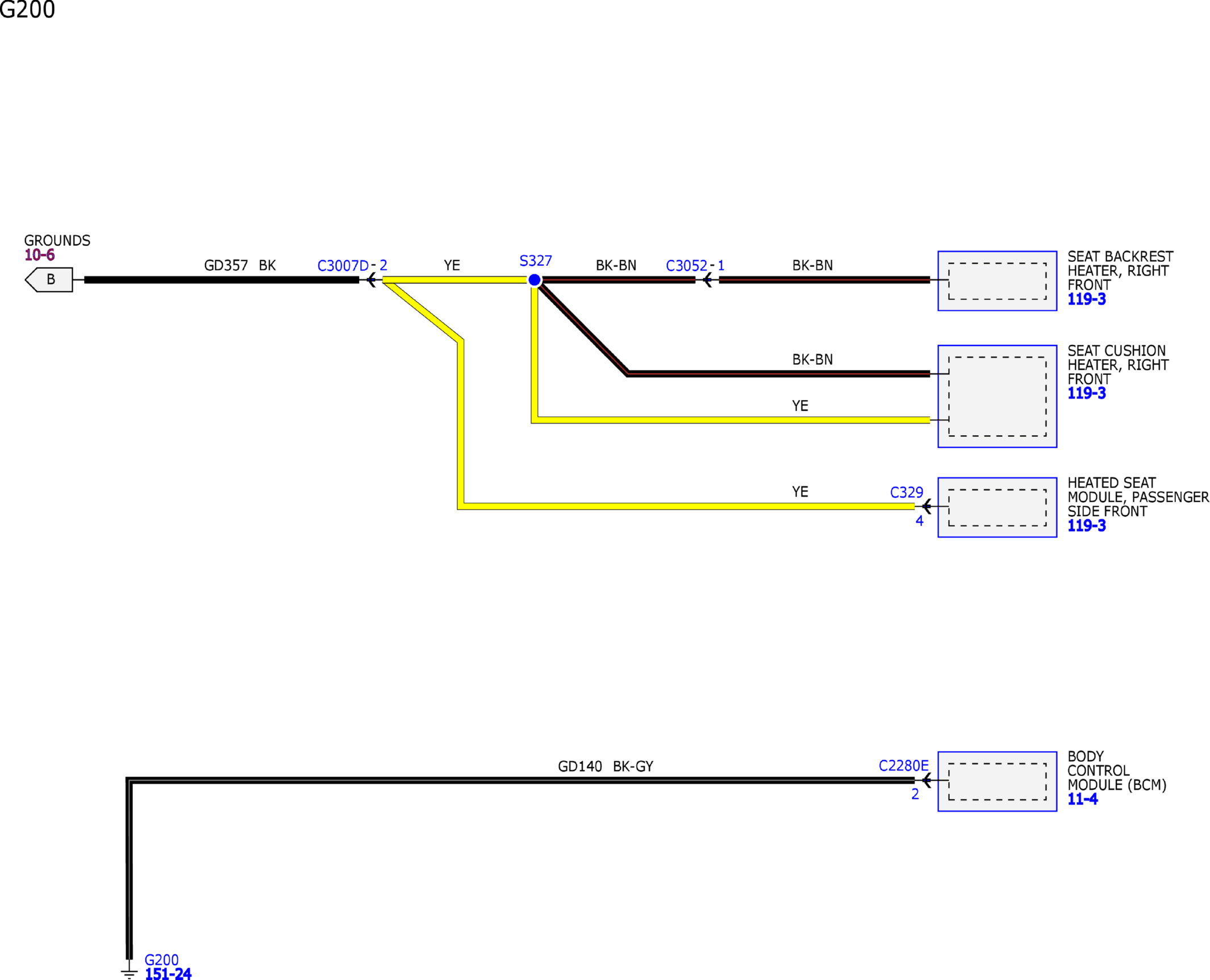

GFDW16982Courtesy of FORD MOTOR COMPANY

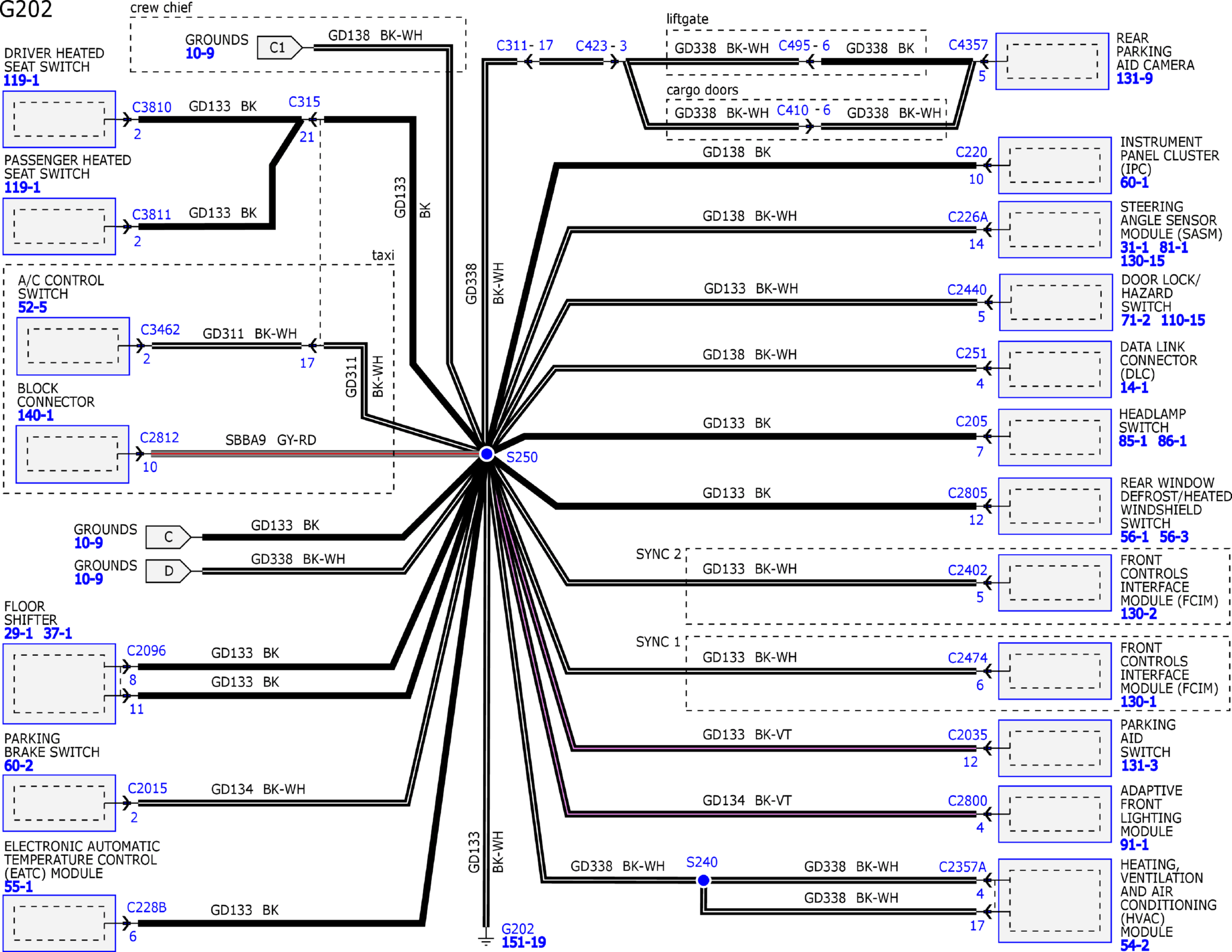

GFDW16983Courtesy of FORD MOTOR COMPANY

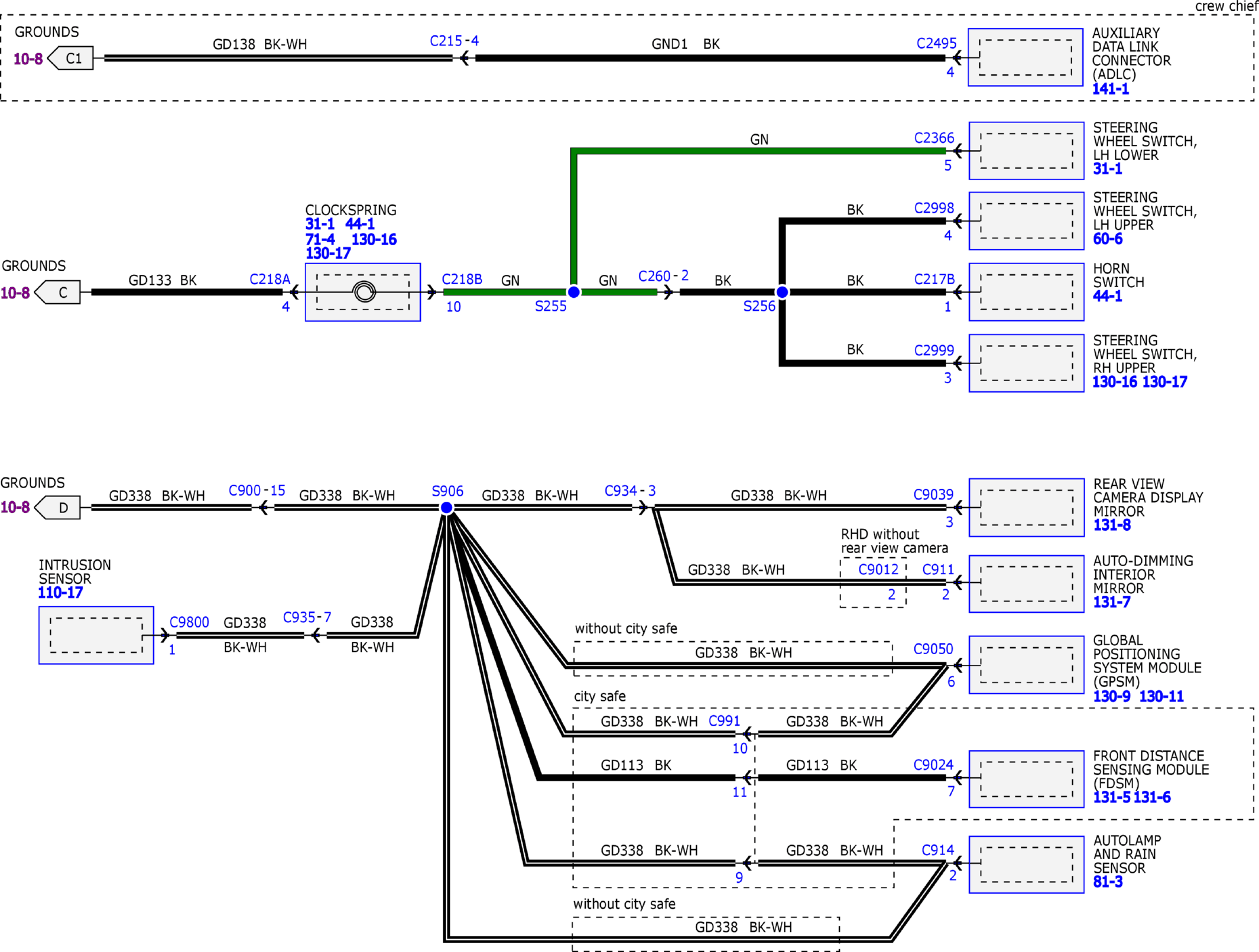

GFDW16984Courtesy of FORD MOTOR COMPANY

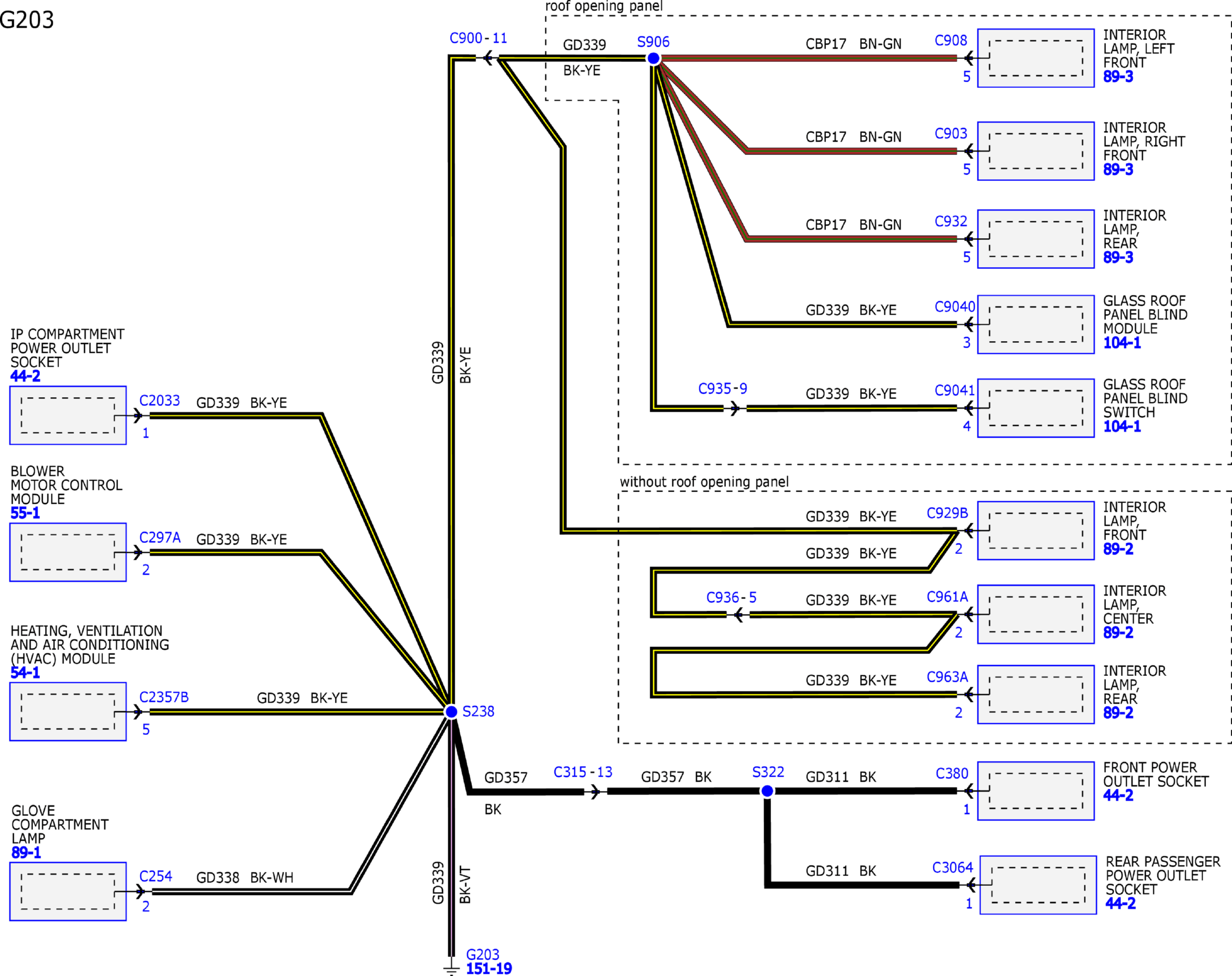

GFDW16985Courtesy of FORD MOTOR COMPANY
