Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the driver airbag. Refer to: Driver Airbag

2.

NOTE: Make sure that the road wheels are in the straight ahead position.

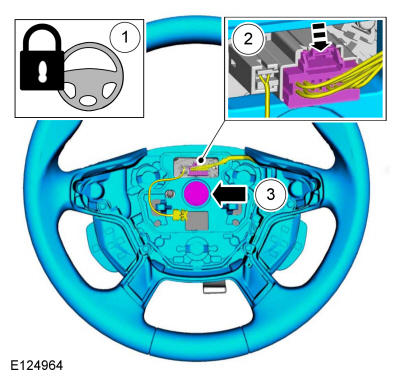

- 1.

  Lock the steering wheel.
- 2.

  Disconnect the steering wheel switches electrical connector.
- 3.

  Remove the steering wheel bolt and the steering wheel.
  Torque

  : 35 lb.ft (48 Nm)

GFD44676

Courtesy of FORD MOTOR COMPANY

3.

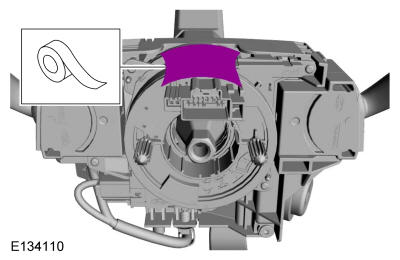

NOTE: Make sure that the clockspring rotor does not rotate.

NOTE: Make sure that the clockspring pins are not bent or damaged.

Tape the clockspring rotor to the outer housing to keep it from rotating. Use the General Equipment: Adhesive Tape

GFD44677

Courtesy of FORD MOTOR COMPANY
