Selector Lever Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

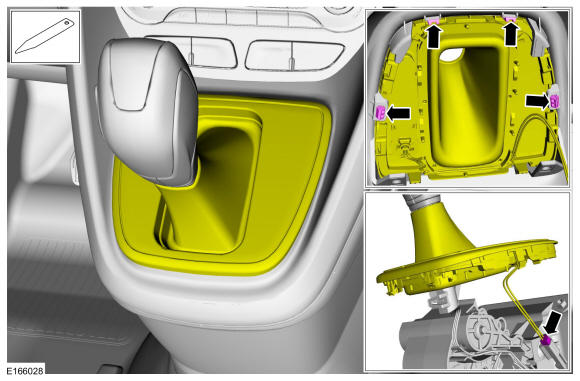

Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.

GFD46344

Courtesy of FORD MOTOR COMPANY

2.

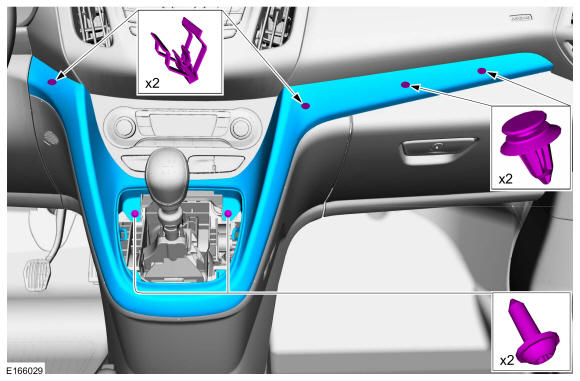

Remove the retainers, release the clips and remove the gearshift housing upper cover.

GFD46345

Courtesy of FORD MOTOR COMPANY

3.

Remove the floor console. Refer to: Floor Console - Vehicles With: Single Passenger Seat

4.

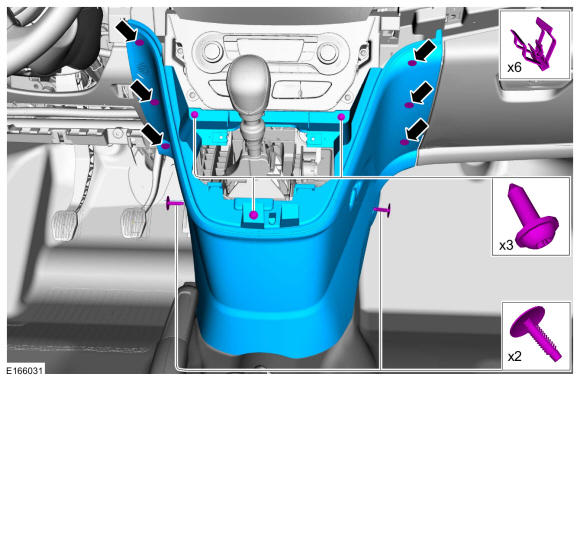

Remove the retainers, release the clips and remove the gearshift housing lower cover.

GFD46346

Courtesy of FORD MOTOR COMPANY

5.

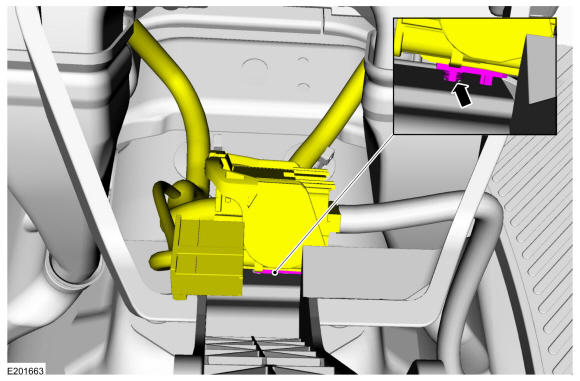

Disconnect the wiring harness bulkhead connector from the bracket and position the harness aside.

GFD46347

Courtesy of FORD MOTOR COMPANY

6.

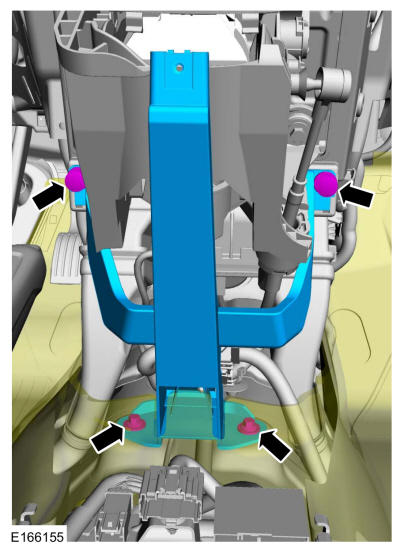

Remove the bolts, push pin and the gearshift housing support bracket.
Torque

: Nm

GFD46348

Courtesy of FORD MOTOR COMPANY

7.

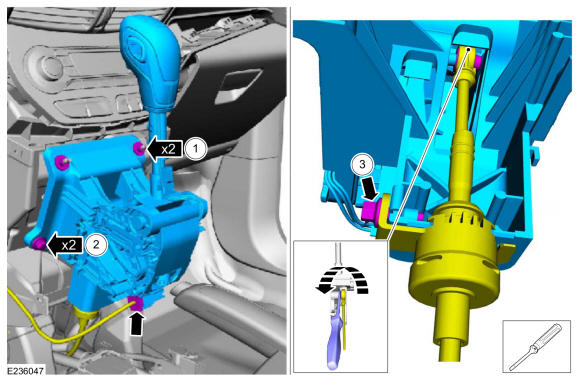

Remove the selector lever assembly.
1. 1.

  Remove the nuts.
  Torque

  : 89 lb.in (10 Nm)
1. 2.

  Remove the bolts and disconnect the selector lever electrical connector.
  Torque

  : 80 lb.in (9 Nm)
1. 3.

  NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown below to pry the cable end off the post as close to the post as possible.

  Remove the bolt and, using a screwdriver, pry the selector lever cable end from the selector lever and disconnect the selector lever cable clip from the selector lever assembly. Remove the selector lever assembly.

  Torque

  : 62 lb.in (7 Nm)

GFD46349

Courtesy of FORD MOTOR COMPANY
