Audio System/Navigation - Am/Fm/Cd/Sync

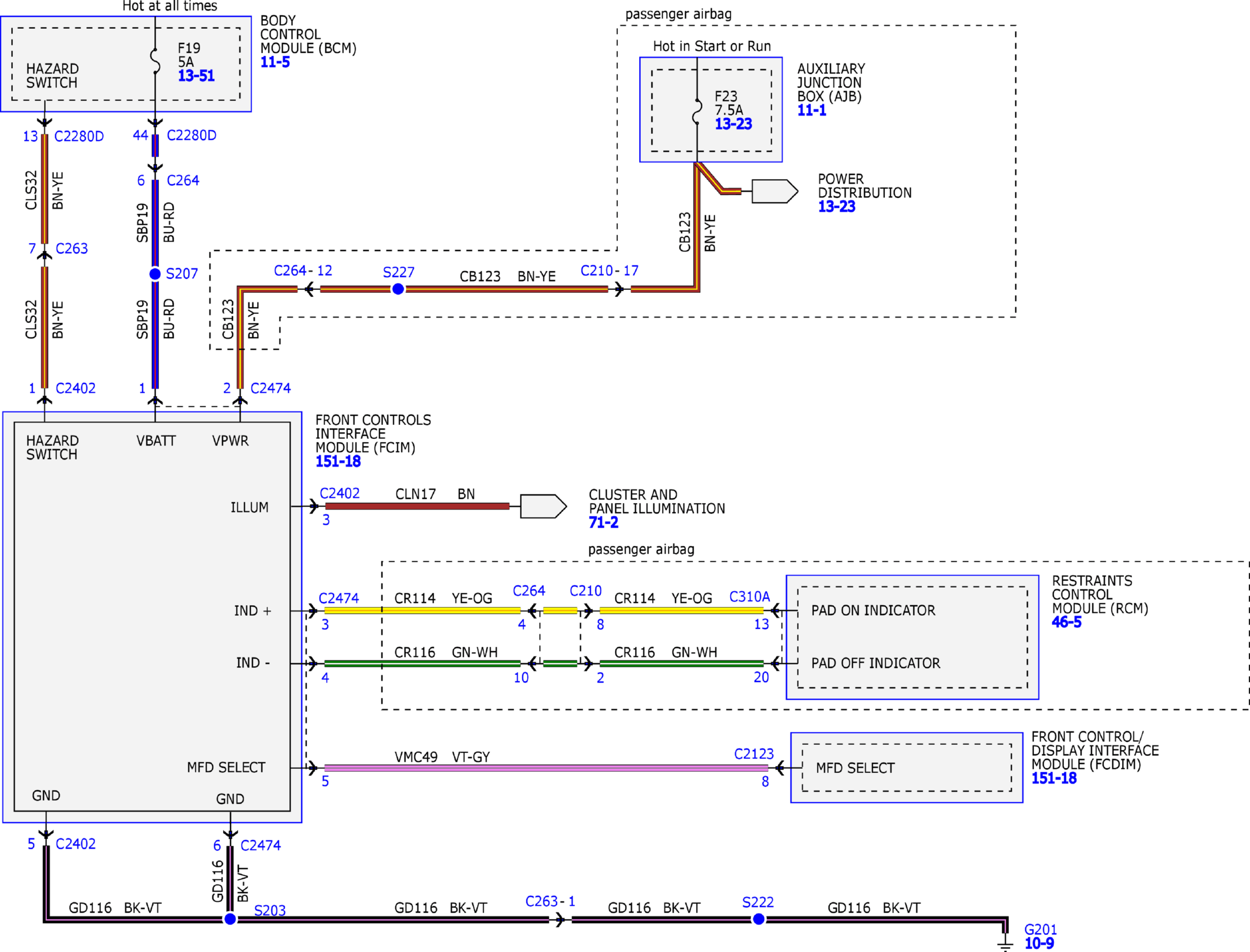

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (1 of 11)
GFDW28934Courtesy of FORD MOTOR COMPANY

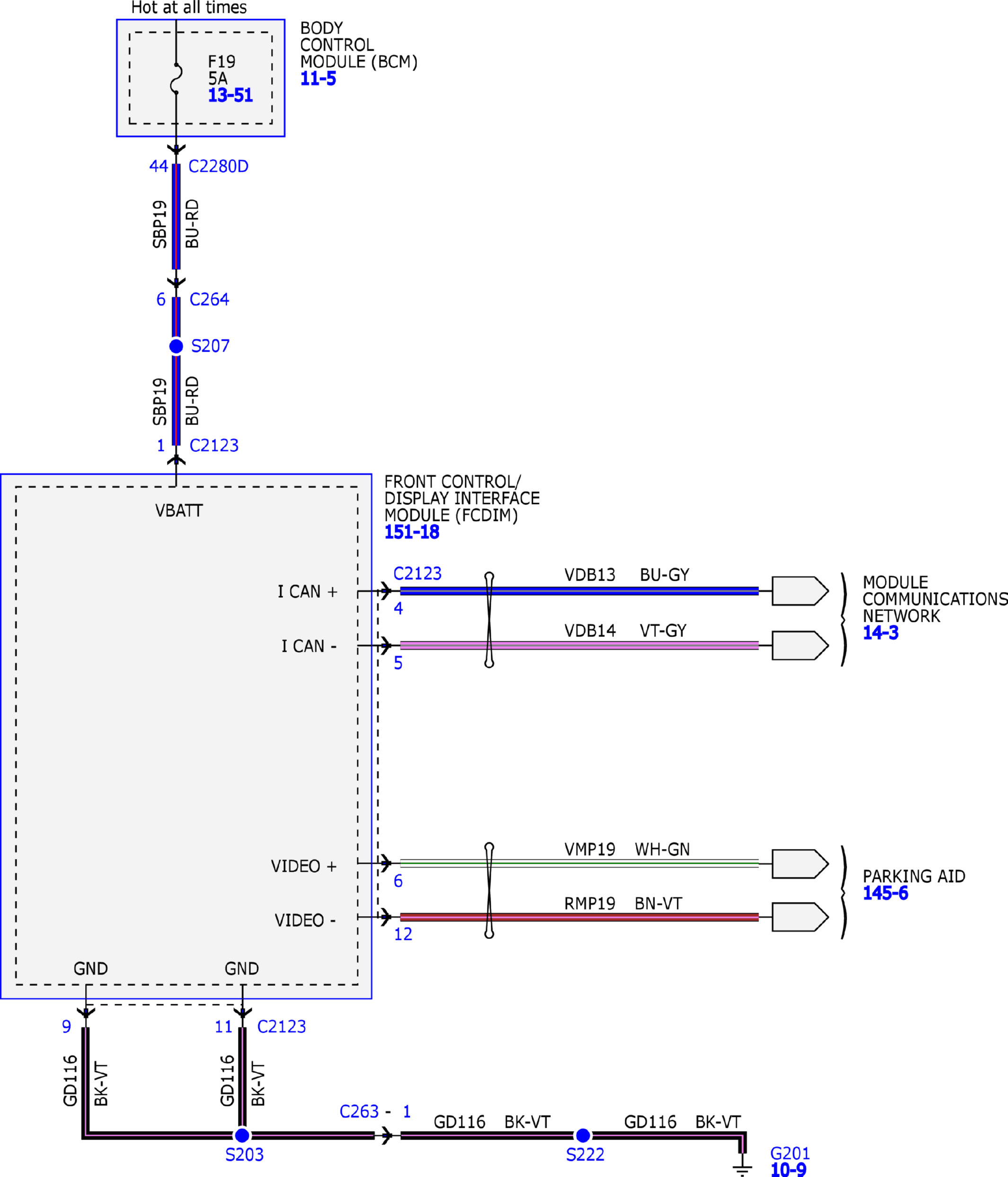

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (2 of 11)
GFDW28935Courtesy of FORD MOTOR COMPANY

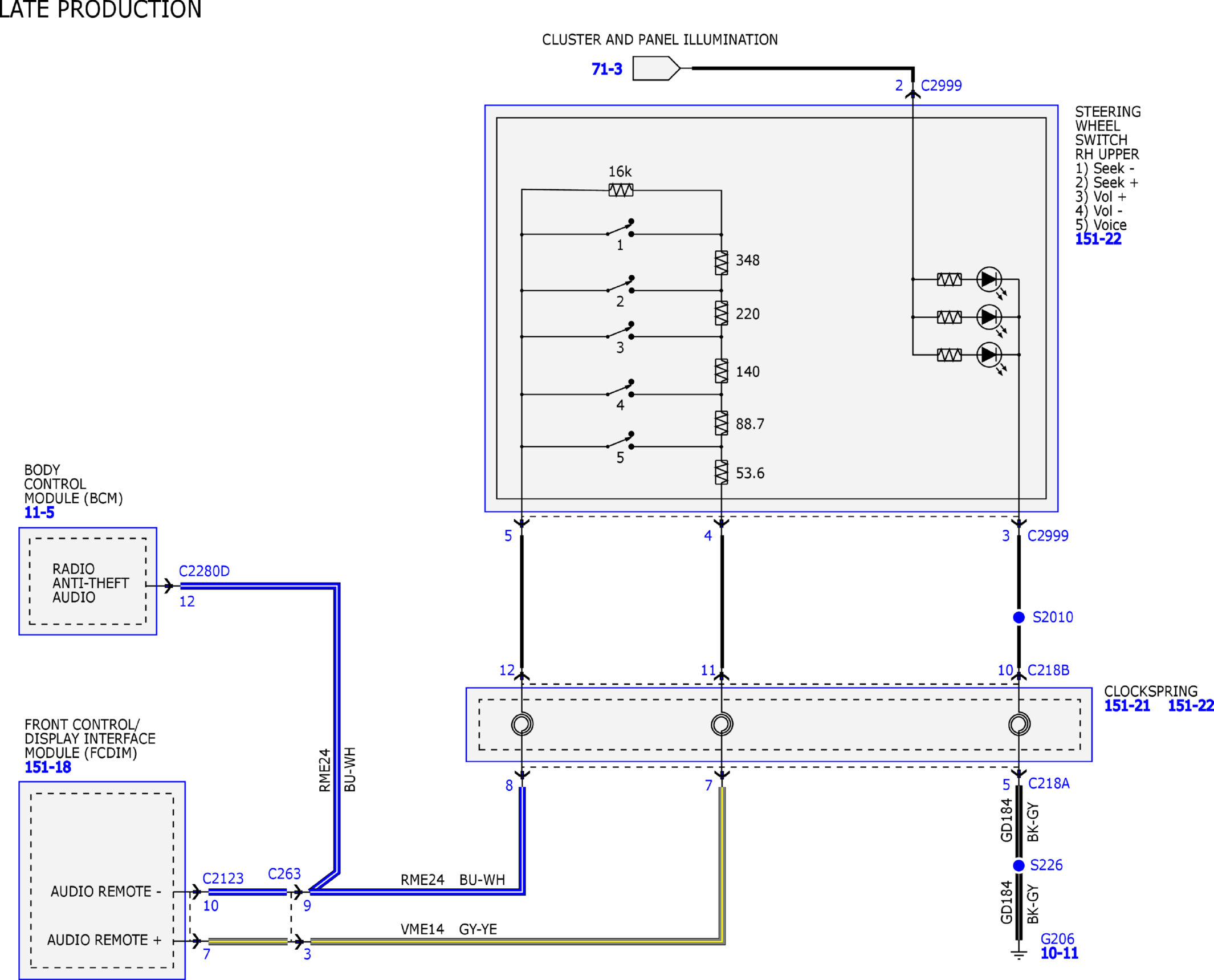

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (3 of 11)
GFDW28936Courtesy of FORD MOTOR COMPANY

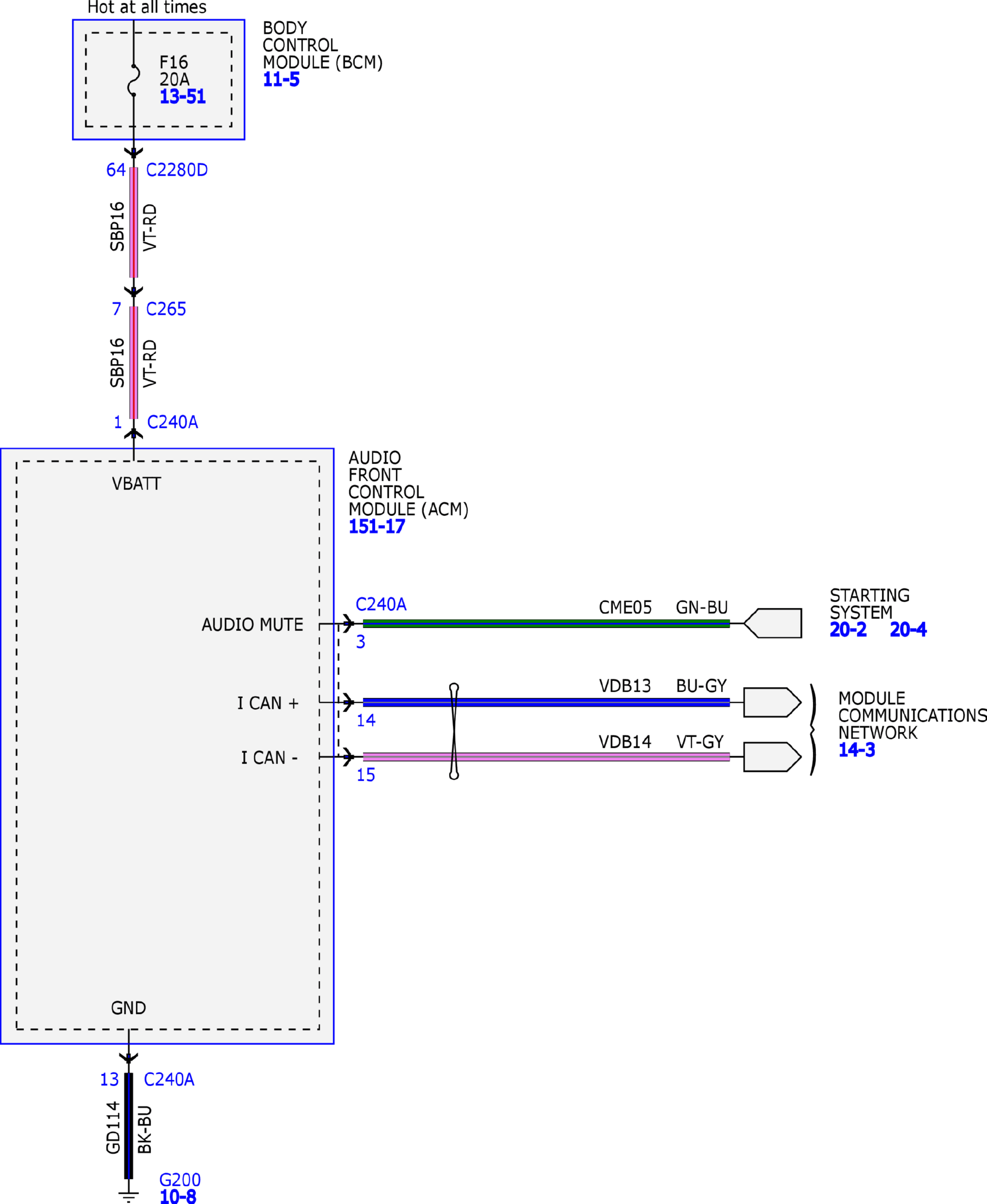

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (4 of 11)
GFDW28937Courtesy of FORD MOTOR COMPANY

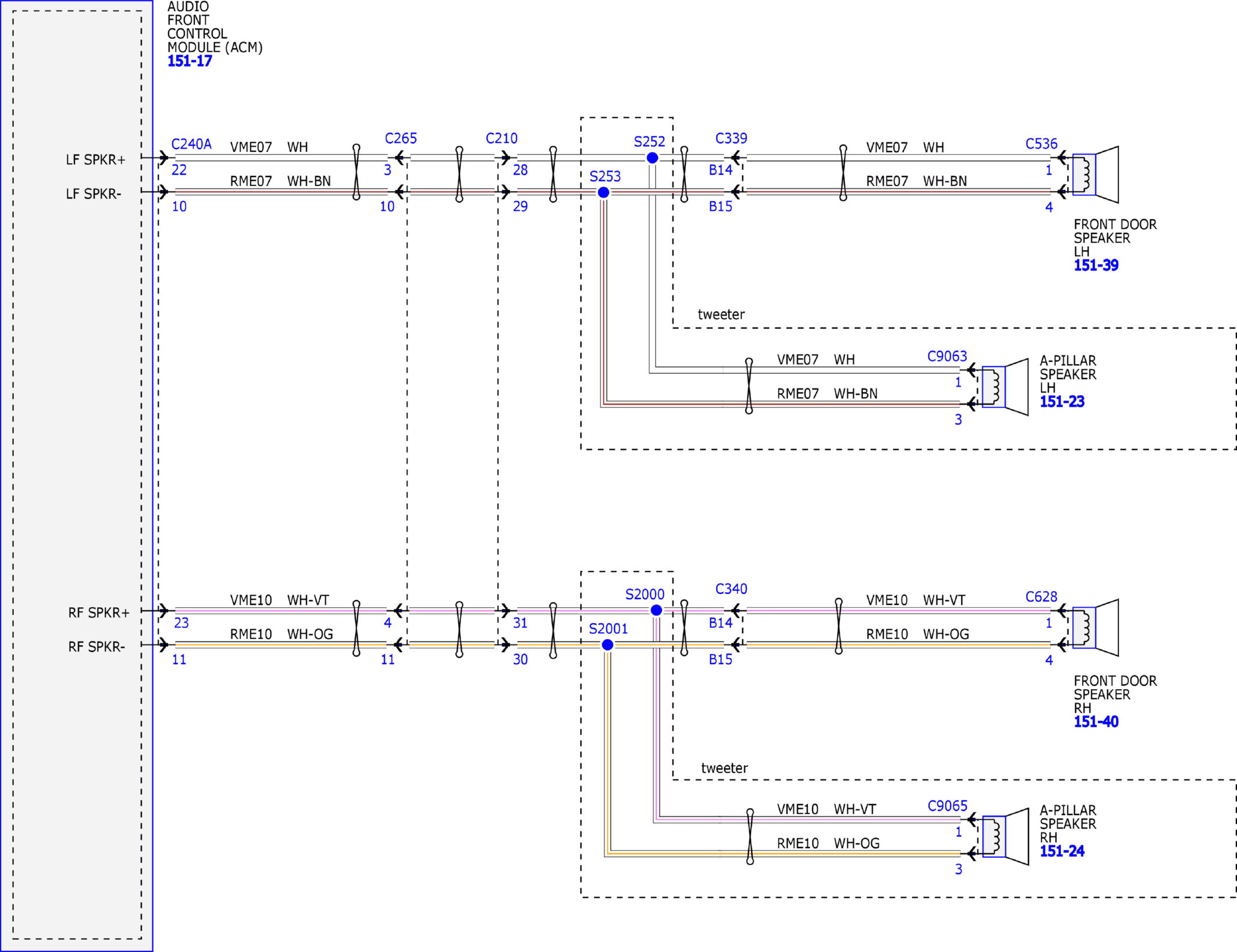

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (5 of 11)
GFDW28938Courtesy of FORD MOTOR COMPANY

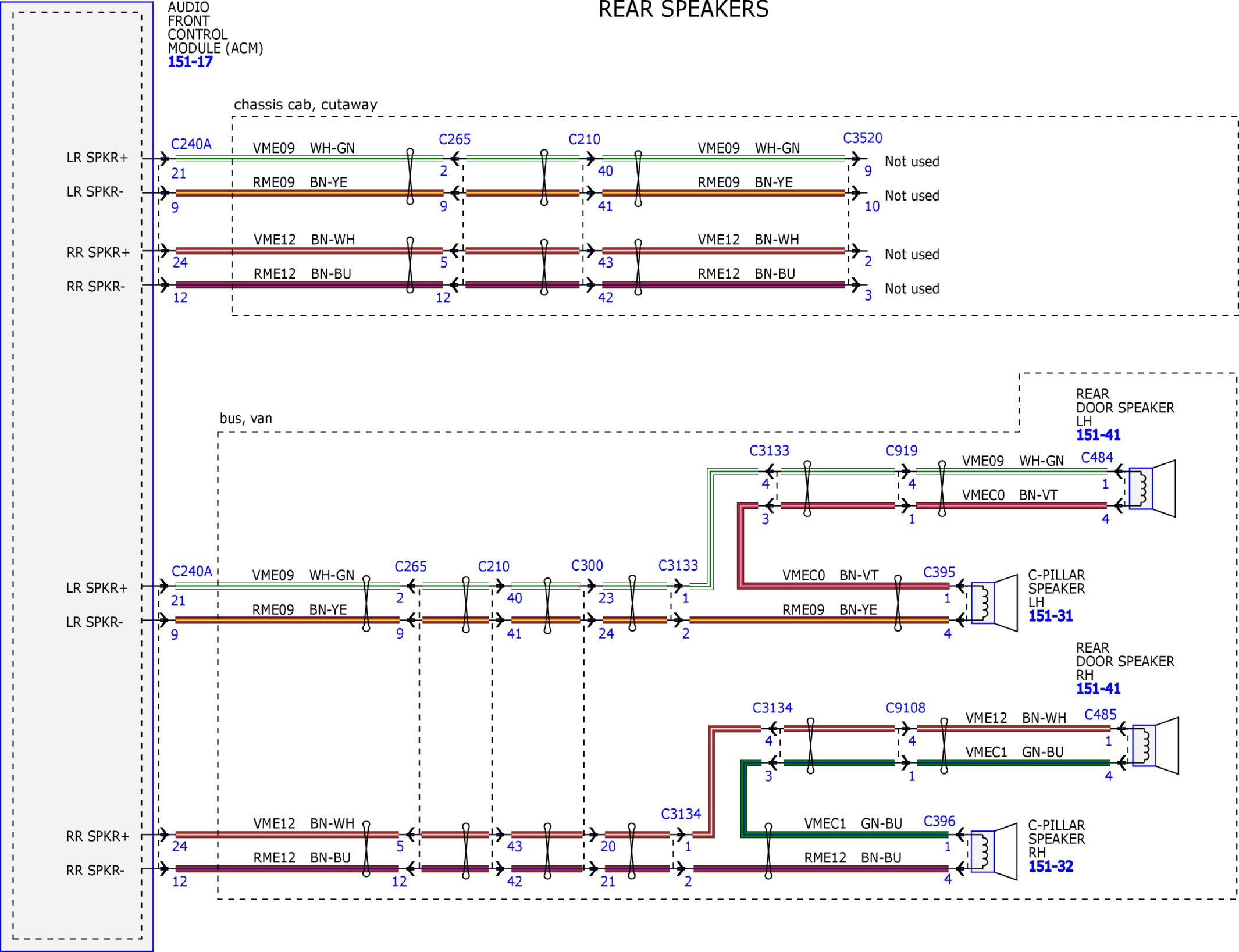

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (6 of 11)
GFDW28939Courtesy of FORD MOTOR COMPANY

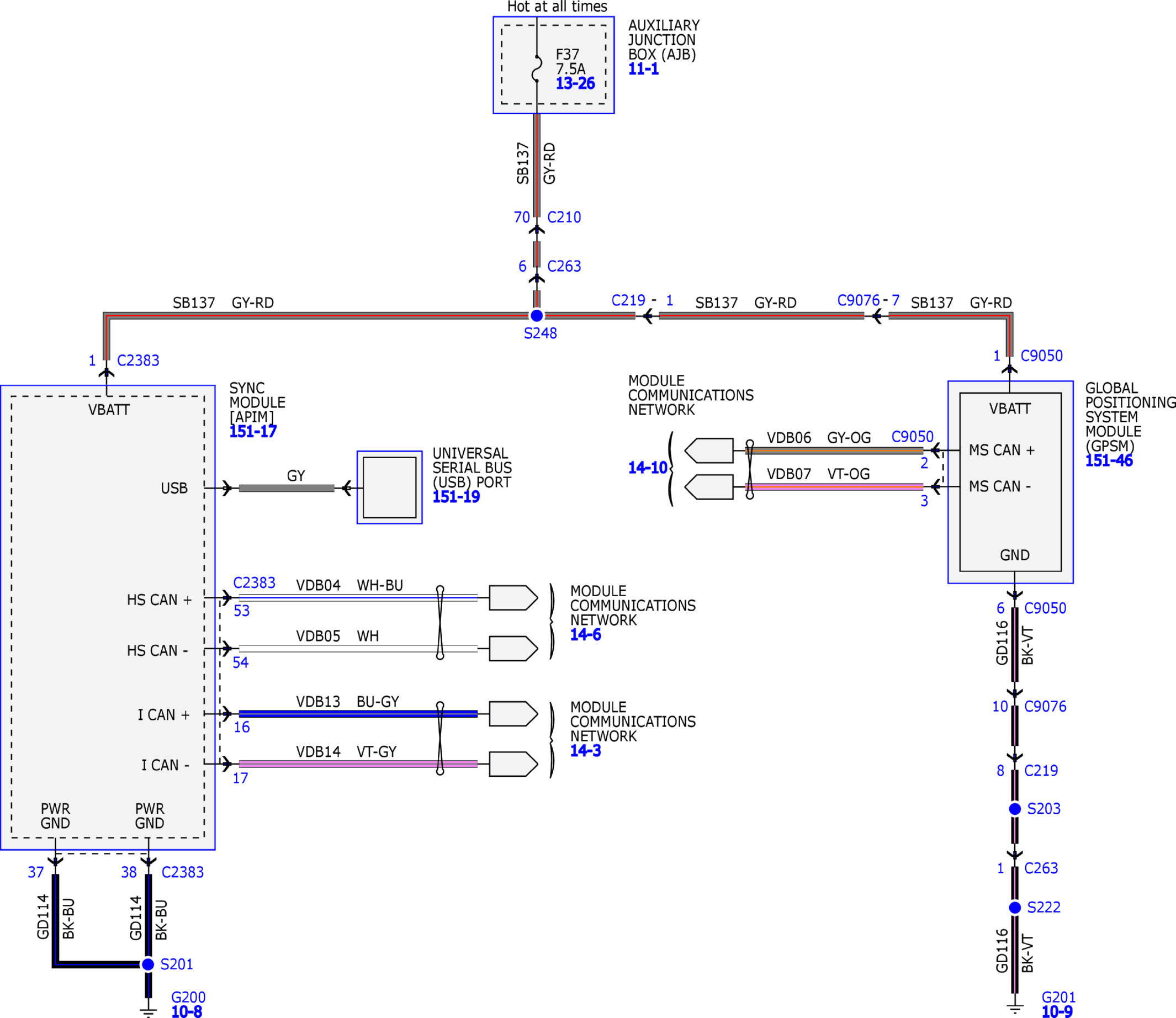

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (7 of 11)
GFDW28940Courtesy of FORD MOTOR COMPANY

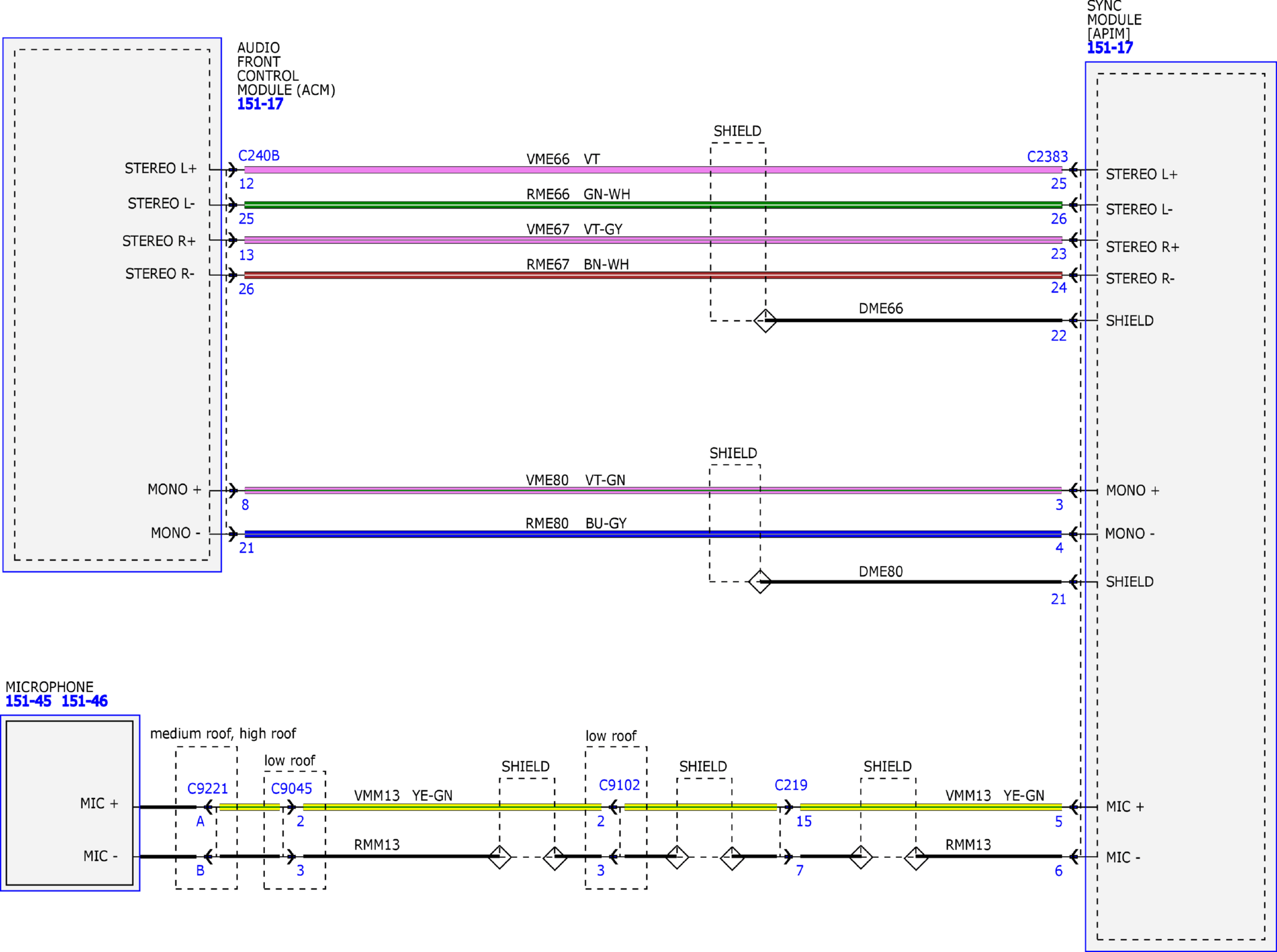

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (8 of 11)
GFDW28941Courtesy of FORD MOTOR COMPANY

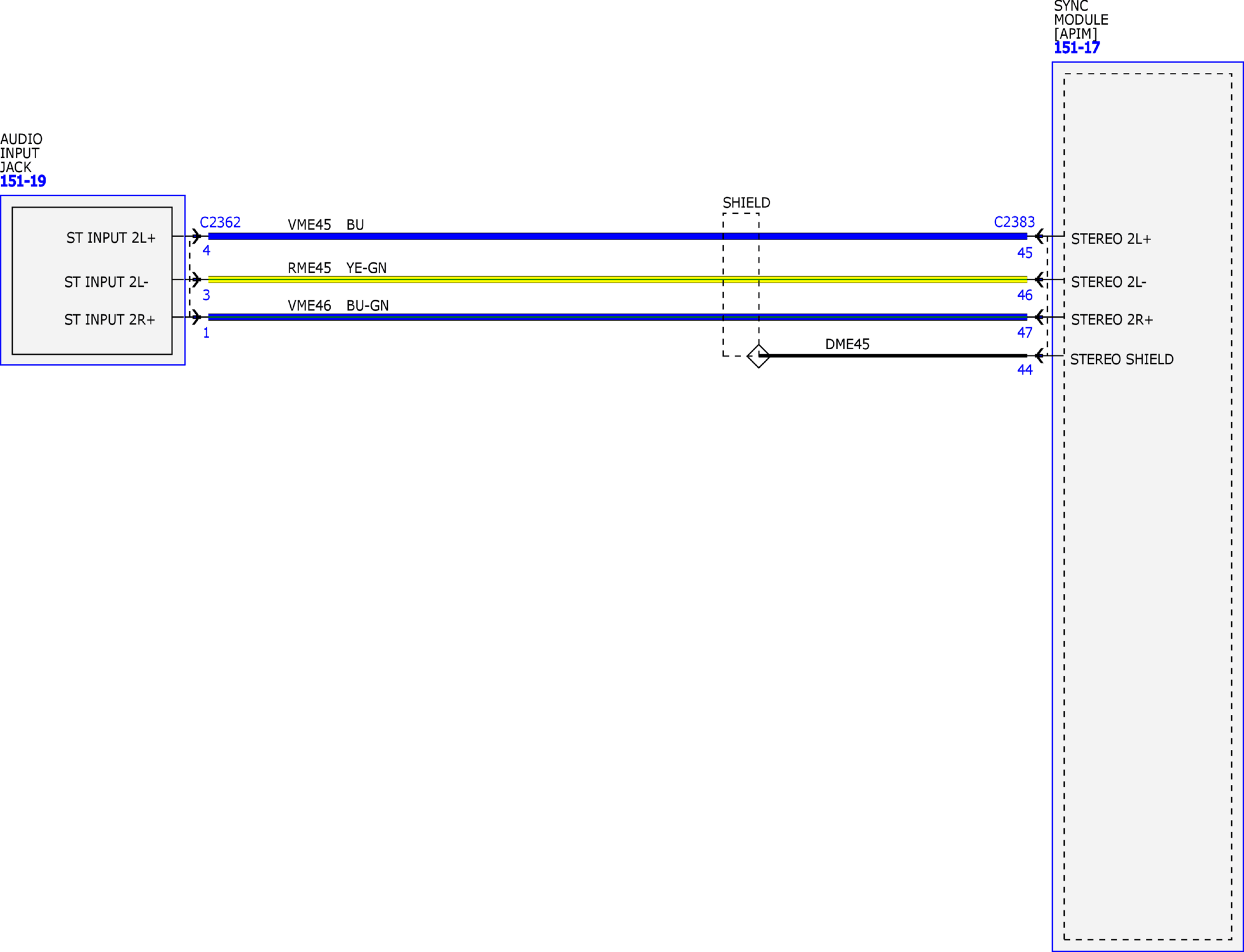

Fig 9: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (9 of 11)
GFDW28942Courtesy of FORD MOTOR COMPANY

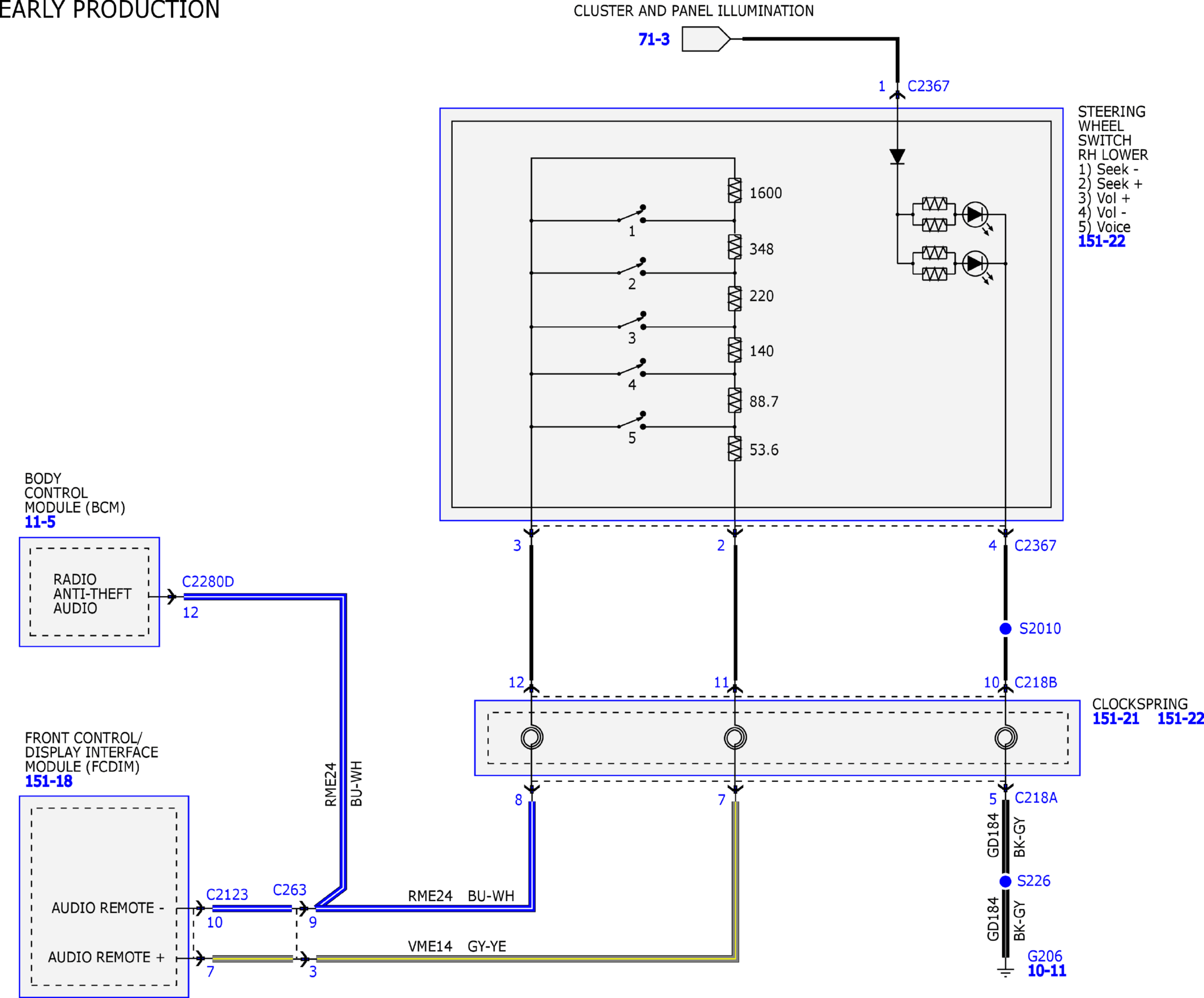

Fig 10: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (10 of 11)
GFDW28943Courtesy of FORD MOTOR COMPANY

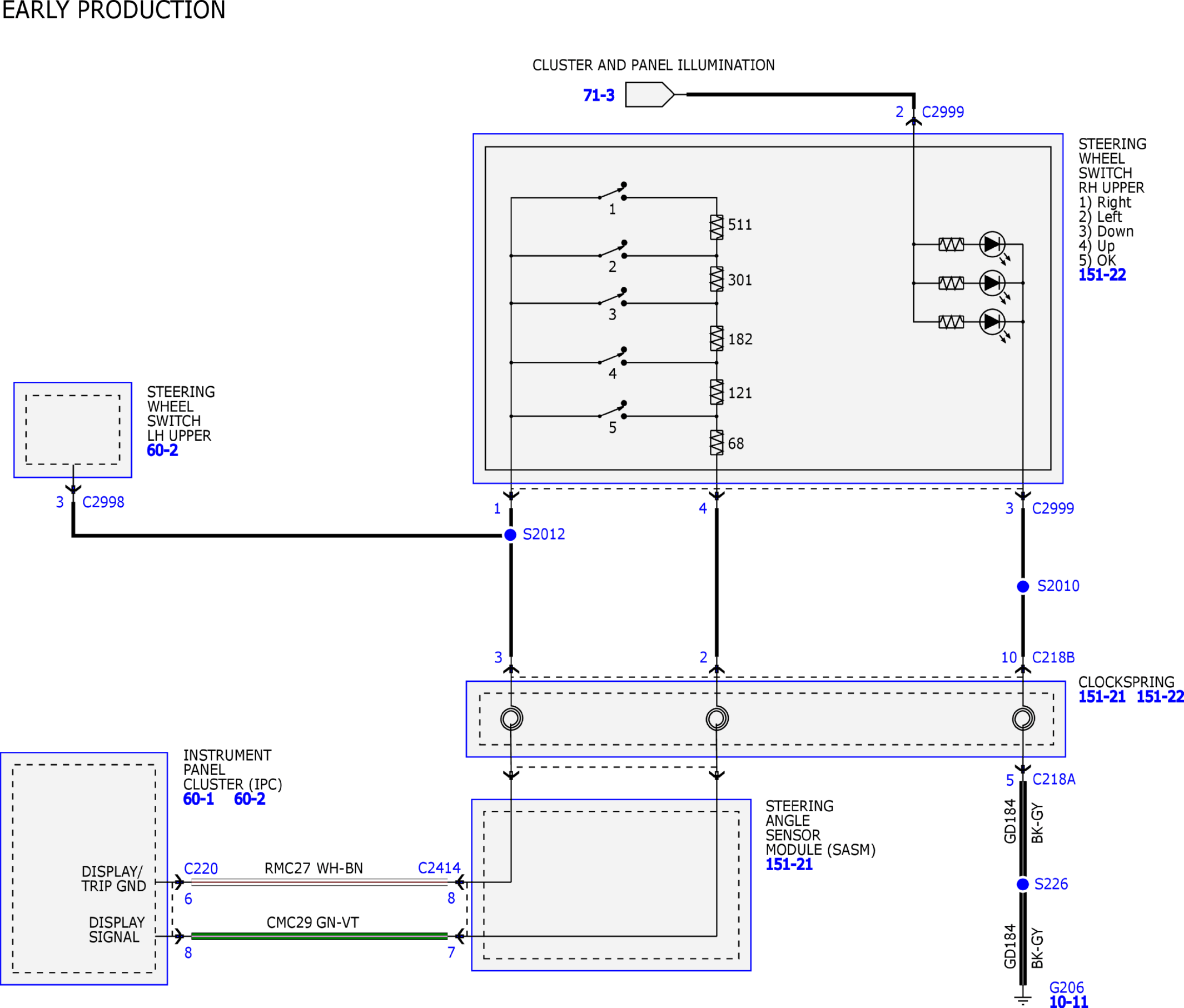

Fig 11: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (11 of 11)
GFDW28944Courtesy of FORD MOTOR COMPANY
