Possible Causes

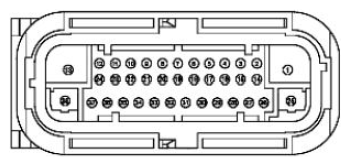

Fig 1: Antilock Braking System (ABS) Module Connector - C135
G11680243Courtesy of FORD MOTOR CO.

Harness Side

Fig 2: Restraint Control Module-A (RCM-A) Connector - C310A
G11680244Courtesy of FORD MOTOR CO.

Harness Side

Fig 3: Restraint Control Module-B (RCM-B) Connector - C310B
G11680245Courtesy of FORD MOTOR CO.

Harness Side

  1. BH1: CHECK THE COMMUNICATION NETWORK
    • Ignition ON, engine OFF.
    • Press the Read Vehicle Information button to view the results of the modules communicating on the network.
    • Retrieve the continuous memory DTCs.
    • Does the RCM pass the network test?
      Yes No
      Go to  BH2. DIAGNOSE the no communication with the RCM.
      REFER to MODULE COMMUNICATIONS NETWORK .
  2. BH2: RECHECK FOR THE ABS MODULE DTCS
    • Clear the ABS DTCs.
    • Ignition OFF.
    • Ignition ON, engine OFF.
    • Carry out the ABS self-test.
    • Record all ABS module DTCs.
    • Is DTC U0151:xx or U0452:xx retrieved again?
      Yes No
      Go to  BH3. The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.
  3. BH3: CHECK FOR VOLTAGE DTCS IN THE ABS MODULE
    • Review the recorded DTCs from the ABS module self-test.
    • Is DTC U3003:16 or U3003:17 present?
      Yes No
      For DTC U3003:17, Go to PINPOINT TEST F .
      For DTC U3003:16, Go to PINPOINT TEST A .      		 Go to  BH4.
  4. BH4: CHECK FOR DTCS IN THE RCM
    • Carry out the RCM self-test.
    • Record all DTCs from the RCM self-test.
    • Are any DTCs present?
      Yes No
      DIAGNOSE the RCM DTCs. REFER to the Diagnosis and Testing in SUPPLEMENTAL RESTRAINT SYSTEM . Go to  BH5.
  5. BH5: CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN
    NOTE: If new modules were installed prior to the DTC being set, the module configuration can be incorrectly set during the PMI or the PMI may not have been carried out.
    • Check the vehicle service history for recent service actions related to the RCM or the ABS module. If recent service history is found:
      • Verify the correct replacement module was installed. HVBOM may be used to verify correct part fitment.
      • Verify the configuration of replacement module was correct. Re-configure the module using as-built data if prior configuration is suspect.
      • Verify the module was not obtained from a like vehicle and installed into customer vehicle. Return the swapped module to source vehicle and obtain new replacement module.
    • Operate the system and determine if the observable symptom is still present.
    • Is the observable symptom still present?
      Yes No
      Go to  BH6. The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.
  6. BH6: VERIFY ALL WIRING CONNECTIONS
    WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Ignition OFF.
    • Wait one minute.
    • RCM_A connector disconnected. (C310A)
    • RCM_B connector disconnected. (C310B)
    • ABS Module connector disconnected. (C135)
    • Disconnect all in-line electrical connectors between the ABS module and the RCM.
    • Using a good light source, inspect all disconnected electrical connectors for the following:
      • corrosion - install new connector or terminal and clean the module pins
      • damaged or bent pins - install new terminals or pins
      • pushed-out pins - install new pins as necessary
      • spread terminals - install new terminals as necessary
    • Are the connectors free of corrosion, damaged pins, bent pins, pushed-out pins and spread terminals?
      Yes No
      Go to  BH7. REPAIR the connector or terminals. Refer to OEM CONNECTOR REPAIR PROCEDURES , for schematic and connector information.
  7. BH7: CHECK FOR DTC U0151:XX OR U0452:XX SET IN OTHER MODULES
    • ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
    • RCM_B connector connected. (C310B) Make sure the connector seats and latches correctly.
    • RCM_A connector connected. (C310A) Make sure the connector seats and latches correctly.
    • Connect all in-line electrical connectors between the ABS module and the RCM. Make sure they seat and latch correctly.
    • Ignition ON, engine OFF.
    • Press the Read Vehicle Information button to view the results of the continuous DTCs set in other modules.
    • Retrieve the continuous memory DTCs.
    • Review the CMDTCs from all modules.
    • Is DTC U0151:xx or U0452:xx set in 1 or more modules in addition to the ABS module?
      Yes No
      INSTALL a new RCM.
      CHECK OASIS for any applicable TSBs. If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSBs address this concern, INSTALL a new RCM. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .      		 INSTALL a new ABS module.
      CHECK OASIS for any applicable TSBs. If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSBs address this concern, INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) AND STABILITY CONTROL .
