External Controls - Component Location
External Controls - Component Location

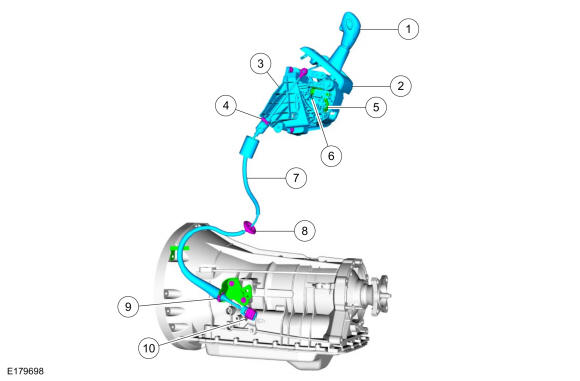

3.2L Duratorq TDCI
| Item | Description |
|---|---|
| 1 | Selector lever knob |
| 2 | Selector lever bezel |
| 3 | Selector lever assembly |
| 4 | Selector lever cable retaining clip |
| 5 | Brake shift interlock actuator lever |
| 6 | Brake shift interlock actuator |
| 7 | Selector lever cable |
| 8 | Selector lever cable grommet |
| 9 | Selector lever cable retaining clip |
| 10 | Selector lever cable adjuster locking tab |

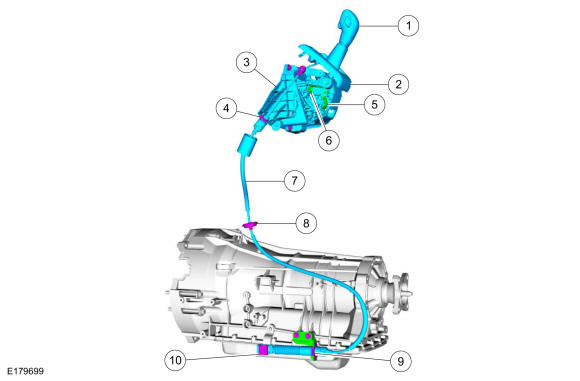

3.5L EcoBoost, 3.7L Duratec
| Item | Description |
|---|---|
| 1 | Selector lever knob |
| 2 | Selector lever bezel |
| 3 | Selector lever assembly |
| 4 | Selector lever cable retaining clip |
| 5 | Brake shift interlock actuator lever |
| 6 | Brake shift interlock actuator |
| 7 | Selector lever cable |
| 8 | Selector lever cable grommet |
| 9 | Selector lever cable retaining clip |
| 10 | Selector lever cable adjuster locking tab |
