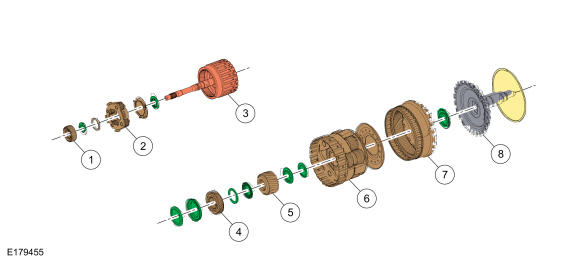

Planetary Gearset Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Front planetary No. 1 sun gear
2	Front planetary carrier
3	Front planetary ring gear (part of input shaft assembly)
4	Rear planetary No. 2 sun gear
5	Rear planetary No. 3 sun gear
6	Rear planetary carrier
7	Rear planetary ring gear
8	Output shaft
