Side Obstacle Detection Control Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: SODL shown, SODR similar.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

2.

Remove the rear lamp assembly. REFER to: Rear Lamp Assembly

3.

Remove the rear quarter panel moulding. REFER to: Rear Quarter Panel Moulding

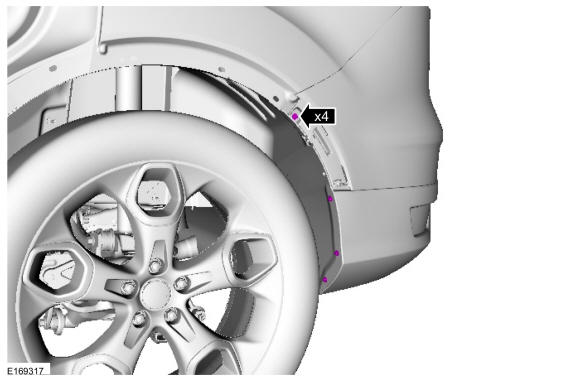

4.

Remove the screws.
Torque:

13 lb.in (1.5 Nm)

GFD50989

Courtesy of FORD MOTOR COMPANY

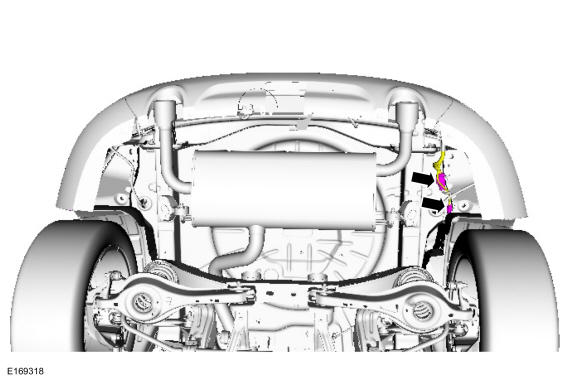

5.

Disconnect the electrical connectors and position aside wiring harness.

GFD50990

Courtesy of FORD MOTOR COMPANY

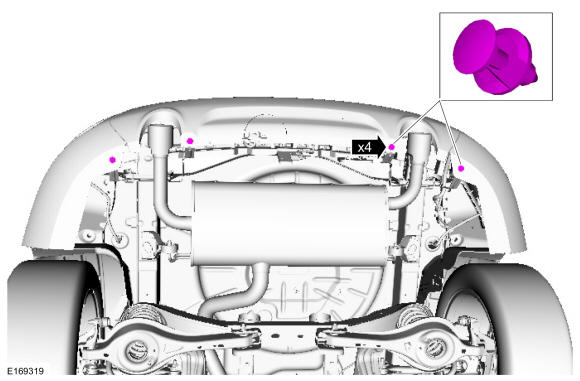

6.

Remove the push pins.

GFD50991

Courtesy of FORD MOTOR COMPANY

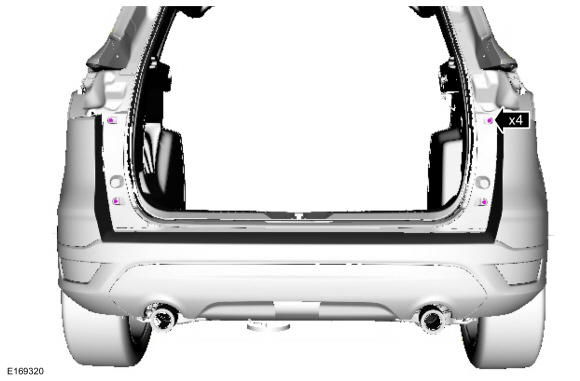

7.

Remove the bolts.
Torque:

28 lb.in (3.2 Nm)

GFD50992

Courtesy of FORD MOTOR COMPANY

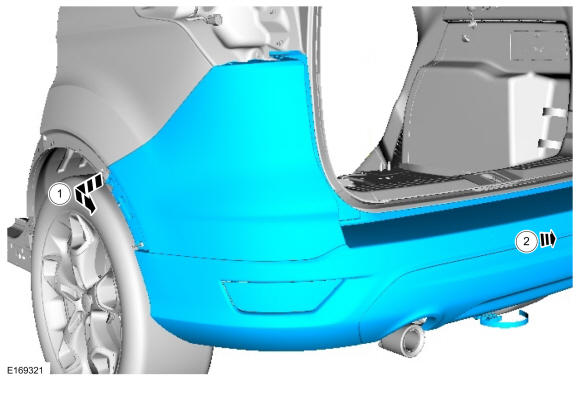

8.

Gently flex the rear bumper cover to access the SODL or the SODR.

GFD50993

Courtesy of FORD MOTOR COMPANY

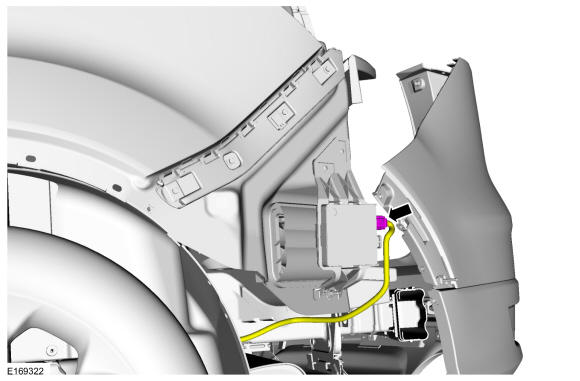

9.

Disconnect the electrical connector.

GFD50994

Courtesy of FORD MOTOR COMPANY

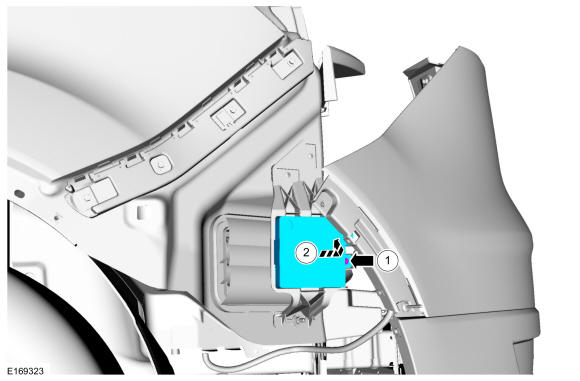

10.

Remove the SODL.
- 1.

  Remove the retainer.
- 2.

  Remove the SODL.

GFD50995

Courtesy of FORD MOTOR COMPANY

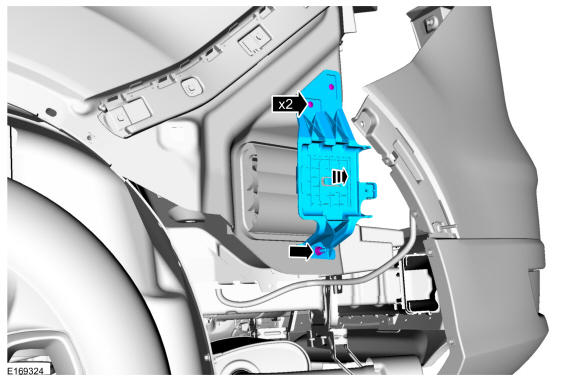

11.

If required.Remove the retainer and the SODL bracket.
Torque:

93 lb.in (10.5 Nm)

GFD50996

Courtesy of FORD MOTOR COMPANY
