Transfer Case

Base Part Number: 7251

All vehicles

• 1.

  Remove the rear driveshaft. REFER to: Rear Driveshaft

1.6L

• 2.

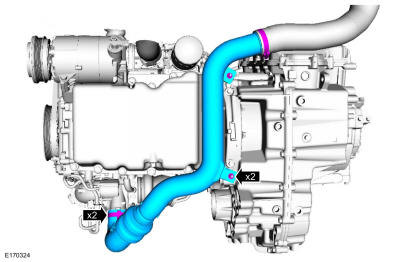

  Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY

2.0L

• 3.

  Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the catalytic converter. REFER to: Catalytic Converter

All vehicles

• 5.

  Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY

• 6.

  Remove the RH front halfshaft. REFER to: Front Halfshaft RH

• 7.

  Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

• 8.

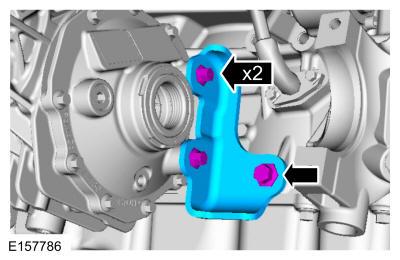

  Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

• 9.

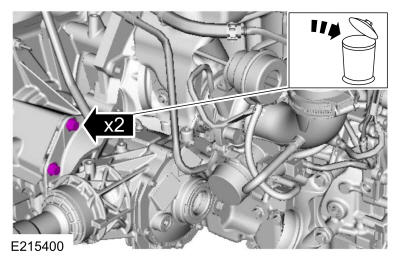

  Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY

• 10.

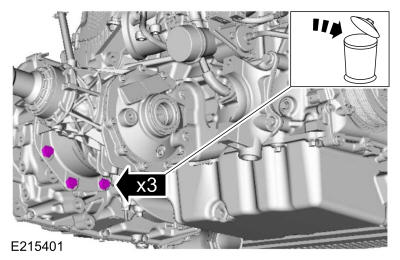

  Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY

• 11.

  Remove the PTU.

Courtesy of FORD MOTOR COMPANY

• 12.

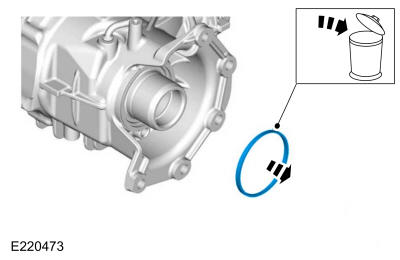

  Remove and discard the PTU compression seal.

Courtesy of FORD MOTOR COMPANY
