Connector Repair Procedures

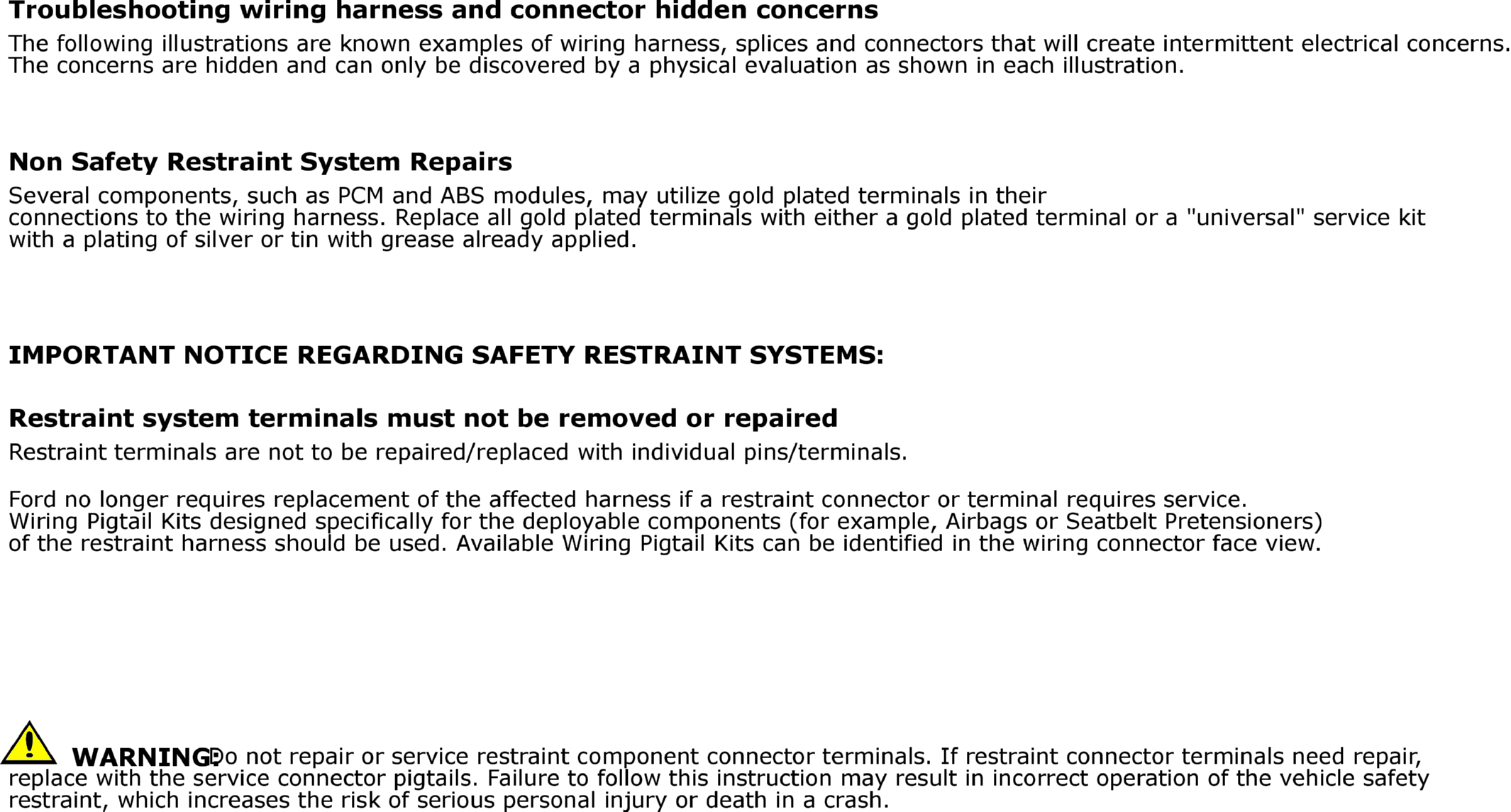

GFDW47935Courtesy of FORD MOTOR COMPANY

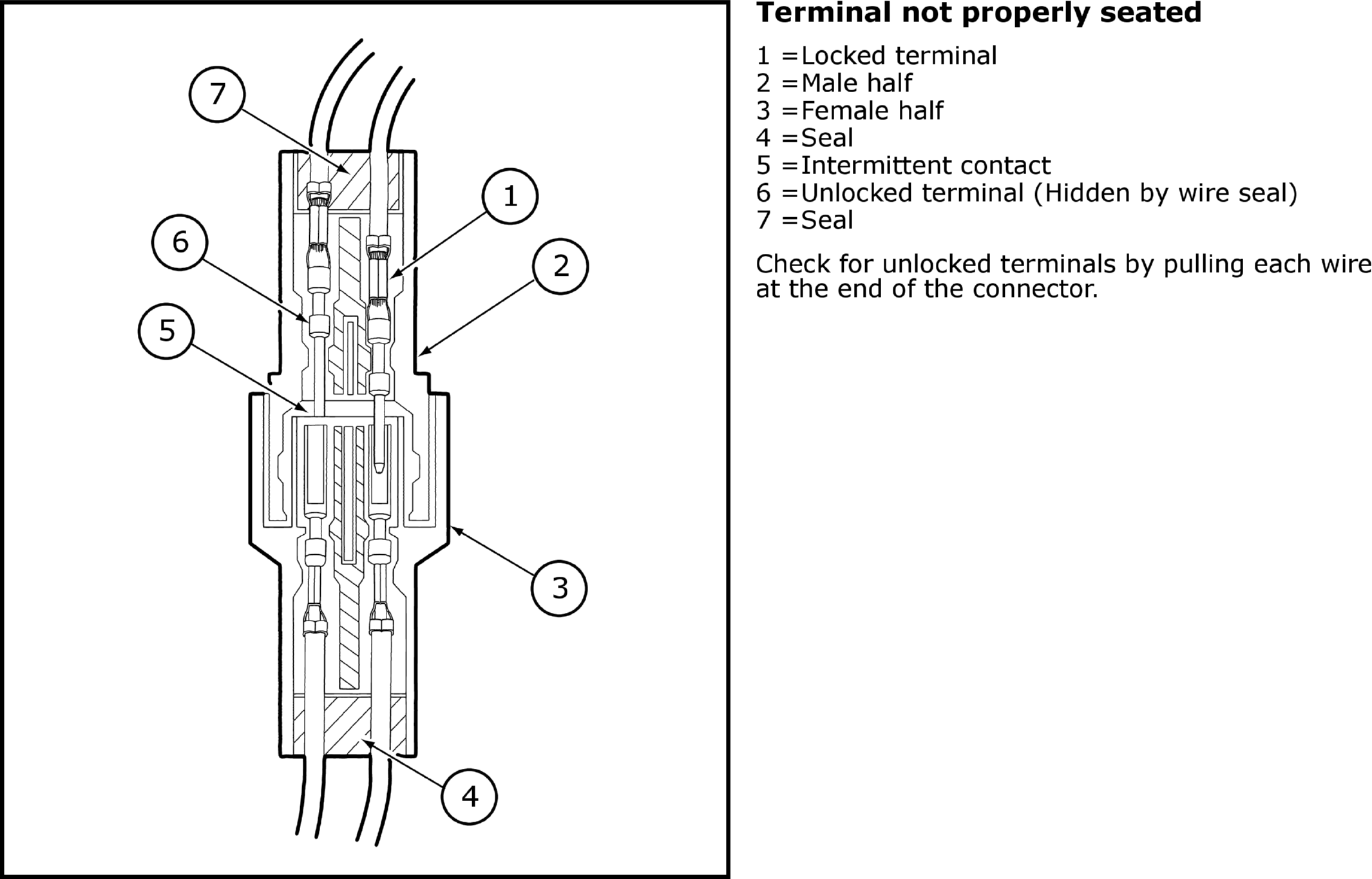

GFDW47936Courtesy of FORD MOTOR COMPANY

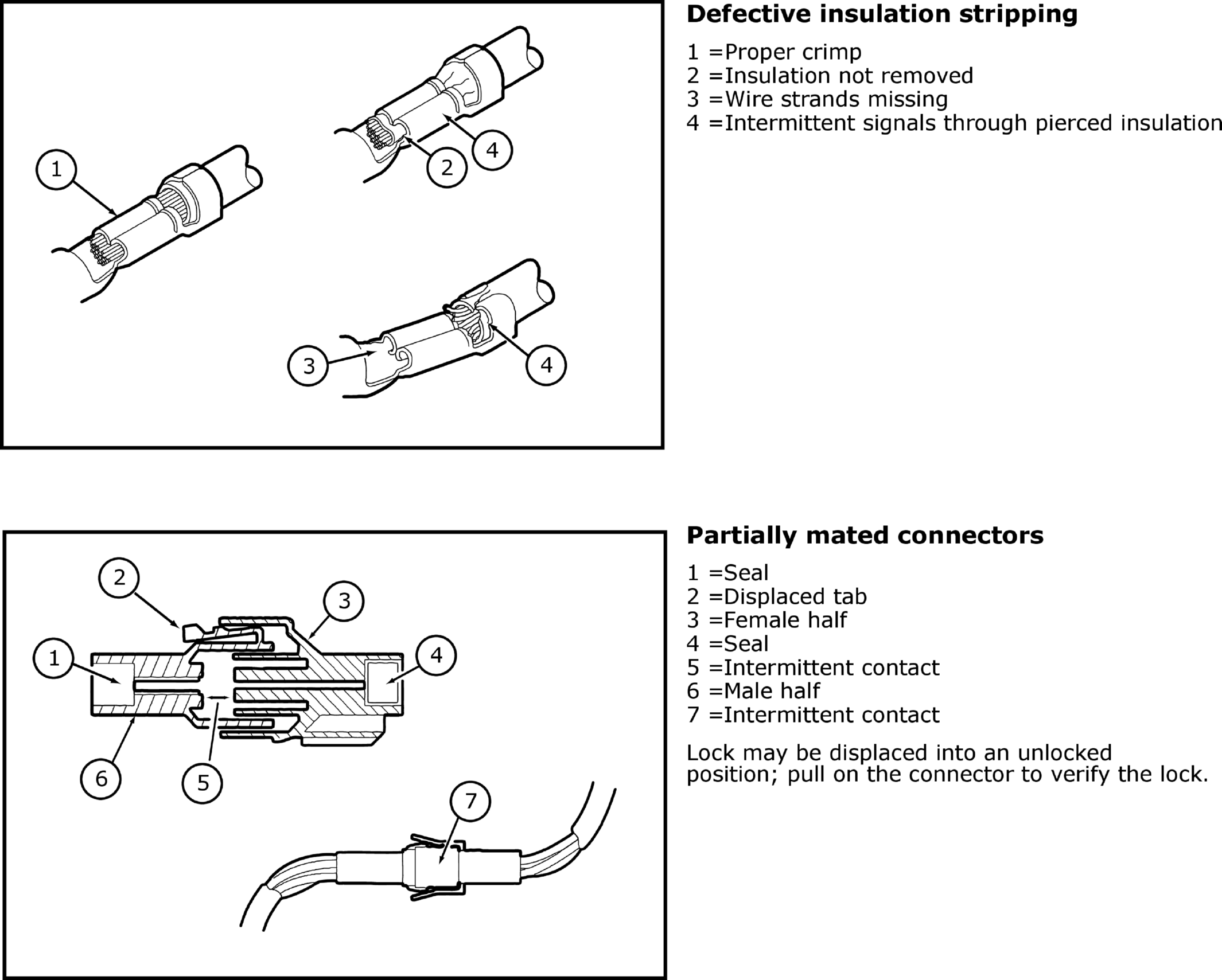

GFDW47937Courtesy of FORD MOTOR COMPANY

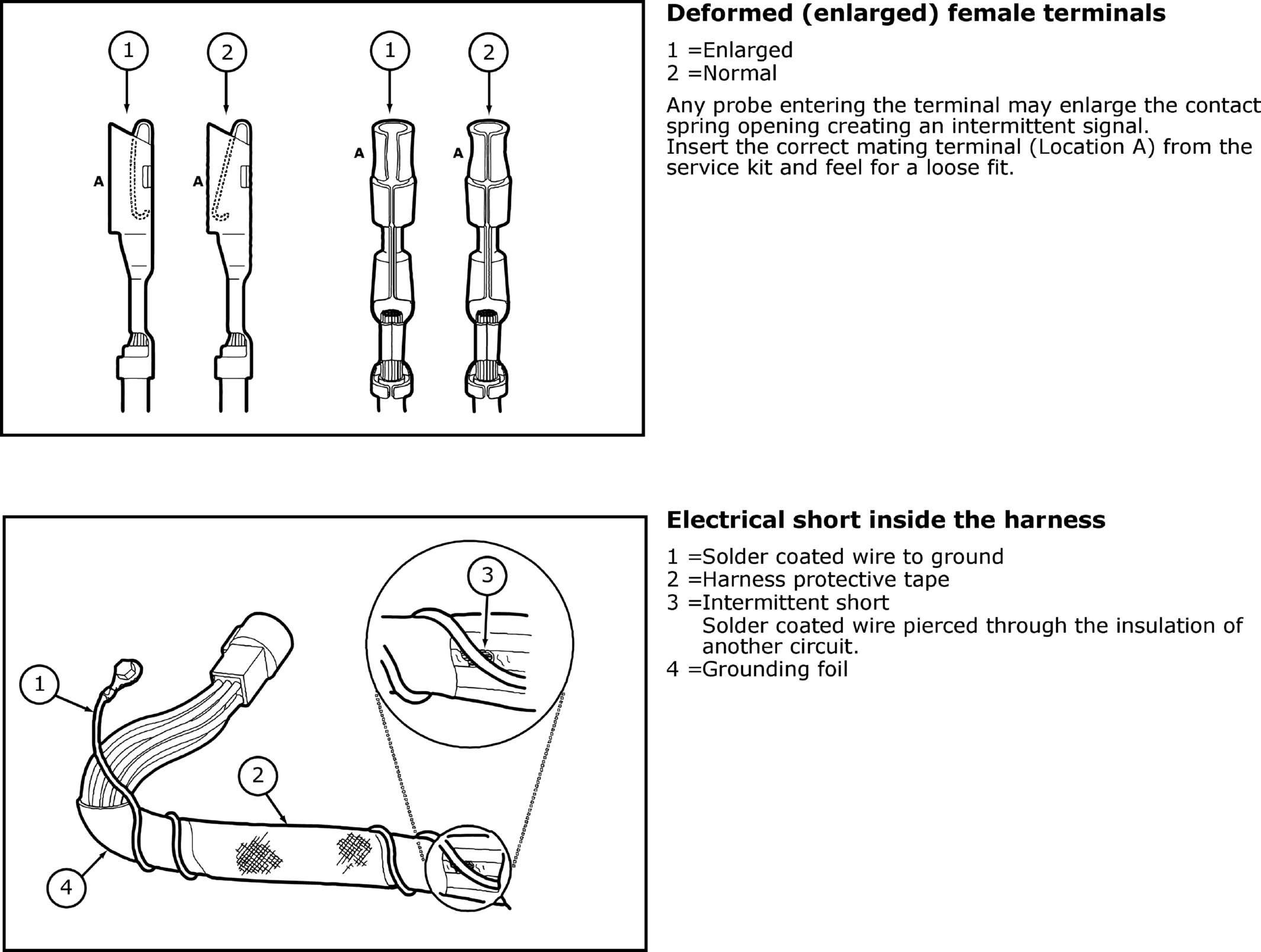

GFDW47938Courtesy of FORD MOTOR COMPANY

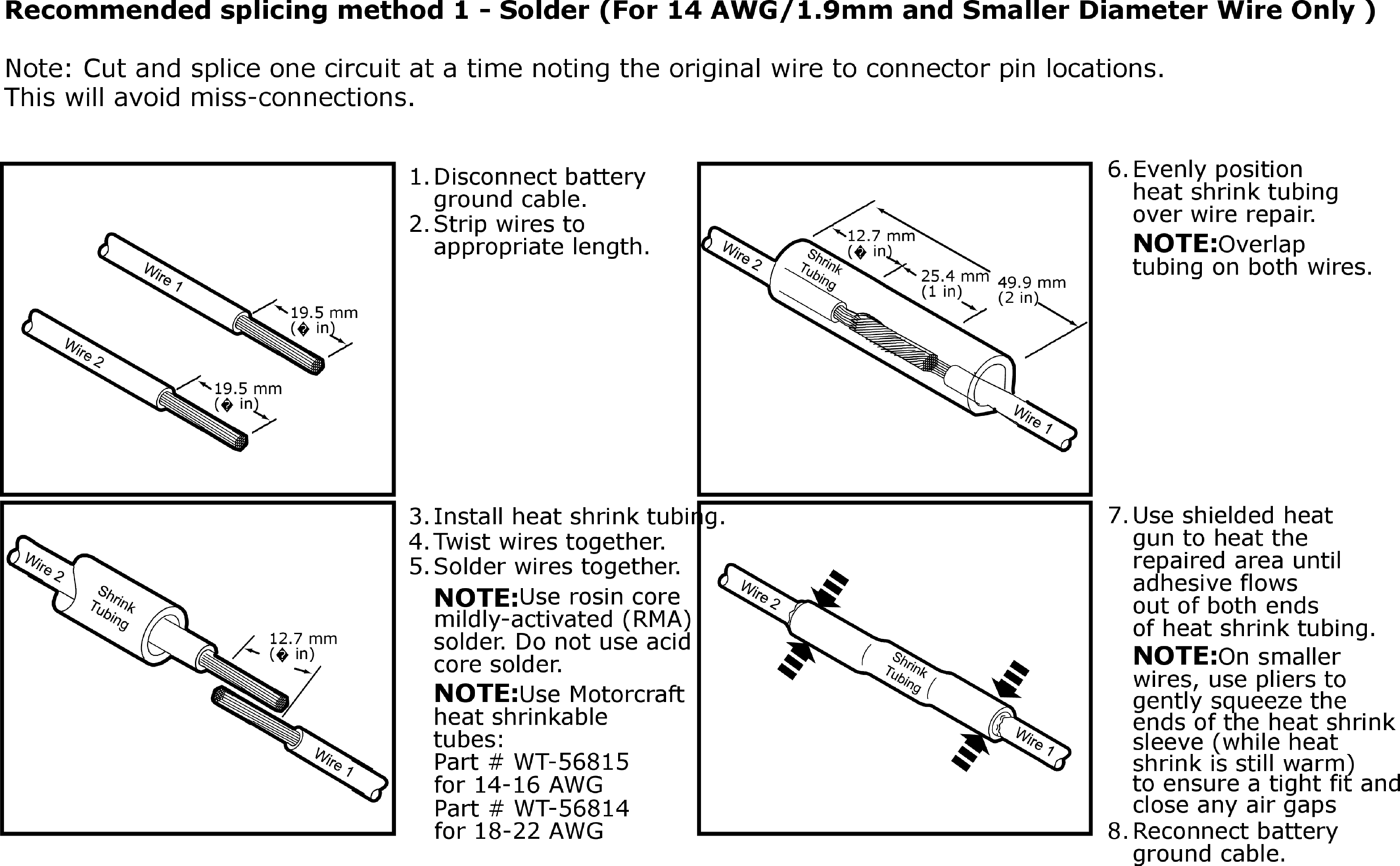

GFDW47939Courtesy of FORD MOTOR COMPANY

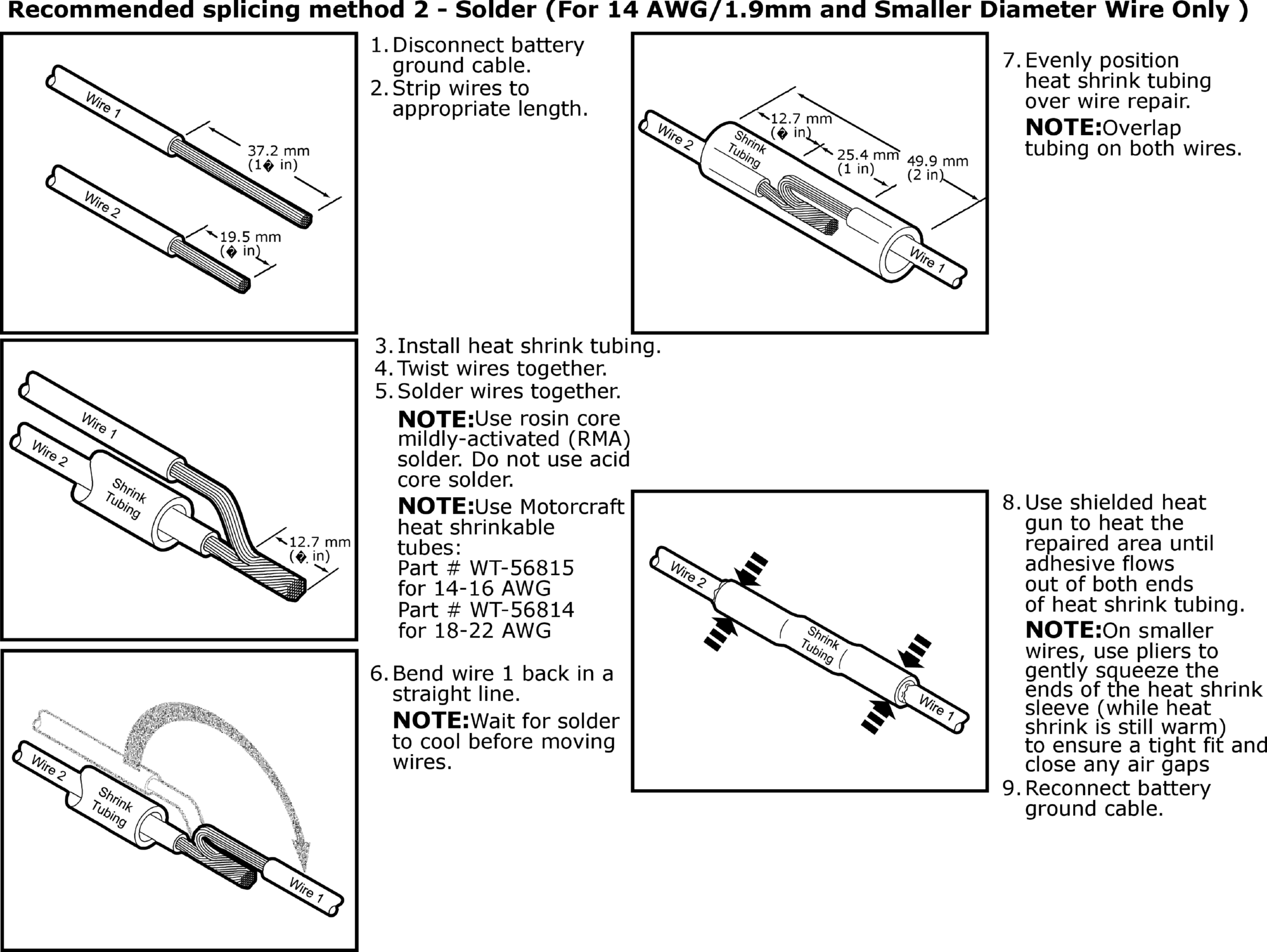

GFDW47940Courtesy of FORD MOTOR COMPANY

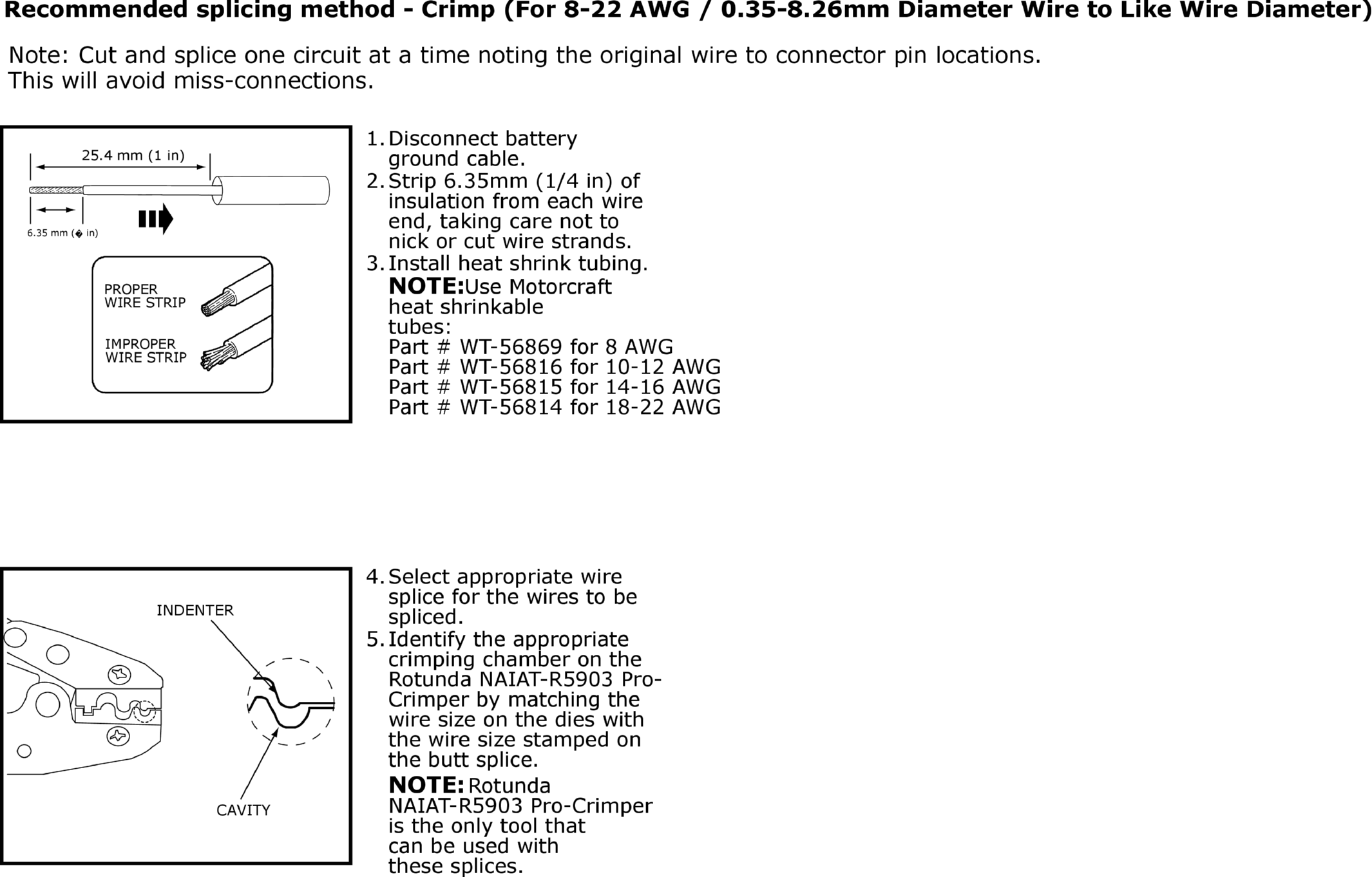

GFDW47941Courtesy of FORD MOTOR COMPANY

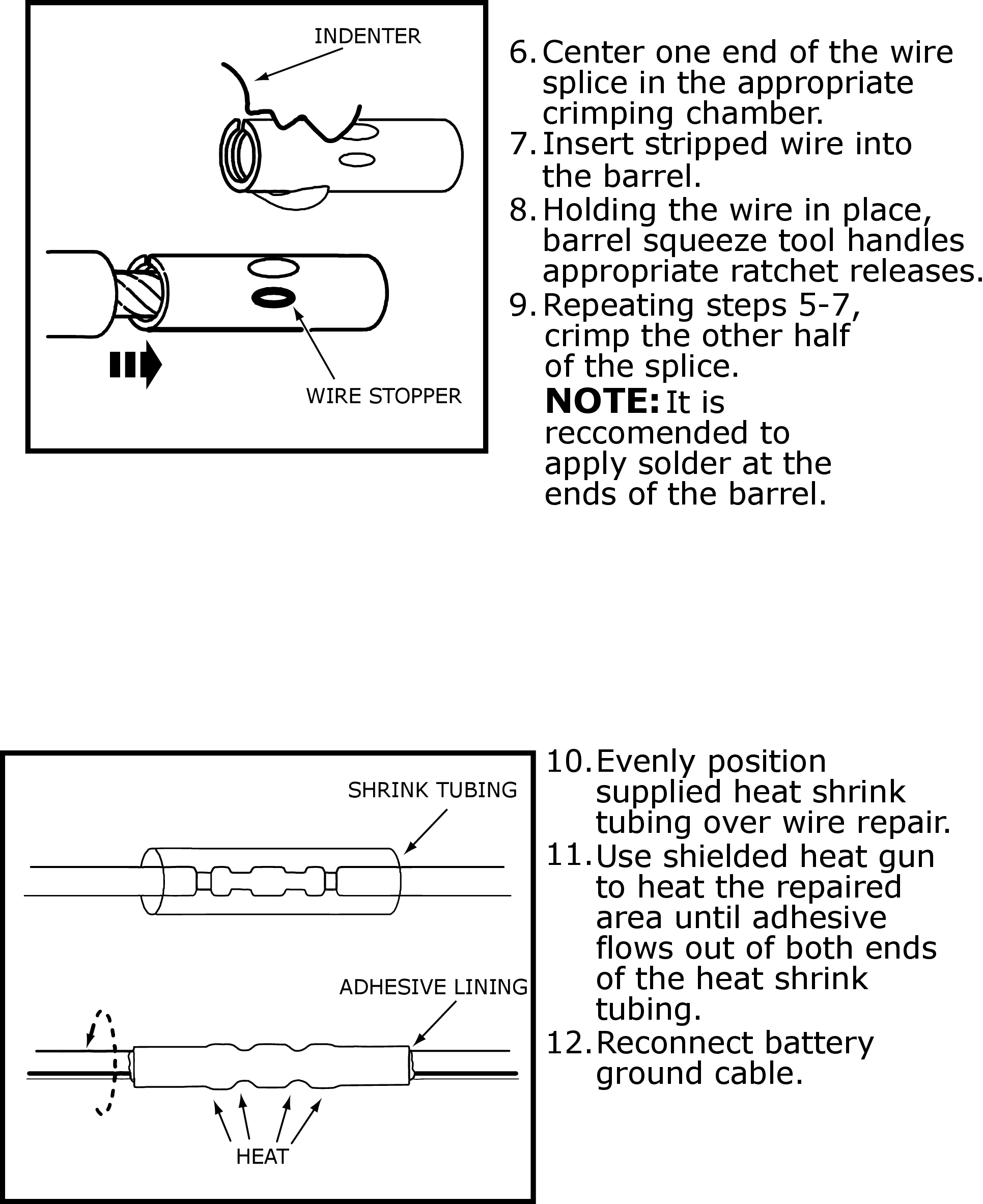

GFDW47942Courtesy of FORD MOTOR COMPANY

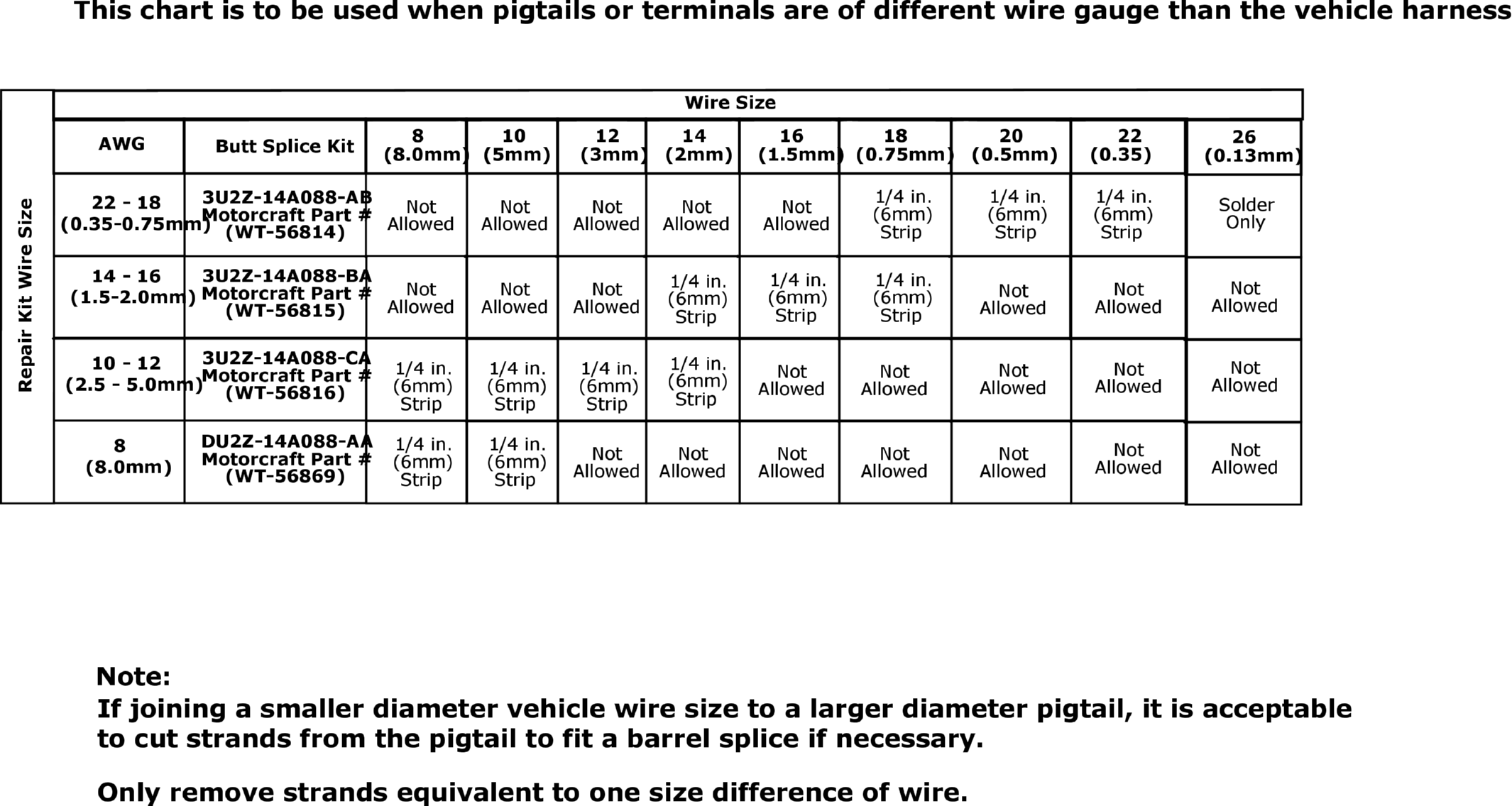

GFDW47943Courtesy of FORD MOTOR COMPANY
