Selector Lever Cable: Removal

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 2.

  Remove the floor console. REFER to: Floor Console

• 3.

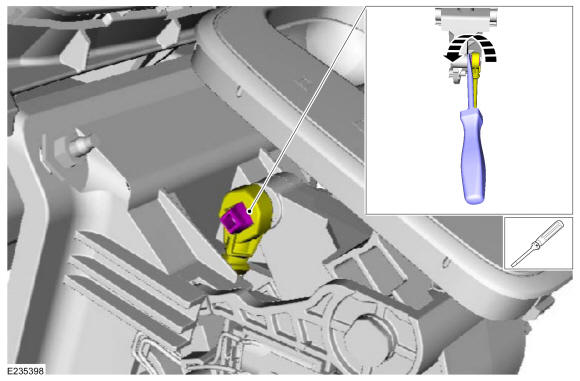

  NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

  Using a screwdriver, pry the selector lever cable end from the selector lever.

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY

• 5.

  Remove the bolts and the LH side console housing support bracket.

Courtesy of FORD MOTOR COMPANY

• 6.

  Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY

FWD vehicles

• 7.

  Remove the air cleaner. REFER to: Air Cleaner - 1.6L EcoBoost REFER to: Air Cleaner - 2.0L EcoBoost REFER to: Air Cleaner - 2.5L Duratec

• 8.

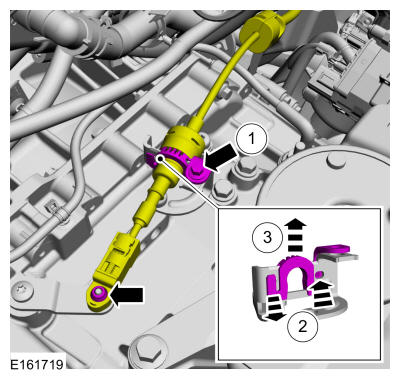

  Disconnect the selector lever cable from the transmission manual lever and the bracket.

  • 1.

    Remove the selector lever cable bracket bolt.

  • 2.

    Disengage the selector lever cable holding clip.

  • 3.

    Disconnect the selector lever cable.

Courtesy of FORD MOTOR COMPANY

• 9.

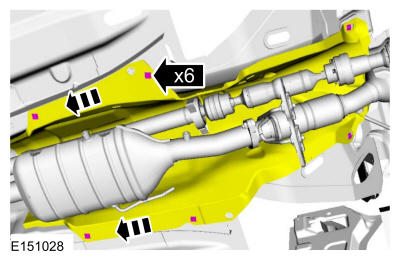

  Remove the nuts and position the front floor exhaust system heat shield aside.

Courtesy of FORD MOTOR COMPANY

AWD vehicles

• 10.

  Remove the battery tray. REFER to: Battery Tray

• 11.

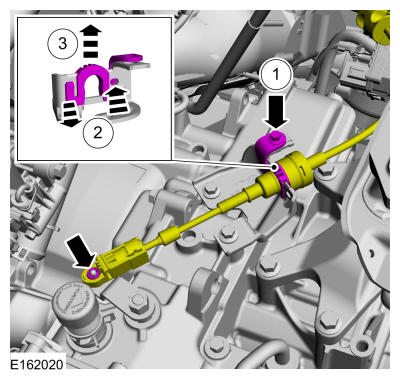

  Disconnect the selector lever cable from the transmission manual lever and the bracket.

  • 1.

    Remove the selector lever cable bracket bolt.

  • 2.

    Disengage the selector lever cable holding clip.

  • 3.

    Disconnect the selector lever cable.

Courtesy of FORD MOTOR COMPANY

• 12.

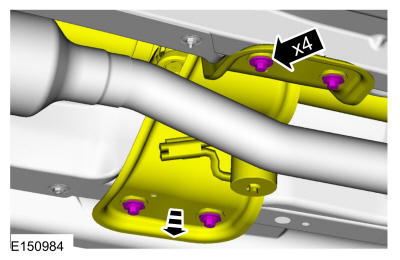

  Remove the bolts and position the exhaust pipe mounting bracket aside.

Courtesy of FORD MOTOR COMPANY

• 13.

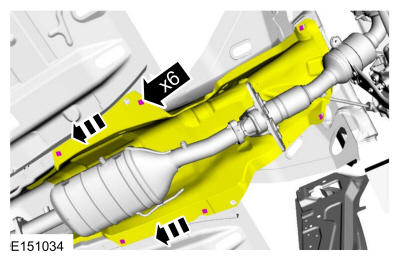

  Remove the nuts and position the front floor exhaust system heat shield aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 14.

  Disconnect the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY

• 15.

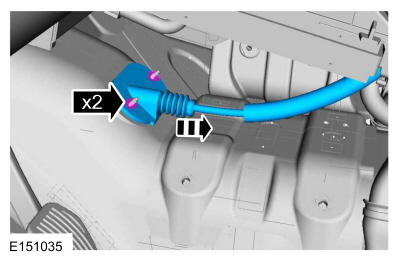

  Remove the nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.

Courtesy of FORD MOTOR COMPANY
