Transmission Case Reseal
Transmission Case Reseal
Special Tool(s) / General Equipment
| 100-001 (T50T-100-A) Slide Hammer | |
|---|---|
| 205-153 (T80T-4000-W) Handle | |
| 205-990 Installer, Axle Seal TKIT-2012A-FL TKIT-2012A-ROW | |
| 303-D011 (D80L-100-G) Actuator Pin (Dia 3/16) | |
| 303-D019 (D80L-100-Q) Collet, 3/4 to 7/8 | |
| 307-003 (T57L-500-B) Holding Fixture, Transmission | |
| 307-091 Handle, Torque Converter TKIT-2009TC-F | |

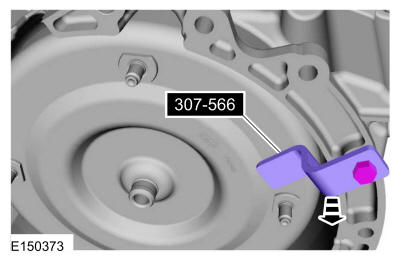

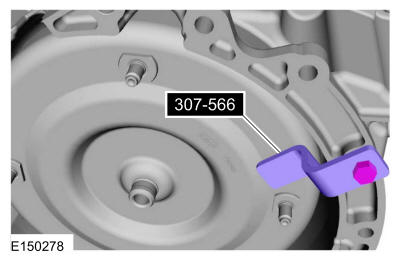

| 307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW | |
| 307-625 Fixture, Bench Mounting TKIT-2008ET-FLM TKIT-2008ET-ROW | |
| 307-627 Installer, Converter Seal TKIT-2008ET-FLM TKIT-2008ET-ROW | |
| 307-635 Protector, Turbine Shaft Seal TKIT-2008ET-FLM TKIT-2008ET-ROW | |

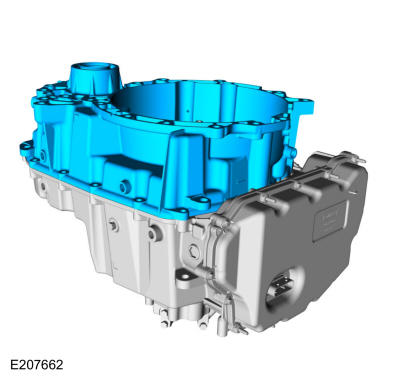

| 307-718 Installer, Axle Seal TKIT-2013B-FL TKIT-2013B-ROW | |
| 307-723 Installer, Turbine Seal TKIT-2014A-FL | |
| Puller |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Ultra Silicone Sealant TA-29 | - |
Repair
- 1.
Remove the transmission. REFER to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma Refer to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma
- 2.
For information on component views and base part numbers. REFER to: Transmission Description
- 3.NOTE: Use M10 x 1.5 x 25mm bolts to attach the special tool to the transmission case.

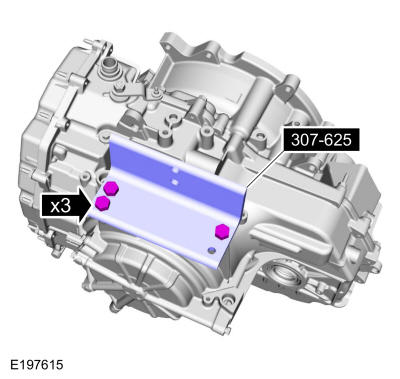

Install the special tool. Use Special Service Tool: 307-625 Fixture, Bench Mounting.
- 4.

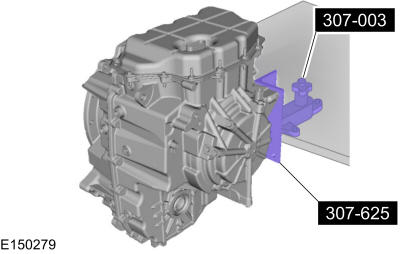

Mount the transmission to the bench-mounted holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission., 307-625 Fixture, Bench Mounting.
- 6.NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

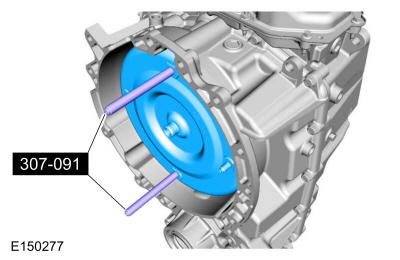

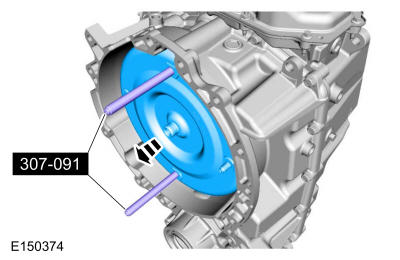

Using the special tools, remove the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.
- 11.NOTE: Note the location of the stud bolts for assembly.

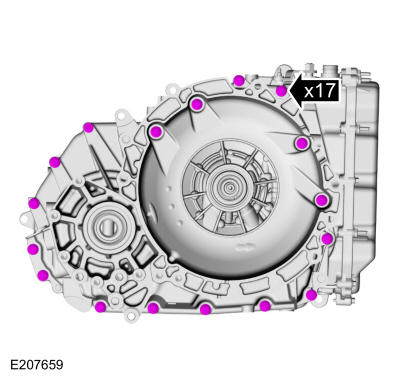

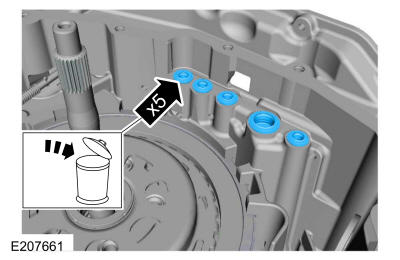

Remove the torque converter housing bolts.

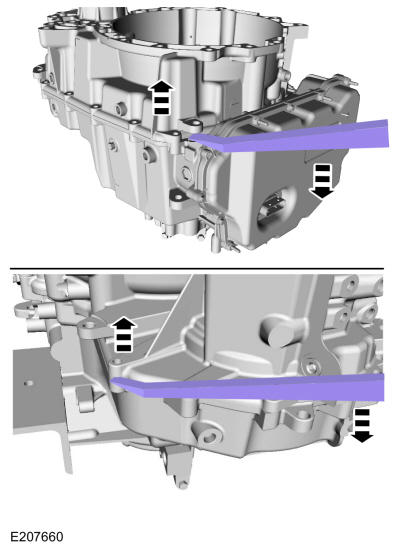

- 15.
-
NOTE: If the LH transmission case bushing or the LH halfshaft bushing surface shows signs of excessive wear or damage, a new LH transmission case bushing and a new LH halfshaft must be installed, or excessive noise or transmission failure can occur.
Clean and inspect the LH transmission case bushing and the bushing surface on the LH halfshaft for damage or excessive wear. If the LH transmission case bushing or the LH halfshaft shows signs of excessive wear or damage, install new components. REFER to: Transmission Case
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
Make sure that the mating faces are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation
-
- 16.
- Inspect the torque converter housing and the differential ring gear for damage or excessive wear. If the differential ring gear shows signs of excessive wear or damage replace the differential ring gear. REFER to: Transmission Case
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
Make sure that the mating faces are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation
- 17.

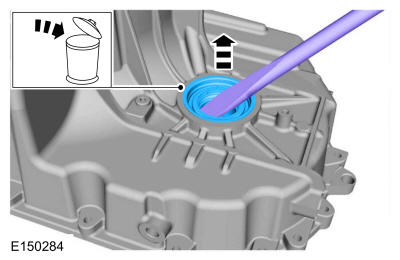

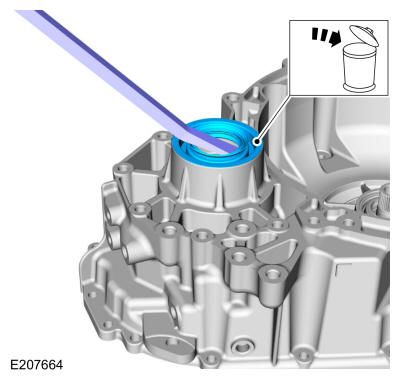

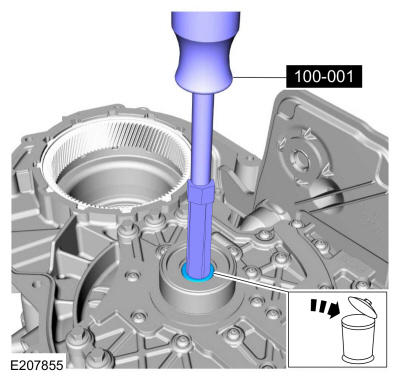

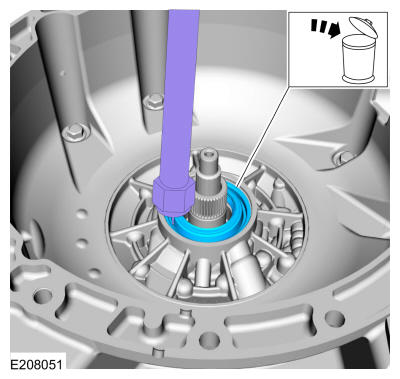

Assemble the special tools and remove and discard the input shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 303-D011 (D80L-100-G) Actuator Pin (Dia 3/16)., 303-D019 (D80L-100-Q) Collet, 3/4 to 7/8.
- 18.

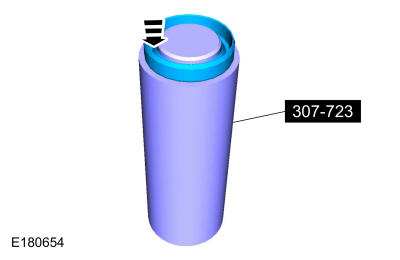

Install a new input shaft seal on the special tool. Use Special Service Tool: 307-723 Installer, Turbine Seal.
- 19.

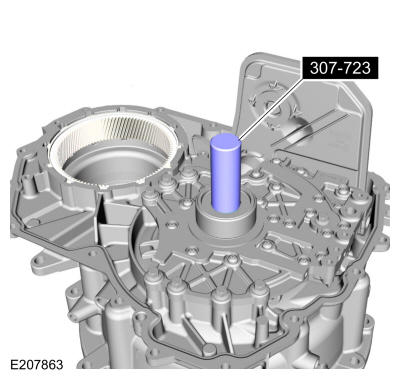

Using the special tool, install the input shaft seal. Use Special Service Tool: 307-723 Installer, Turbine Seal.
- 21.

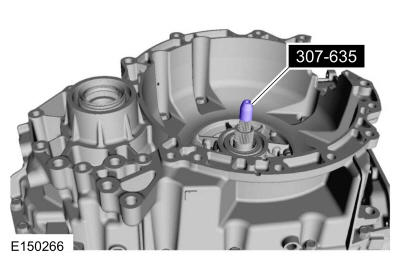

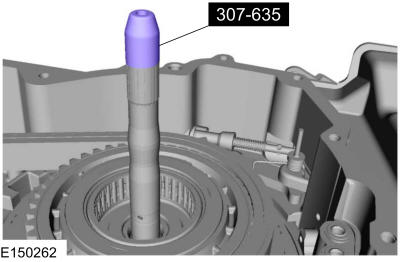

Install the special tool on the input shaft. Use Special Service Tool: 307-635 Protector, Turbine Shaft Seal.
- 22.

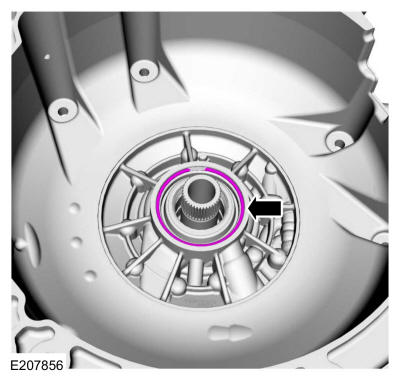

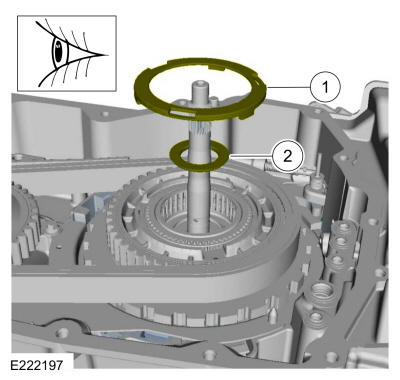

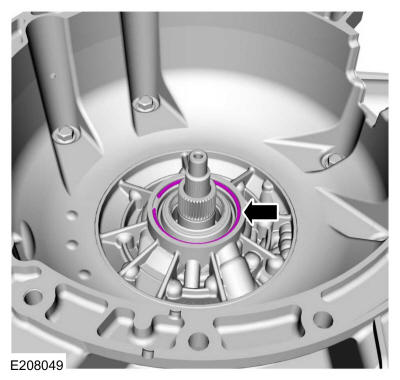

Verify the thrust washer and thrust bearing are correctly installed.- 1.
No. 13 thrust washer.
- 2.
No. 11 drive sprocket thrust bearing.
- 1.

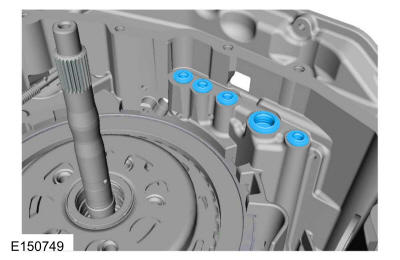

- 23.NOTE: Be sure the sealing surfaces of the torque converter housing and the transmission housing are free of oil before applying silicone.

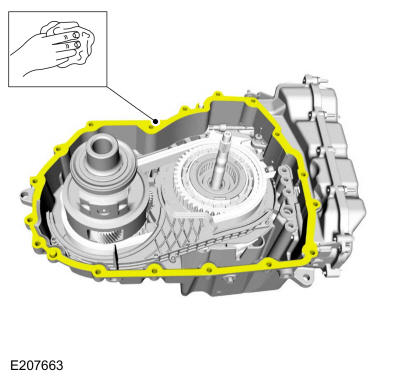

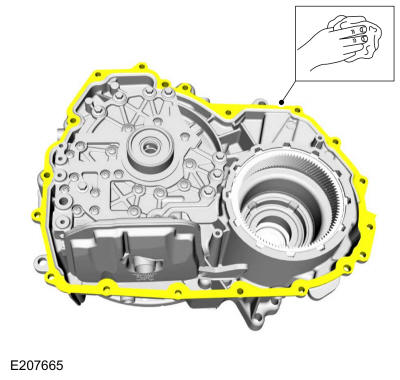

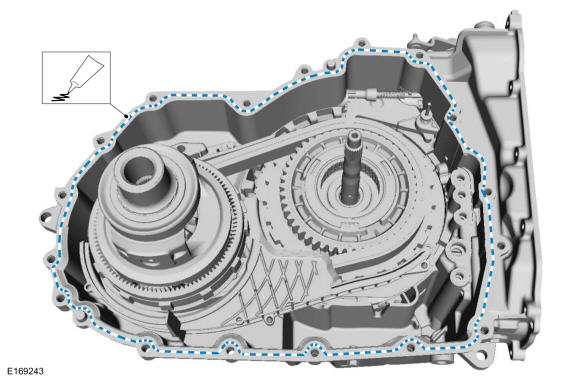

Apply silicone to the sealing surface of the transmission case.
Material
: Motorcraft® Ultra Silicone Sealant / TA-29
- 25.NOTE: Be sure the torque converter housing stud bolt is in the correct location as noted during disassembly.
Install the torque converter housing bolts and the torque converter housing stud bolt.
Torque
: 18 lb.ft (24 Nm)
- 27.

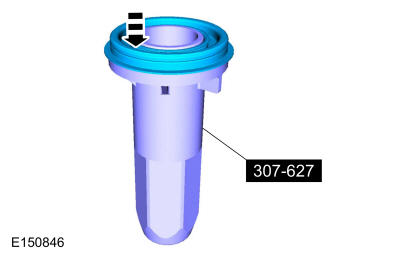

Install a new torque converter hub seal on the special tool. Use Special Service Tool: 307-627 Installer, Converter Seal.
- 28.

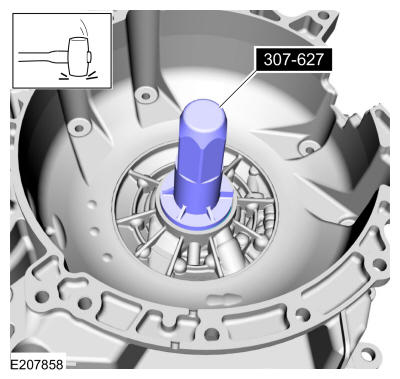

Using the special tool, install a new torque converter hub seal. Use Special Service Tool: 307-627 Installer, Converter Seal.
- 30.

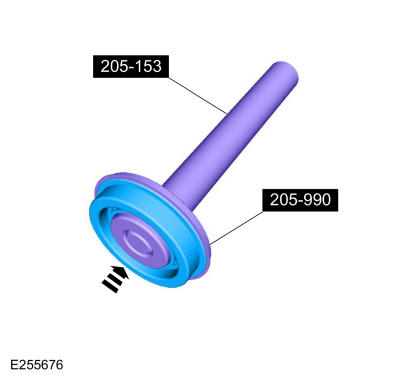

Assemble the special tools. Install a new LH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-990 Installer, Axle Seal.
- 31.

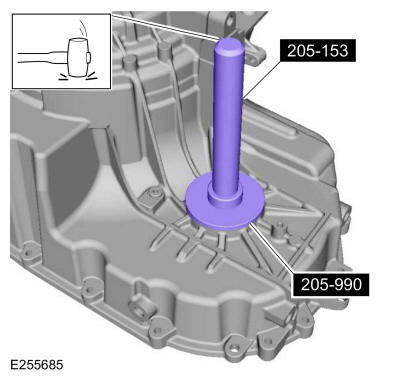

Using the special tools, install the new LH halfshaft seal in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-990 Installer, Axle Seal.
- 32.NOTE: FWD Vehicles.
Assemble the special tools and install a new RH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-990 Installer, Axle Seal.
- 33.NOTE: FWD Vehicles.

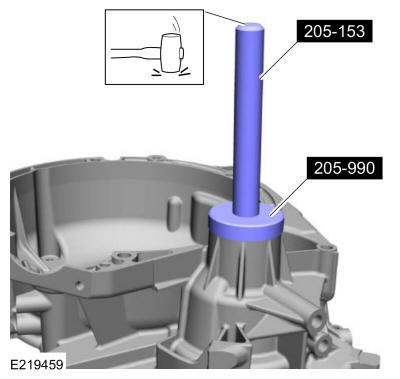

Using the special tools, install the new RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-990 Installer, Axle Seal.
- 34.NOTE: AWD Vehicles.NOTE: Special tool 307-718 is reversible, make sure it is assemble correctly for AWD vehicles.

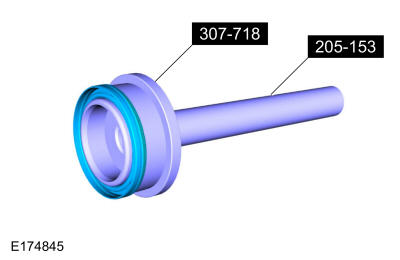

Assemble the special tools and install a new RH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
- 35.NOTE: AWD Vehicles.

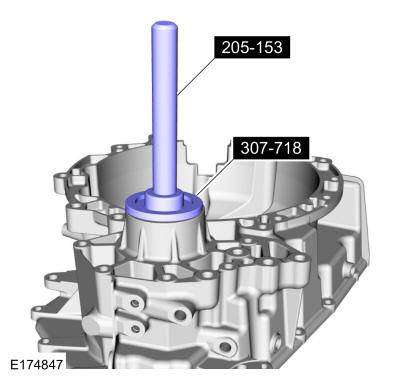

Using the special tools, install the new RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
- 36.NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.
Using the special tools, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.
- 38.
Remove the transmission from the bench-mounted holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission., 307-625 Fixture, Bench Mounting.
- 40.
Install the transmission. REFER to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma Refer to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma
