Main Control Cover: Removal

• 1.

  Remove the air cleaner. REFER to: Air Cleaner 1.6L Ecoboost Refer to: Air Cleaner 2.0 L Ecoboost Refer to: Air Cleaner 2.5 L Duratec

• 2.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

Refer to: Engine Front Undershield

• 3.


  NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

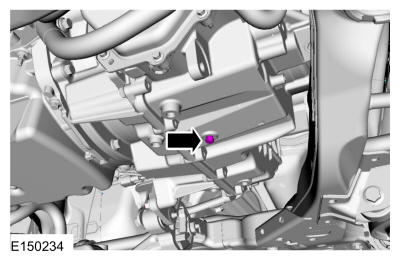

  Remove the transmission fluid pan drain plug and allow the transmission fluid to drain.

  • Install the drain plug.

    Torque

    : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1.6L

• 4.



  • 1.

    Detach the wiring harness retainers, detach the coolant hose retainer and position aside the wiring harness and coolant hose.

  • 2.

    Remove the nuts and the bracket.

Courtesy of FORD MOTOR COMPANY

• 5.

  Remove the bracket nut, loosen the clamps and remove the CAC tube.

Courtesy of FORD MOTOR COMPANY

2.0L/2.5L

• 6.

  Disconnect the wiring harness and the upper coolant hose retainers.

Courtesy of FORD MOTOR COMPANY

• 7.

  Loosen the clamp and position the CAC tube aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 8.

  Disconnect the electrical connector and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

• 9.


  NOTE: Note the location of the studbolts for installation.

  Remove the fasteners and the main control cover.

Courtesy of FORD MOTOR COMPANY
