Main Control Valve Body: Removal
- 1.
Remove the main control cover. REFER to: Main Control Cover
- 5.NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.
Remove the main control nut and the main control-to-transmission case bolts.
- 6.NOTE: The main control should be handled with care or damage to the main control may occur.NOTE: The main control-to-case stud is removed with the main control.

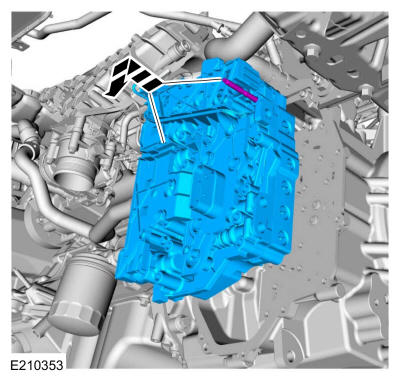

Remove the main control-to-case stud and the main control.
- 8.

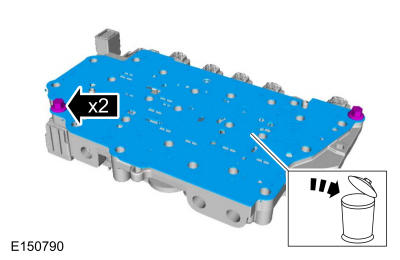

Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.
