Throttle Body: Removal
- 1.
- 1.

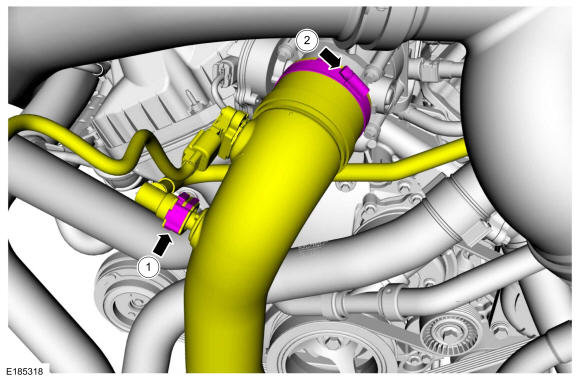

Disconnect the quick connect coupling, refer to Fuel System General Information .
- 2.
Loosen the clamp and disconnect the TB inlet pipe. Position the TB inlet pipe aside.
- 1.
- 2.NOTE: When disconnecting the TB electrical connector disengage the red locking tab on the TB electrical connector by sliding it to the rear of the TB electrical connector, away from the TB. Squeeze the TB electrical connector while removing.
Disconnect the TB electrical connector and disconnect the wire harness retainer from the TB.
