Main Control: Notes

Material

Item	Specification
Motorcraft ® MERCON ® LV Automatic Transmission FluidXT-10-QLVC (US); CXT-10-LV12 (Canada)	MERCON ® LV

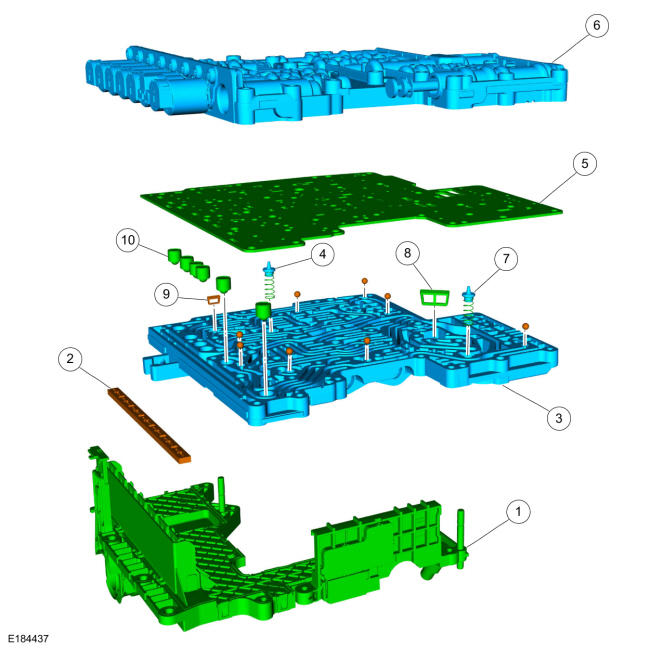

Main Control Assembly

Fig 1: Exploded View Of Main Control Assembly

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7G276	Molded leadframe
2	-	Foam strip seal
3	-	Main control valve body (upper)
4	7E195	Main control valve check ball (8 required)
5	7Z490	Main control valve body separator plate
6	-	Main control valve body (lower)
7	-	Main control valve
8	7H187	Main control filter
9	7B155	Transmission fluid filter
10	7J191	Transmission solenoid damper valve assembly

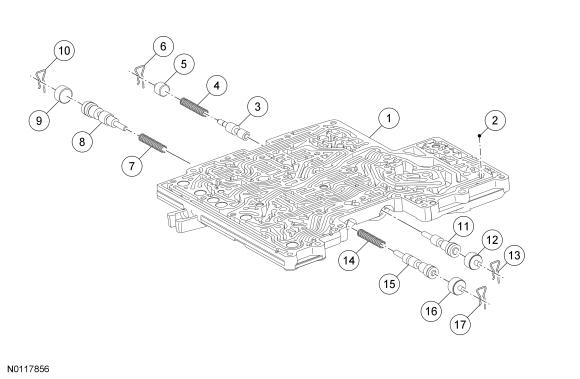

Main Control Upper Half

Fig 2: Exploded View Of Main Control Upper Half

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7A092	Main control valve assembly (ditch plate) (upper half)
2	7E195	Main control valve check ball (8 required)
3	-	Low/reverse (D2) clutch latch valve
4	-	Low/reverse (D2) clutch latch valve spring
5	-	Low/reverse (D2) clutch latch valve plug
6	7G007	Low/reverse (D2) clutch latch valve plug retaining clip
7	-	Direct (B) clutch regulator valve spring
8	-	Direct (B) clutch regulator valve
9	-	Direct (B) clutch regulator valve plug
10	7G007	Direct (B) clutch regulator valve plug retaining clip
11	-	Low/reverse (D1) clutch regulator valve
12	-	Low/reverse (D1) clutch regulator valve plug
13	7G007	Low/reverse (D1) clutch regulator valve plug retaining clip
14	-	Intermediate (C) clutch regulator valve spring
15	-	Intermediate (C) clutch regulator valve
16	-	Intermediate (C) clutch regulator valve plug
17	7G007	Intermediate (C) clutch regulator valve plug retaining clip

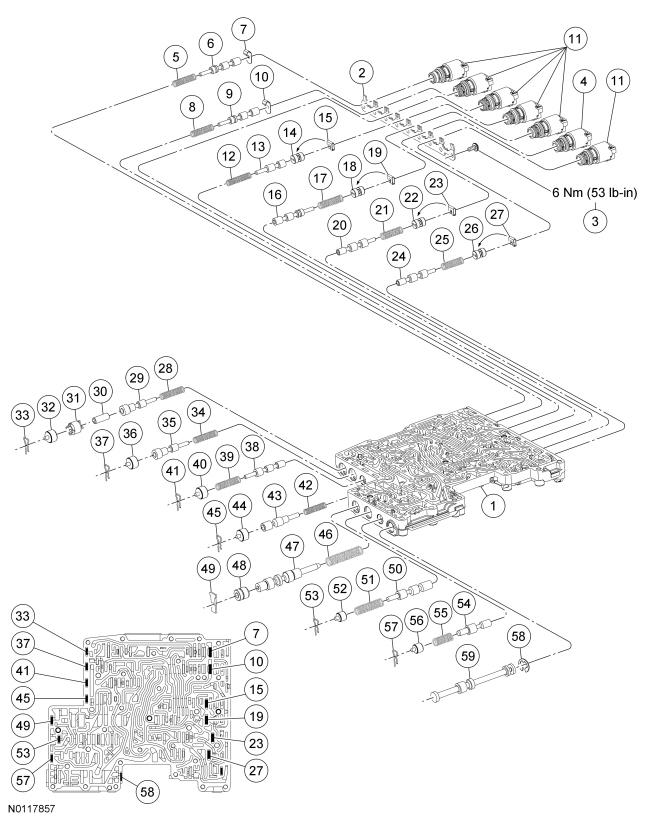

Main Control Lower Half

Fig 3: Exploded View Of Main Control Lower Half With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Main control valve assembly (lower half)
2	-	Transmission shift control solenoid hold-down bracket
3	-	Transmission shift control solenoid hold-down bracket bolt M5 x 0.80 x 12 (8 required)
4	7G484	Transmission ON/OFF shift solenoid
5	-	Forward (A) clutch latch valve spring
6	-	Forward (A) clutch latch valve
7	-	Forward (A) clutch latch valve retainer plate
8	-	Direct (B) clutch latch valve spring
9	-	Direct (B) clutch latch valve
10	7F194	Direct (B) clutch latch valve retainer plate
11	7G383	Transmission VFS (6 required)
12	-	Solenoid regulator valve spring
13	-	Solenoid regulator valve
14	-	Solenoid regulator valve plug
15	7G007	Solenoid regulator valve plug retainer
16	-	Low/reverse (D1) clutch latch valve
17	-	Low/reverse (D1) clutch latch valve spring
18	-	Low/reverse (D1) clutch latch valve plug
19	7G007	Low/reverse (D1) clutch latch valve plug retainer
20	-	Drive enable valve
21	-	Drive enable valve spring
22	-	Drive enable valve plug
23	7G007	Drive enable valve plug retainer
24	-	Solenoid multiplex valve
25	-	Solenoid multiplex valve spring
26	-	Solenoid multiplex valve plug
27	7G007	Solenoid multiplex valve plug retainer
28	-	Forward (A) clutch regulator valve spring
29	-	Forward (A) clutch regulator valve
30	-	Forward (A) clutch regulator valve sleeve
31	-	Forward (A) clutch regulator valve return plug
32	-	Forward (A) clutch regulator valve plug
33	7G077	Forward (A) clutch regulator valve plug retaining clip
34	-	Overdrive (E) clutch regulator valve spring
35	-	Overdrive (E) clutch regulator valve
36	-	Overdrive (E) clutch regulator valve plug
37	7G007	Overdrive (E) clutch regulator valve plug retaining clip
38	-	Overdrive (E) clutch latch valve
39	-	Overdrive (E) clutch latch valve spring
40	-	Overdrive (E) clutch latch valve plug
41	7G007	Overdrive (E) clutch latch valve plug retaining clip
42	-	Bypass clutch control regulator valve spring
43	-	Bypass clutch control regulator valve
44	-	Bypass clutch control regulator valve plug
45	7G007	Bypass clutch control regulator valve plug retaining clip
46	-	Main regulator valve spring
47	-	Main regulator valve
48	-	Main regulator valve sleeve
49	7G007	Main regulator valve clip
50	-	Converter release regulator valve
51	-	Converter release regulator valve spring
52	-	Converter release regulator valve plug
53	7G007	Converter release regulator valve plug retaining clip
54	-	Lubrication control valve
55	-	Lubrication control valve spring
56	-	Lubrication control valve plug
57	7G007	Lubrication control valve plug retaining clip
58	W527007-S-S	Retaining ring
59	-	Transmission control manual valve

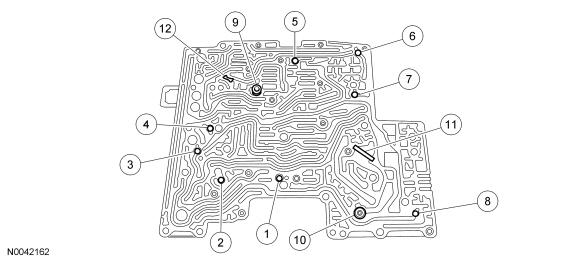

Check Ball Location

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Reverse/drive control check ball
2	Shift solenoid control check ball
3	Intermediate clutch exhaust control check ball
4	Direct clutch exhaust control check ball
5	Low/reverse clutch exhaust control check ball
6	Forward clutch exhaust control check ball
7	Overdrive clutch exhaust control check ball
8	Reverse exhaust control check ball
9	Clutch exhaust valve
10	Converter drain back valve
11	Large filter screen
12	Small filter screen

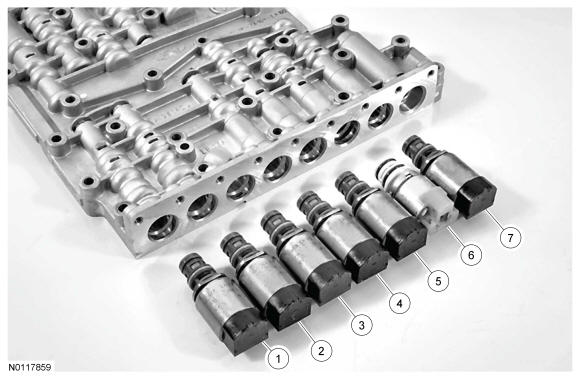

Shift Solenoid Location

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7G383	SSA, Forward (1, 2, 3, 4) clutch, normally low VFS (brown nozzle).
2	7G383	SSB, Direct (3, 5, R) clutch, normally high VFS (black nozzle).
3	7G383	SSC, Intermediate (2, 6) clutch, normally low VFS (brown nozzle).
4	7G383	LPC solenoid, normally high VFS (black nozzle).
5	7G383	SSD, low/reverse/overdrive clutch, normally high VFS (black nozzle).
6	7G484	SSE, normally off ON/OFF solenoid.
7	7G383	TCC solenoid, normally low VFS (brown nozzle).
