Component Locations

3.5L EcoBoost

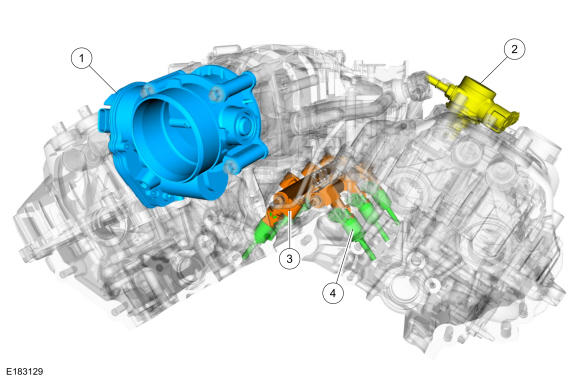

GFD135679Courtesy of FORD MOTOR COMPANY
Item Description
1 TB
2 Fuel injection pump
3 Fuel rail
4 Fuel injector

FPCM

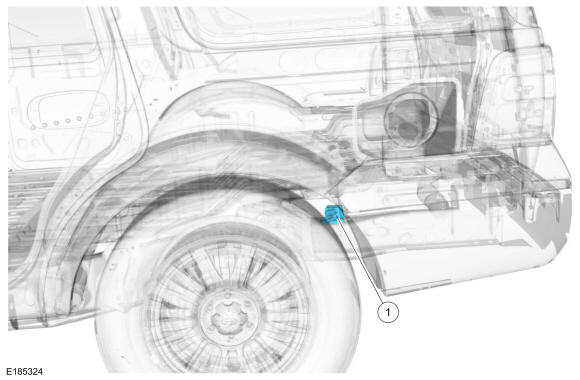

GFD135680Courtesy of FORD MOTOR COMPANY
Item Description
1 FPCM
