Selector Lever Mechanism: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

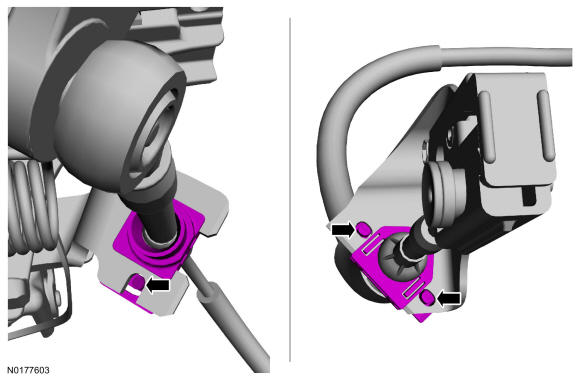

    Prior to replacing the selector lever mechanism for a no start or high shift effort concern, verify the selector lever cable to bracket clip is fully seated at the transmission and selector lever assembly. Unseated cables can cause selector lever cable binding and prevent the manual shaft from completely returning to the P (Park) position.
GFD136437Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: To access the top selector lever mechanism bolts, position the selector lever in NEUTRAL before removing the selector lever.

    Remove the selector lever. Refer to Selector Lever - Column Shift .

  1. 3.

    Disconnect the selector lever cable from the selector lever mechanism.
GFD136453Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the BSIA electrical connector.
GFD136454Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the bolts and the selector lever mechanism.
    • To install, tighten to 10 Nm (89 lb-in).
GFD136455Courtesy of FORD MOTOR COMPANY
