Driver Multi-Contour Seat Module [SCMG]: Installation

1.

To install, reverse the removal procedure.

2.

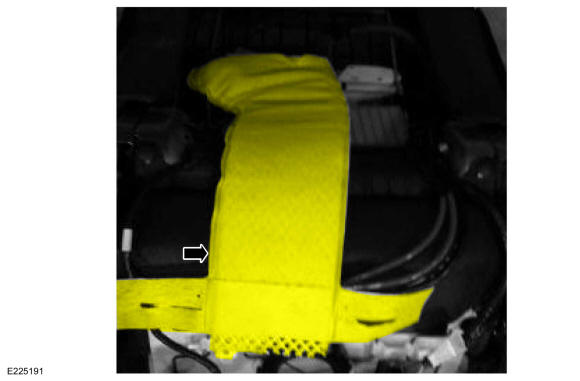

If equipped. Position the blower motor snorkel as shown in illustration.

GFD125539

Courtesy of FORD MOTOR COMPANY

3.

NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the SCMG following the on-screen instructions.
