All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the LH load space trim panel. REFER to: Loadspace Trim Panel . REFER to: Loadspace Trim Panel - Police . REFER to: Loadspace Trim Panel - Vehicles With: Inflatable Seatbelts .

2.

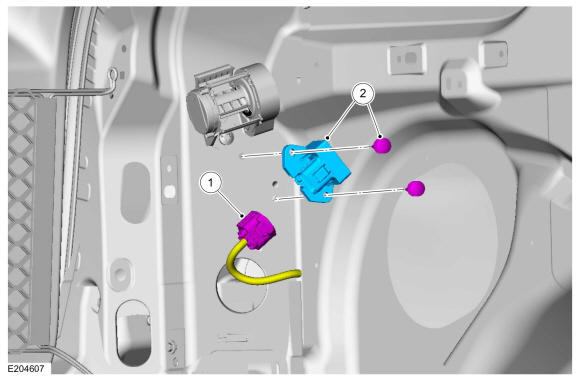

1. 1.

  Disconnect the AWD module electrical connector.
1. 2.

  Remove the AWD module push pin fasteners and the AWD module.

GFD124536

Courtesy of FORD MOTOR COMPANY
