Transfer Case Control Module (TCCM): Removal

  1. 1.

    Remove the CJB cover.

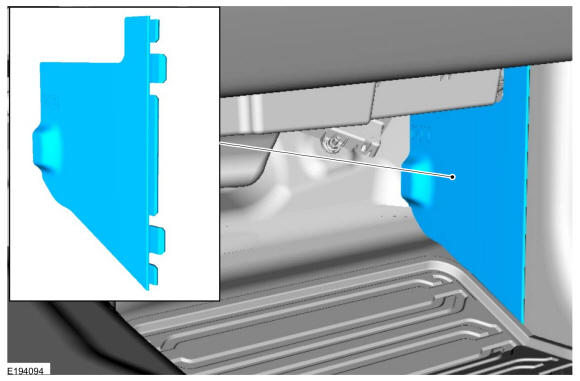

GFD41940Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove and disconnect the lower access panel.

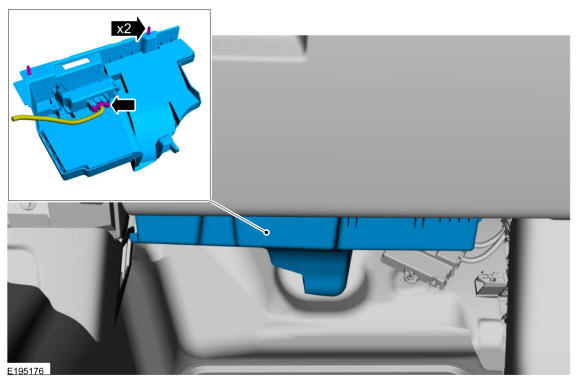

GFD41941Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

    Loosen the LHTCCM nut and remove the RHTCCM nut.

    Torque: 62 lb.in (7 Nm)

GFD41942Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the electrical connectors and remove the TCCM.

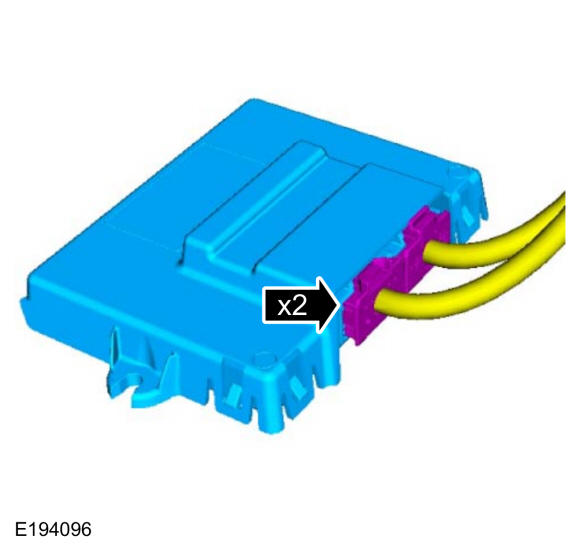

GFD41943Courtesy of FORD MOTOR COMPANY
