Repair procedures: Installation

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Install the drive belt.
1. Install the drive belt (C).
2. Adjust the tension by turning the tension adjusting bolt (B) clockwise.
  Belt tension

  New belt:

  637.4 ~ 735.5 N (65 ~ 75 kgf, 143.3 ~ 165.3 lbf)

  Used belt:

  441.3 ~ 539.4 N (45 ~ 55 kgf, 99.2 ~ 121.3 lbf)
3. Tighten the alternator mounting bolts (A) with the specified torque.
  Tightening torque

  M10 bolt:

  29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

  M8 bolt:

  21.6 ~ 32.4 N.m (2.2 ~ 3.3 kgf.m, 15.9 ~ 23.9 lb-ft)

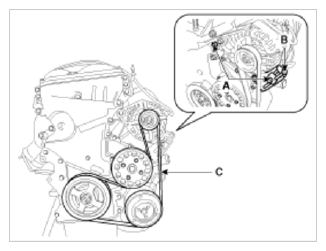

  Fig 1: Identifying Drive Belt Alternator Mounting Bolts
  Courtesy of HYUNDAI MOTOR AMERICA
