Pressure [kPa (kgf/cm2
, psi)]
Output Voltage (V)
20.0 (0.20, 2.9)
0.79
46.7 (0.47, 6.77)
1.84
101.3 (1.03, 14.7)
4.0

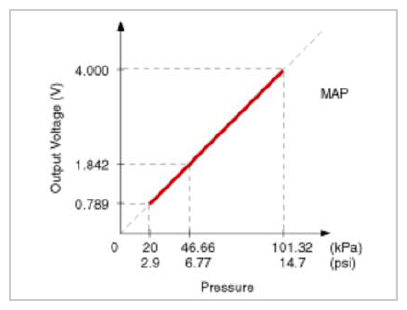

Fig 1: Engine Control Pressure Versus Output Voltage Graph
