Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

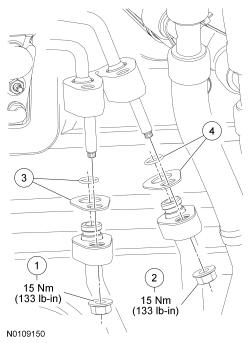

Underbody Line Connections
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Auxiliary evaporator inlet line fitting nut |
| 2 | W520413 | Auxiliary evaporator outlet line fitting nut |
| 3 | 19B596 | O-ring seal and gasket seal kit |
| 4 | 19B596 | O-ring seal and gasket seal kit |

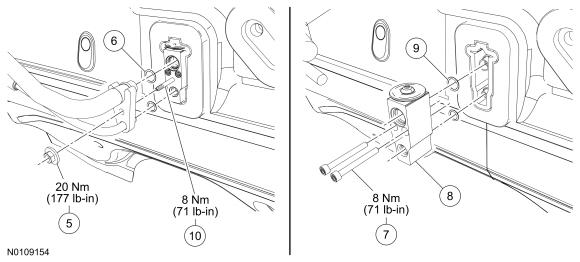

Thermostatic Expansion Valve (TXV) Connections
| Item | Part Number | Description |
|---|---|---|
| 5 | W707142 | Thermostatic Expansion Valve (TXV) fitting nut |
| 6 | 19E889 | TXV manifold and tube O-ring seal (2 required) |
| 7 | 7A711 | TXV bolt (2 required) |
| 8 | 19849 | TXV |
| 9 | 19E889 | Evaporator core O-ring seal (2 required) |
| 10 | W714282 | TXV fitting stud |
