Removal And Installation
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

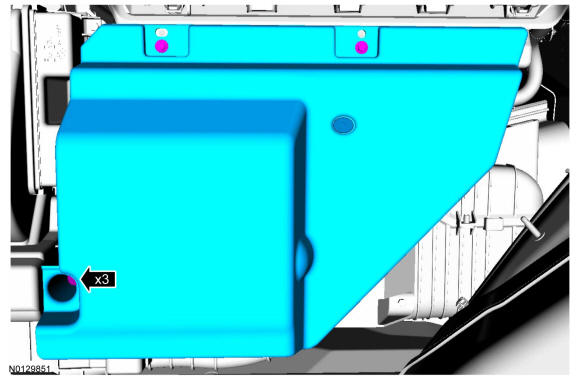

Remove the 3 RH lower instrument panel insulator screws and remove the insulator.
Courtesy of FORD MOTOR COMPANY
|
- 2.
Remove the blower motor speed control.
- 1.
Disconnect the blower motor speed control electrical connector.
- 2.
Remove the 2 blower motor speed control screws.
Courtesy of FORD MOTOR COMPANY
|
- 3.
To install, reverse the removal procedure.
