Steering Wheel: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD shown, RHD similar.

1.

Remove the driver airbag module. Refer to: Driver Airbag .

2.

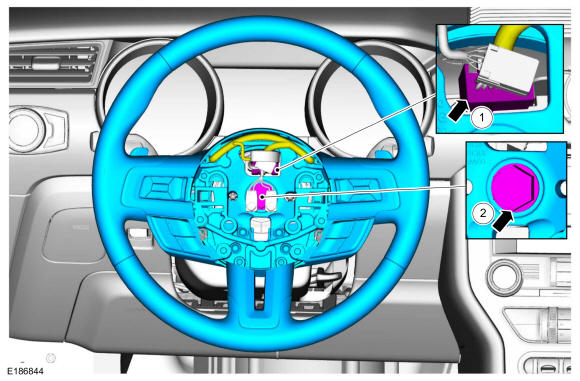

1. 1.

  Disconnect the steering wheel switches electrical connector.
1. 2.

  Remove the steering wheel bolt and the steering wheel.
  Torque: 35 lb.ft (47.5 Nm)

GFD128721

Courtesy of FORD MOTOR COMPANY

3.

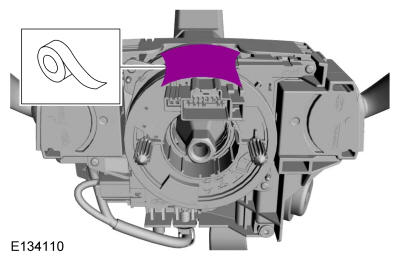

Tape the clockspring rotor to the outer housing to keep it from rotating.

GFD128722

Courtesy of FORD MOTOR COMPANY
