Selector Lever Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.

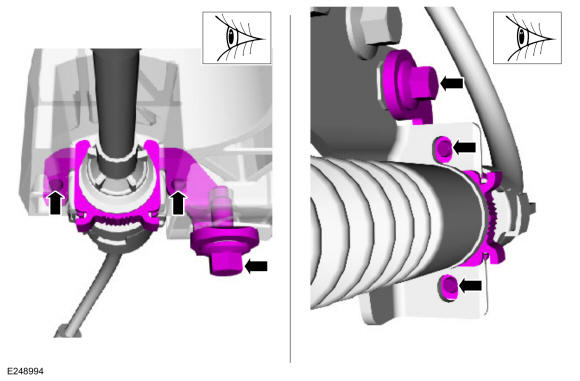

  1. 1.

    Prior to replacing the selector lever assembly for a no start or a high shift effort concern, verify the selector lever cable-to-bracket clips are fully seated at the transmission and selector lever assembly. An unseated cable can cause selector lever cable binding and prevent the manual shaft from completely returning to the P position.

    Torque: 62 lb.in (7 Nm)

GFD131588Courtesy of FORD MOTOR COMPANY

  1. 2.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 3.

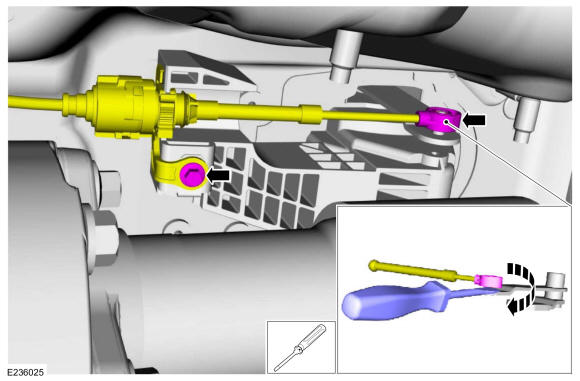

    NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

    Using a screwdriver, pry the selector lever cable end from the selector lever and remove the selector lever cable retainer bolt.

    Torque: 62 lb.in (7 Nm)

GFD131589Courtesy of FORD MOTOR COMPANY

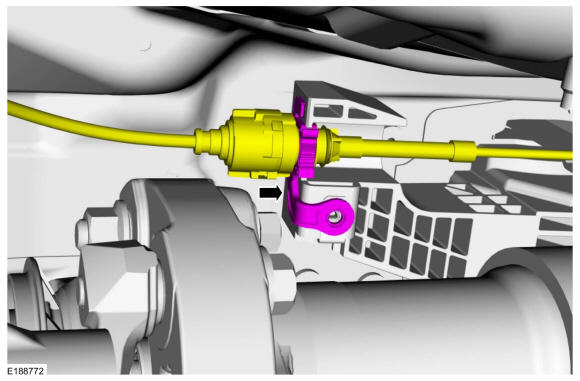

  1. 4.

    Disconnect the selector lever cable from the selector lever assembly.
GFD131590Courtesy of FORD MOTOR COMPANY

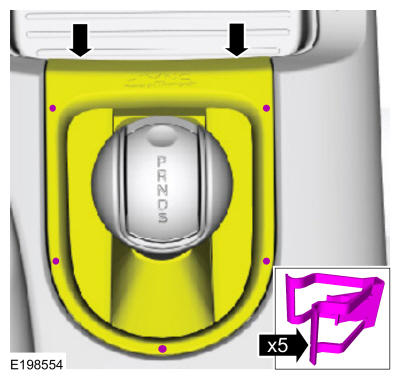

  1. 5.

    Starting from the front corners, carefully pry up the bezel and position it out of the way.
GFD131591Courtesy of FORD MOTOR COMPANY

  1. 6.

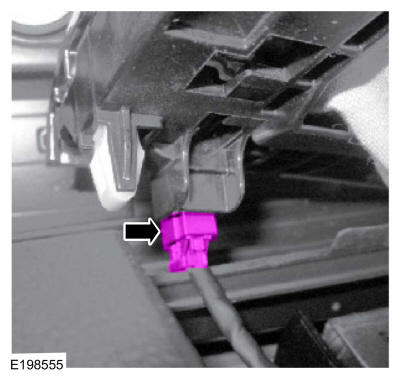

    Disconnect the electrical connector.
GFD131592Courtesy of FORD MOTOR COMPANY

  1. 7.

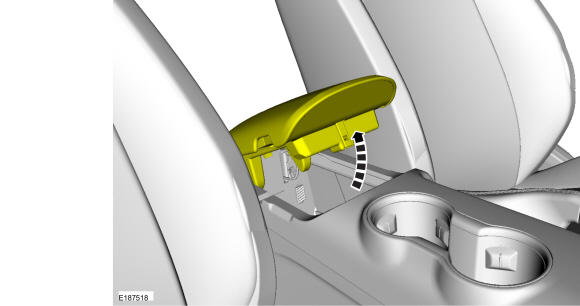

    Open the floor console lid.
GFD131593Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: If necessary, position the seat rearward.

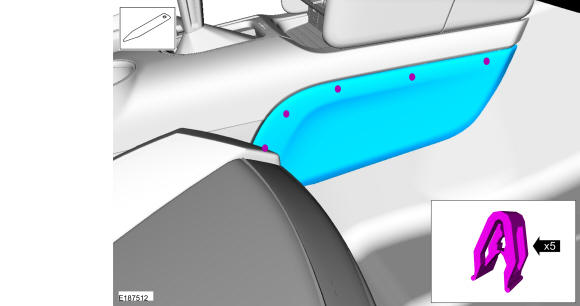

    Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

GFD131594Courtesy of FORD MOTOR COMPANY

  1. 9.

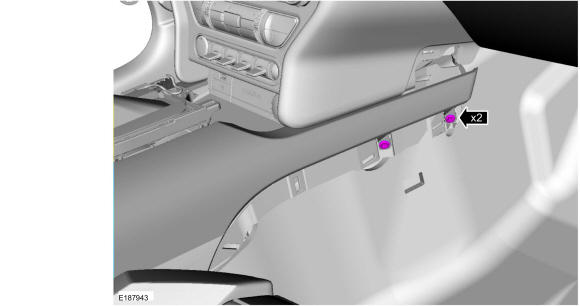

    Remove the RH side front screws.
GFD131595Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: If necessary, position the seat rearward.

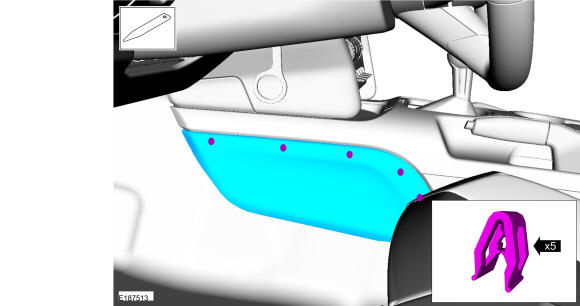

    Release the clips and remove the LH side trim panel. Use the General Equipment: Interior Trim Remover

GFD131596Courtesy of FORD MOTOR COMPANY

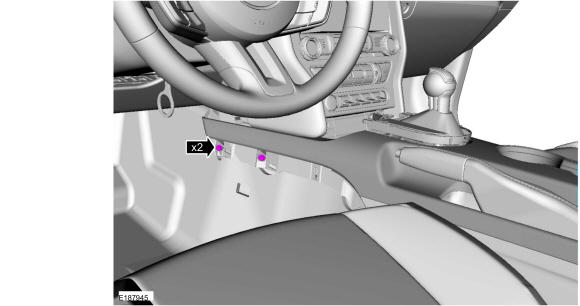

  1. 11.

    Remove the LH side front screws.
GFD131597Courtesy of FORD MOTOR COMPANY

  1. 12.

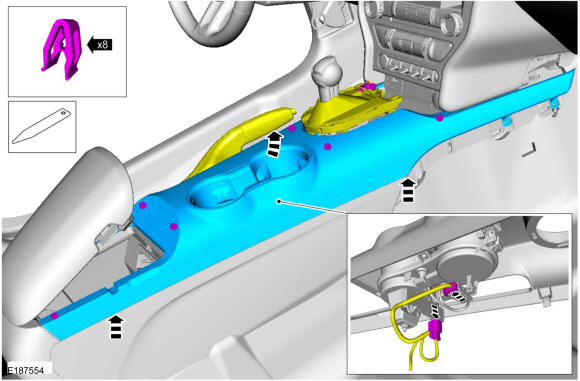

    Release the clips, position the selector lever bezel and boot aside and remove the floor console upper trim panel.
    • Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
GFD131598Courtesy of FORD MOTOR COMPANY

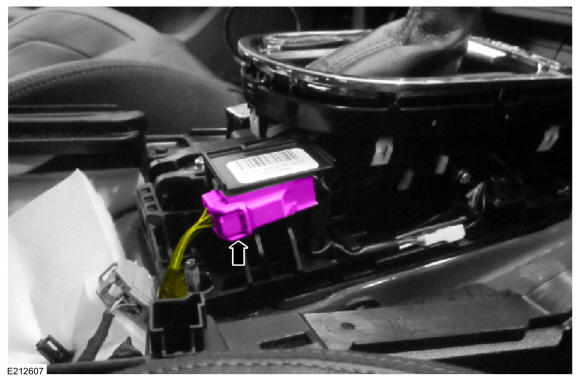

  1. 13.

    Disconnect the selector lever assembly electrical connector.
GFD131599Courtesy of FORD MOTOR COMPANY

  1. 14.

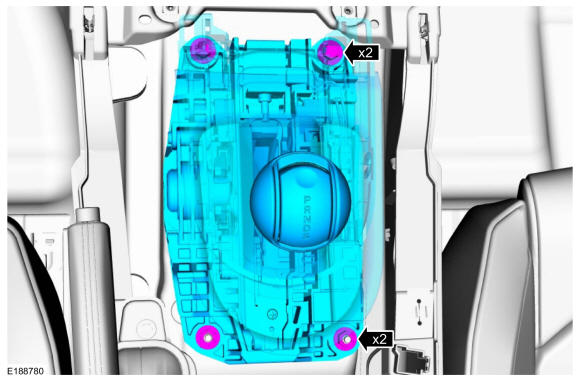

    Remove the bolts, the nuts and the selector lever assembly.

    Torque: 80 lb.in (9 Nm)

GFD131600Courtesy of FORD MOTOR COMPANY
